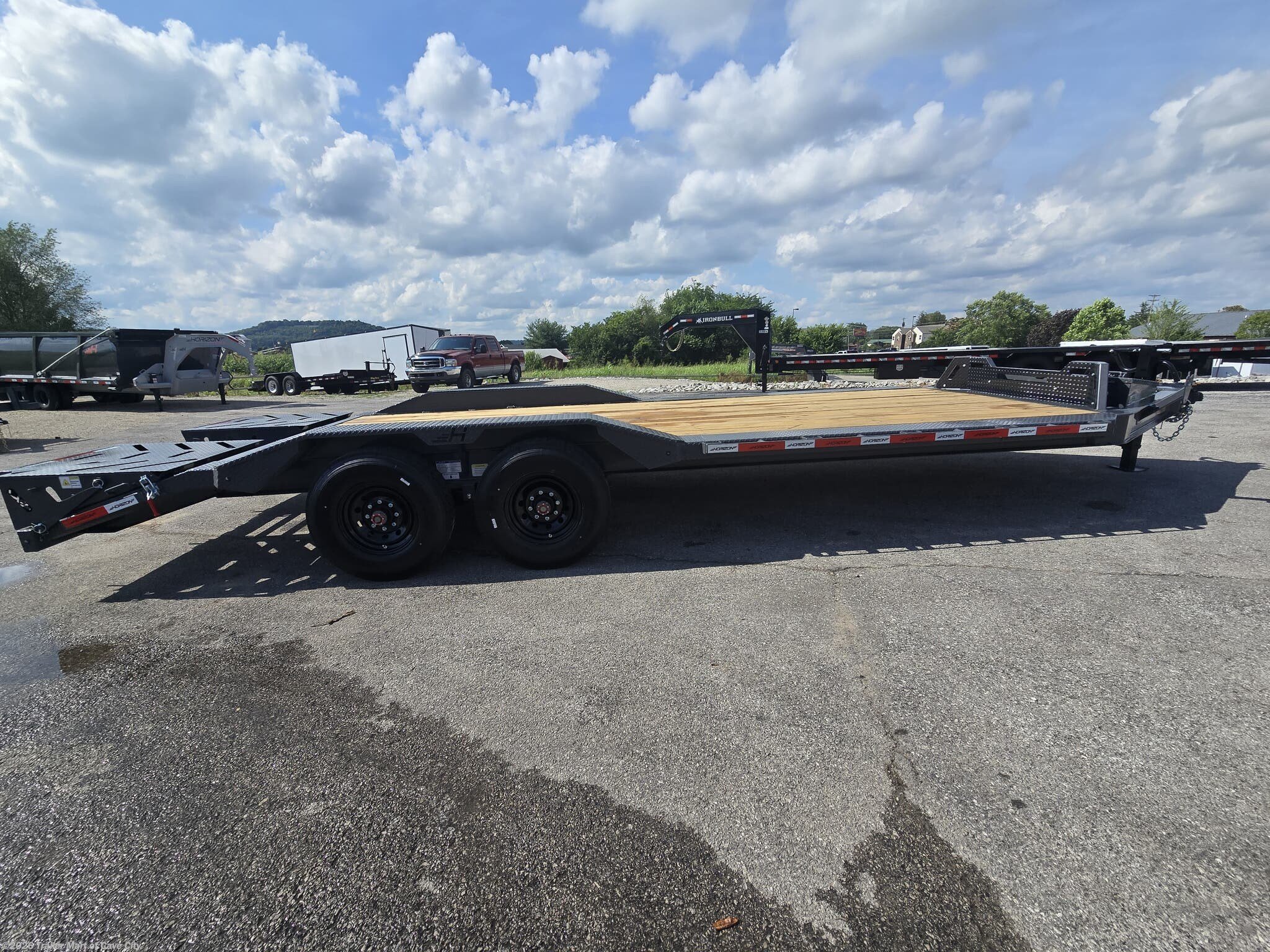

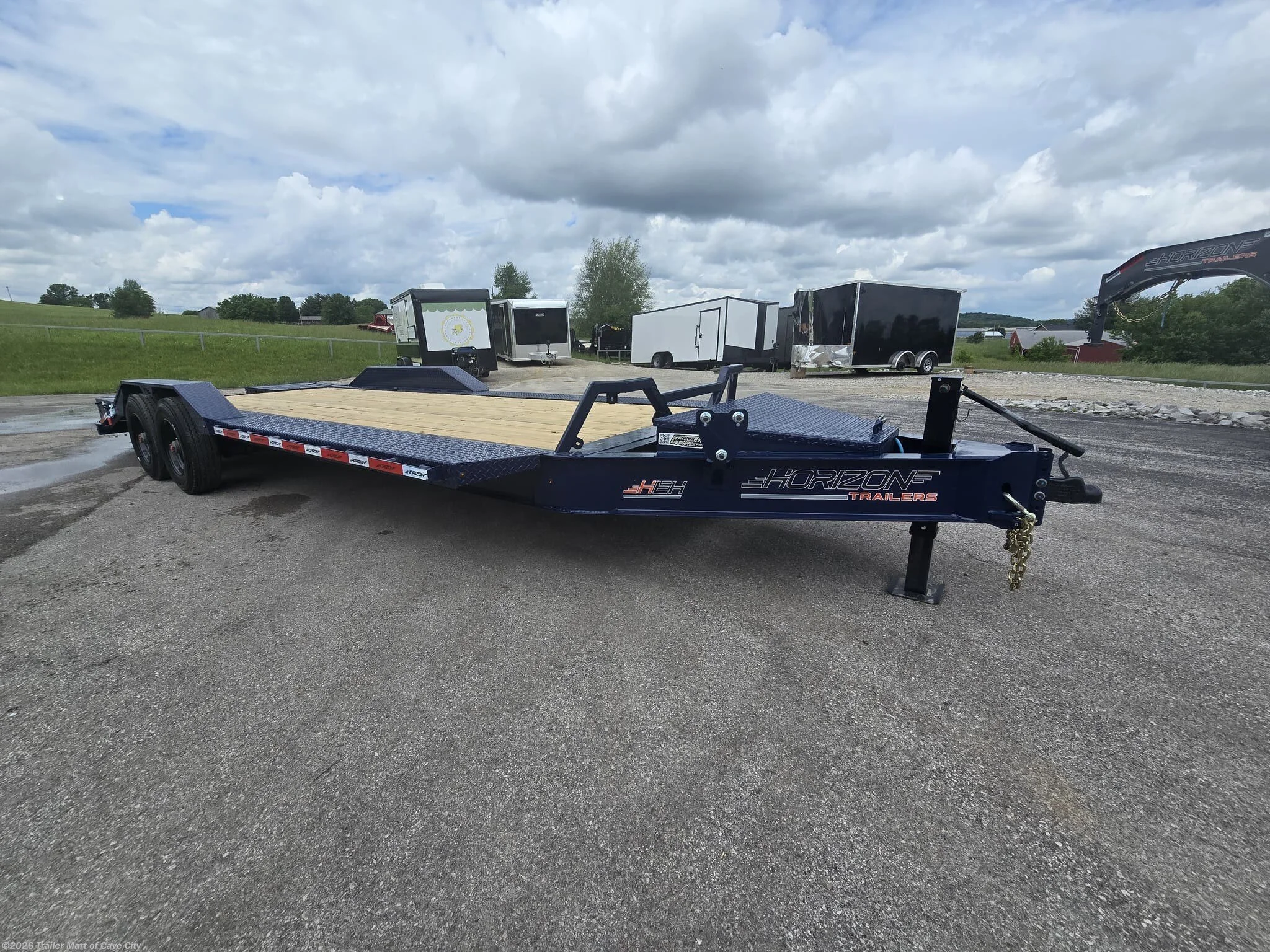

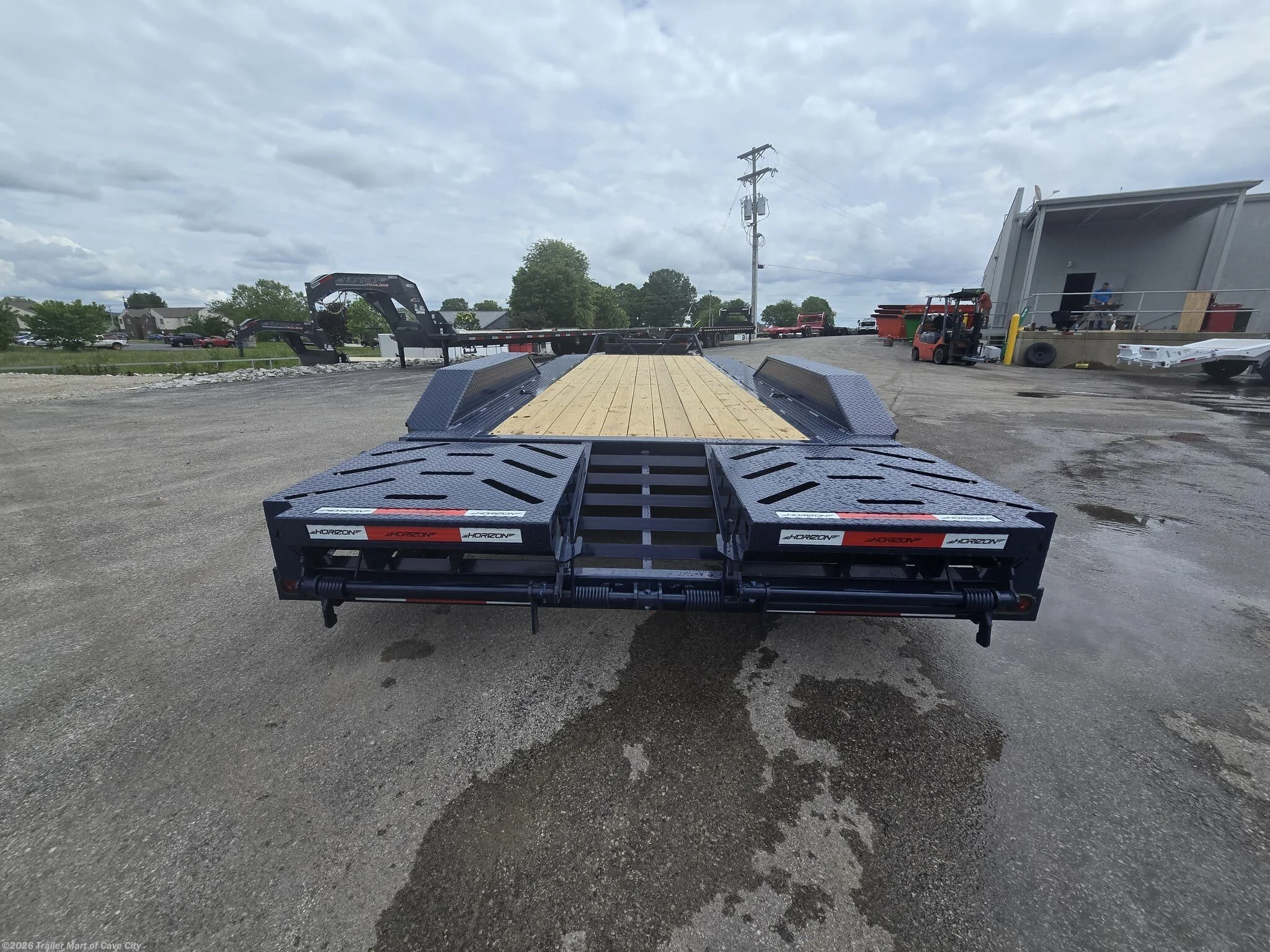

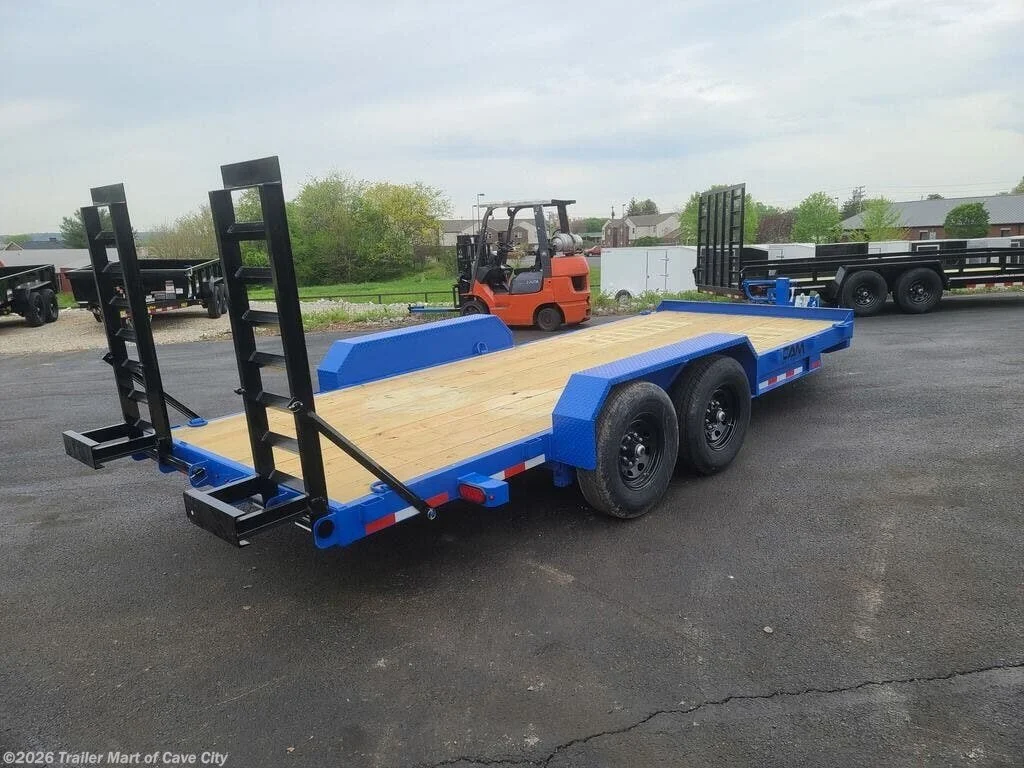

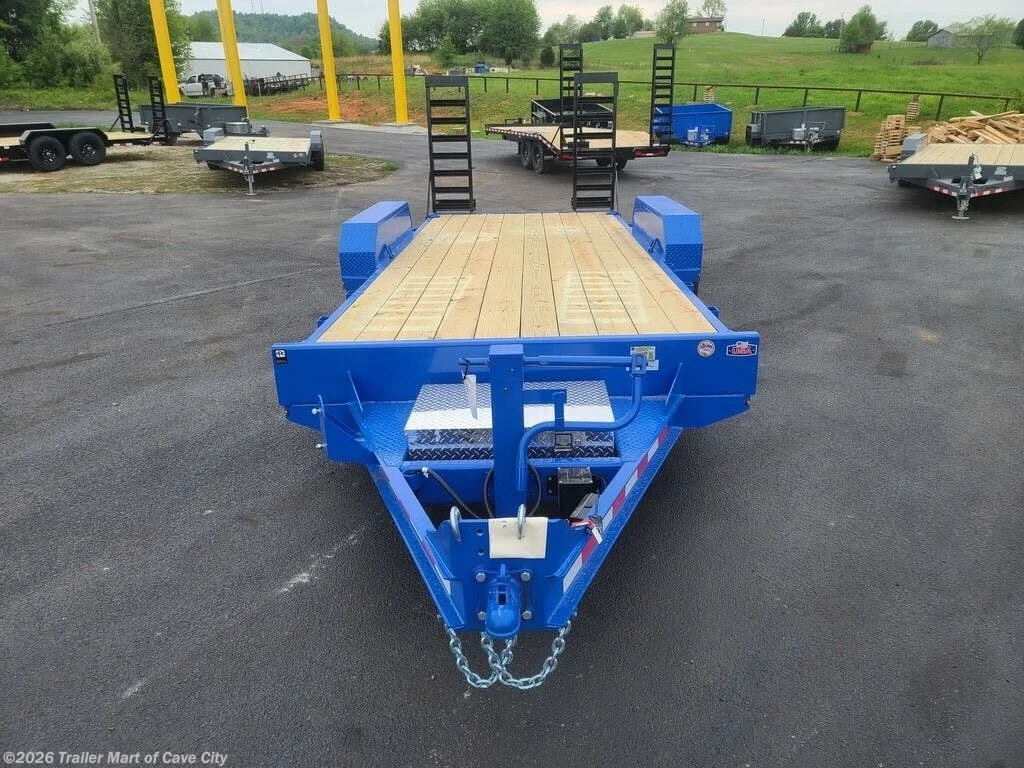

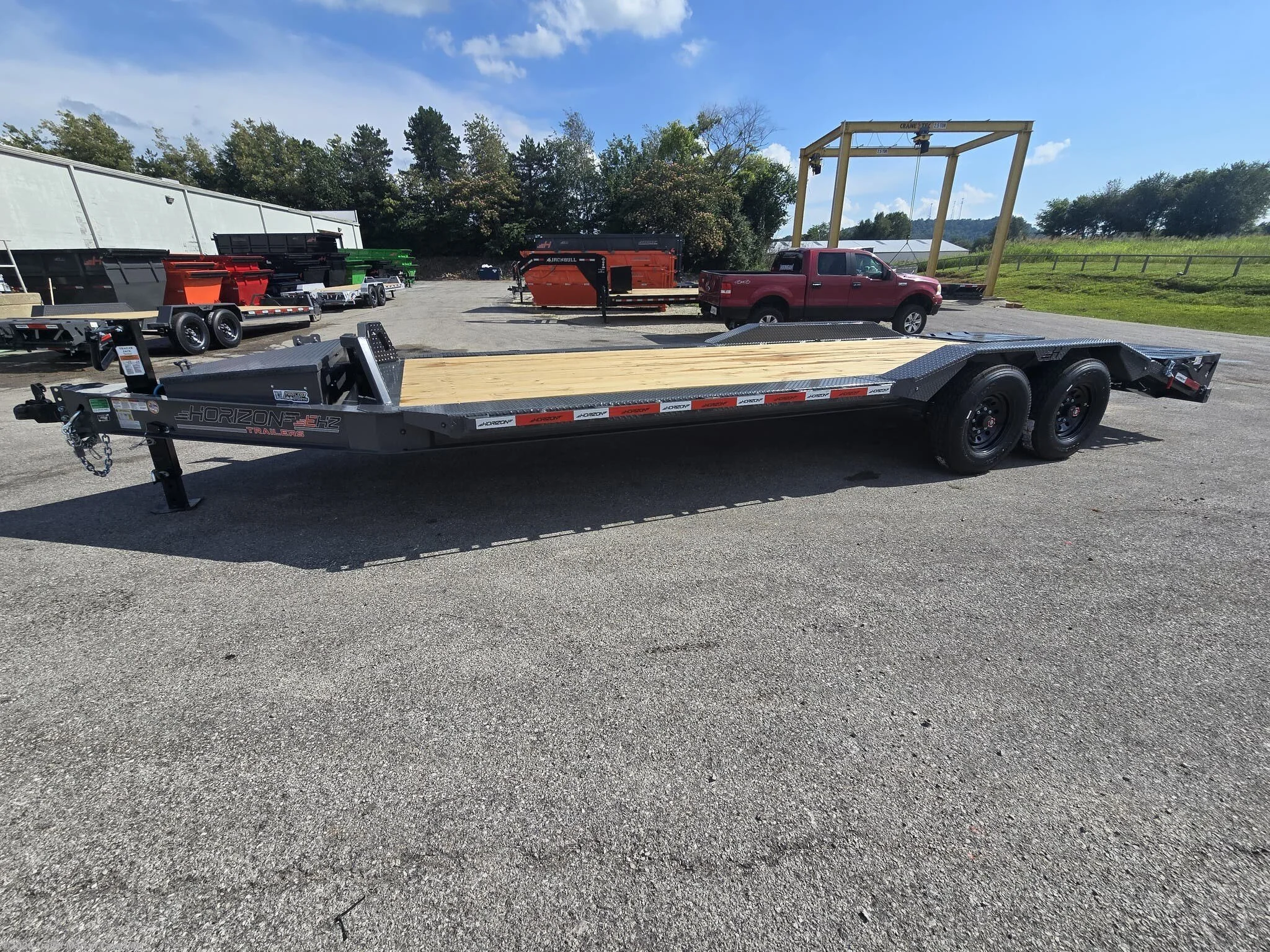

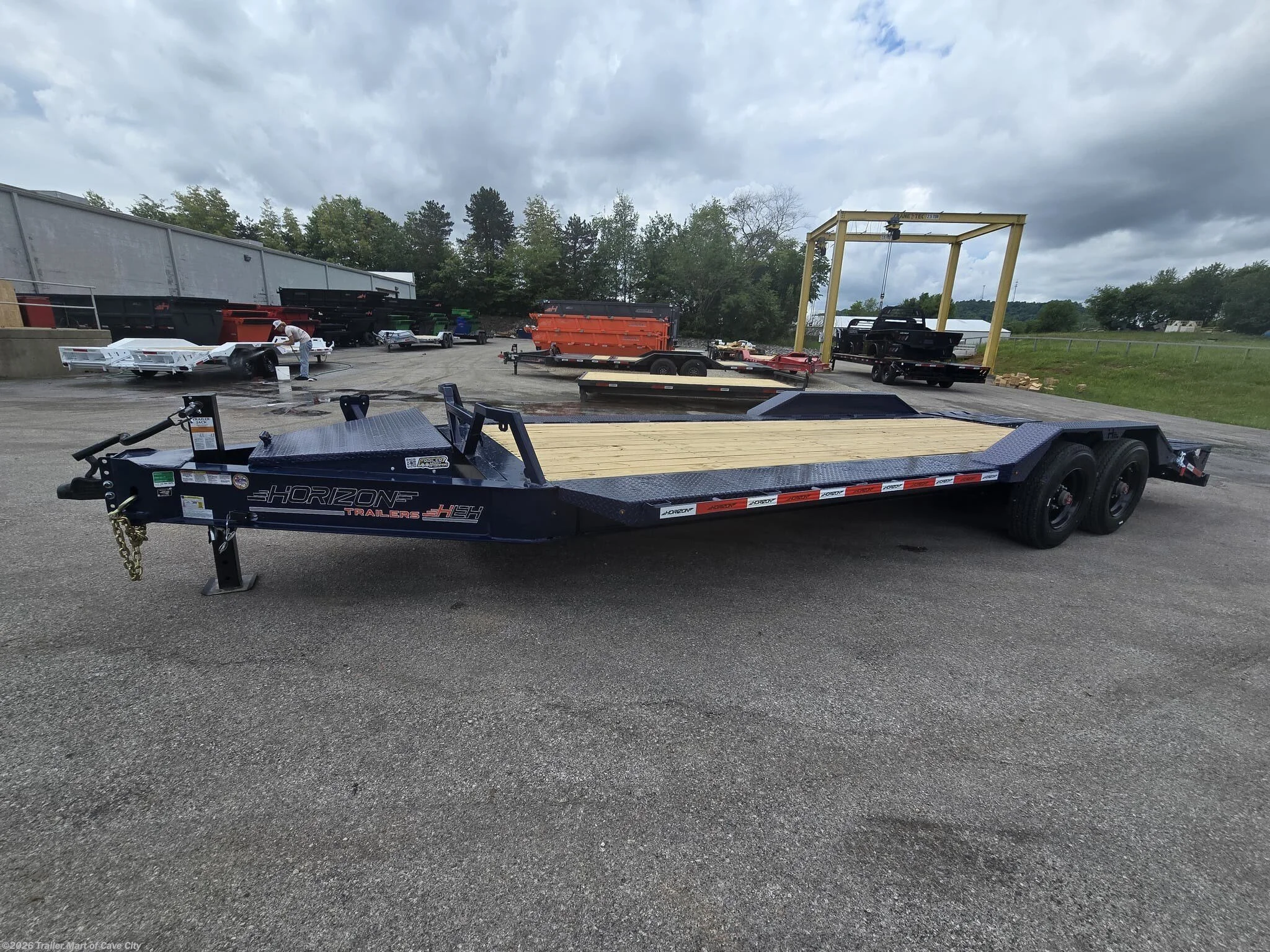

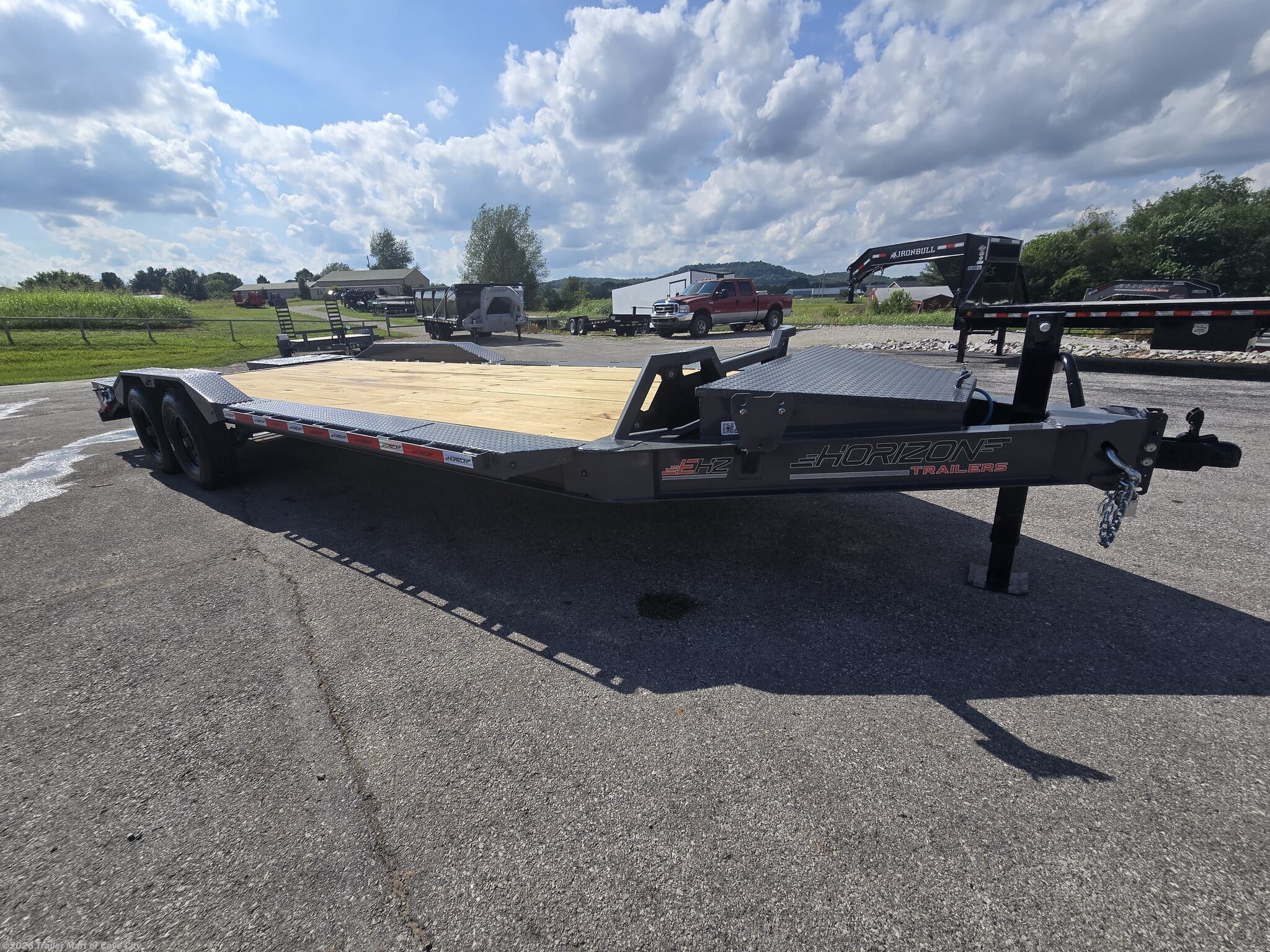

2025 Horizon Trailers EHZ 22' Equipment Trailer

Description:
TRAILER SPECS
LENGTH: 22'
DECK WIDTH: 102"
DECK HEIGHT: 25"
WEIGHT RATINGS
GAWR: 8,000 LBS
GVWR: 17,000LBS

FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
STYLE: 2 TONE COLORS AVAILABLE, CHASSIS / DUMP

WARRANTY
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY
TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY

TONGUE
TYPE: 8" I-BEAM (13 LBS/FT)
LENGTH: 60"
SPARE: WELD ON SPARE TIRE MOUNT

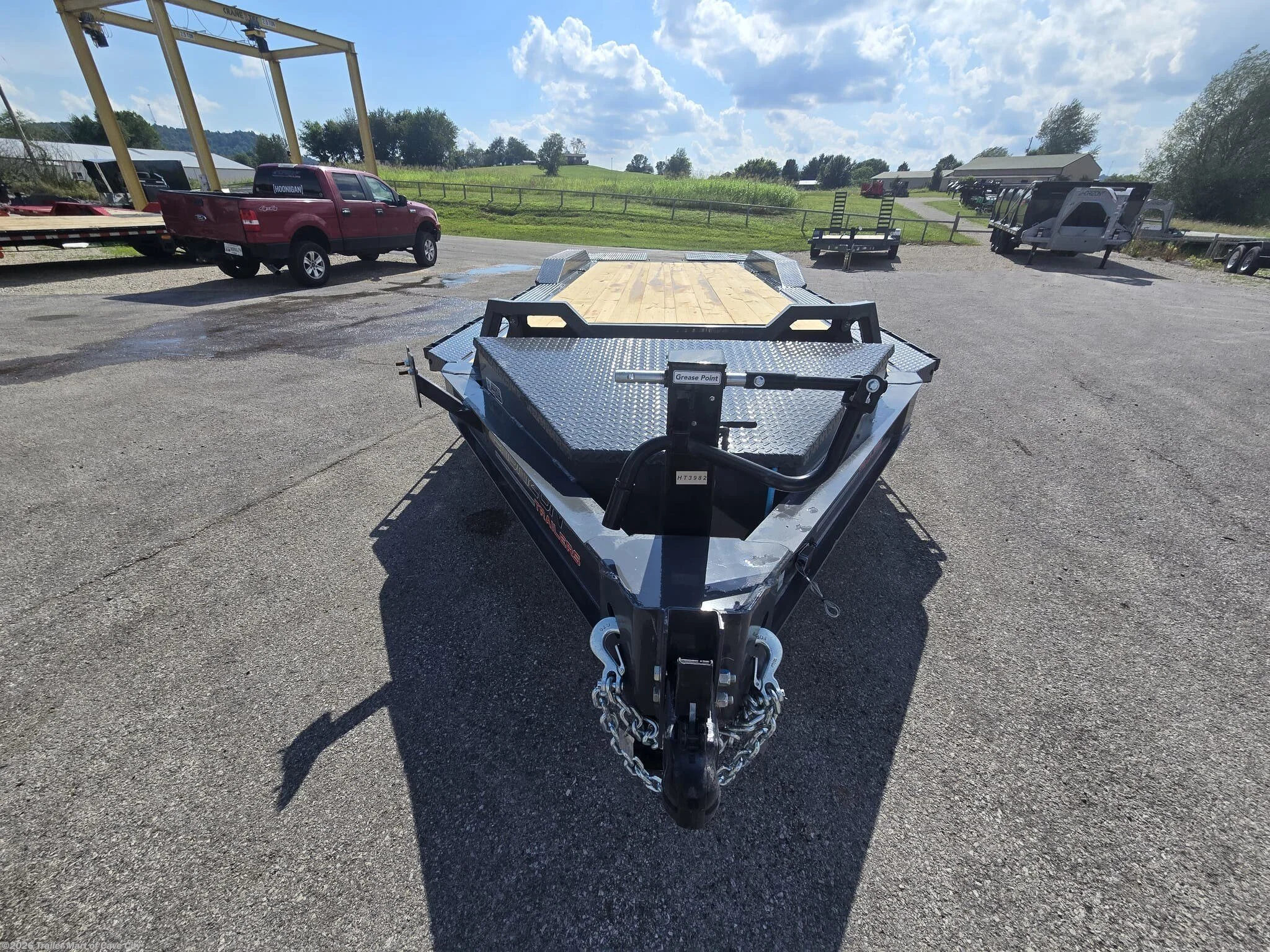

COUPLER
STANDARD COUPLER BP: ADJUSTABLE AUTO LATCH 2-5/16" BP COUPLER (17,000 LBS)
FRONT JACK BP: 1 SIDE WIND DROP JACK LEG (12,000 LBS)
TOOLBOX
TOOLBOX BP: MEGA LOCKABLE TOOLBOX
SAFETY SYSTEM
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH)

CHASSIS
FRAME
MAIN FRAME: 8" I-BEAM (13 LBS/FT)

DECK
BED
DECK: 2' DOVETAIL
DECK FRAME: 3/16” DIAMOND PLATE
DECK WIDTH: 102"
WIDTH BETWEEN FENDERS: 83"
DECK HEIGHT: 25"
FLOORING: PINE LUMBER FLOOR
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING
WELD ON D-RINGS: 2 - D-RINGS IN BETWEEN FENDERS
SIDES
RUB RAIL: 2” X 3/8” RUB RAIL
STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS (SPACED AT 24")
SPOOLS: 2” X 10GA. PIPE SPOOLS (SPACED AT 24”)
FENDERS: 3/16” DIAMOND PLATE DRIVE OVER FENDERS
FRONT
GUARD: REINFORCED 2” 10GA. ROUND TUBING
REAR

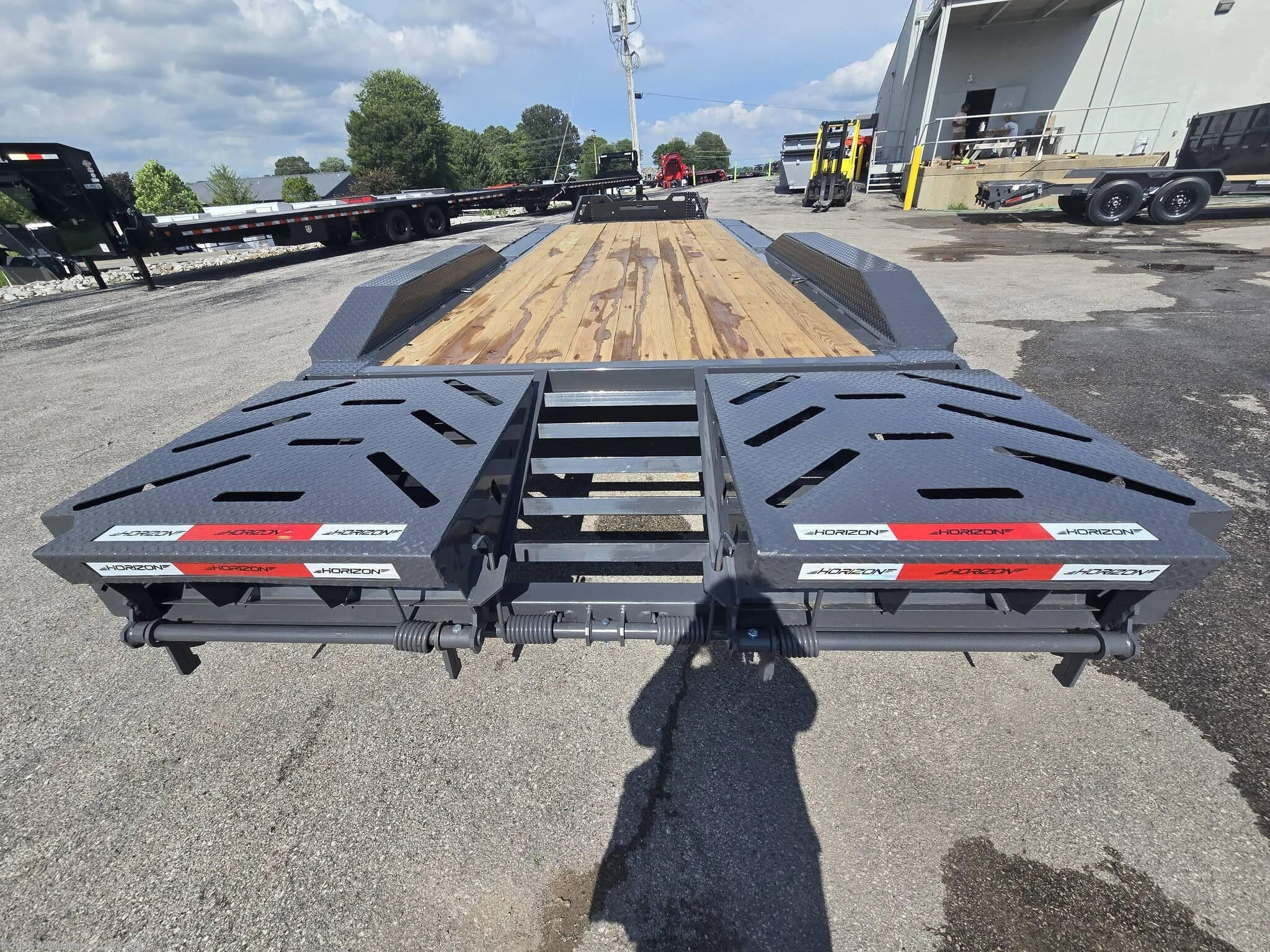

RAMPS: RAMP POCKETS W/ 5’6” LONG HEAVY DUTY SLIDE IN 4” CHANNEL RAMPS (7,000LBS WHEEL RATING EACH ONLY OVER AREA OF 12” OR MORE)

RUNNING GEAR
TIRES
TYPE: RADIAL TIRES
SIZE: ST235/80R16
PLY: 14
RATING: 3,520 LBS
RIMS: 16" BLACK MOD WHEELS

SUSPENSION
AXLE TYPE: 2 - 8K ELECTRIC BRAKE OIL BATH SPRING AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY

ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BREAKAWAY SYSTEM: 2382 BRIGHTWAY GROUP ELECTRIC BRAKE KIT
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE

UPGRADES:
3' DOVETAIL W/ MOUNTAIN RAMPS

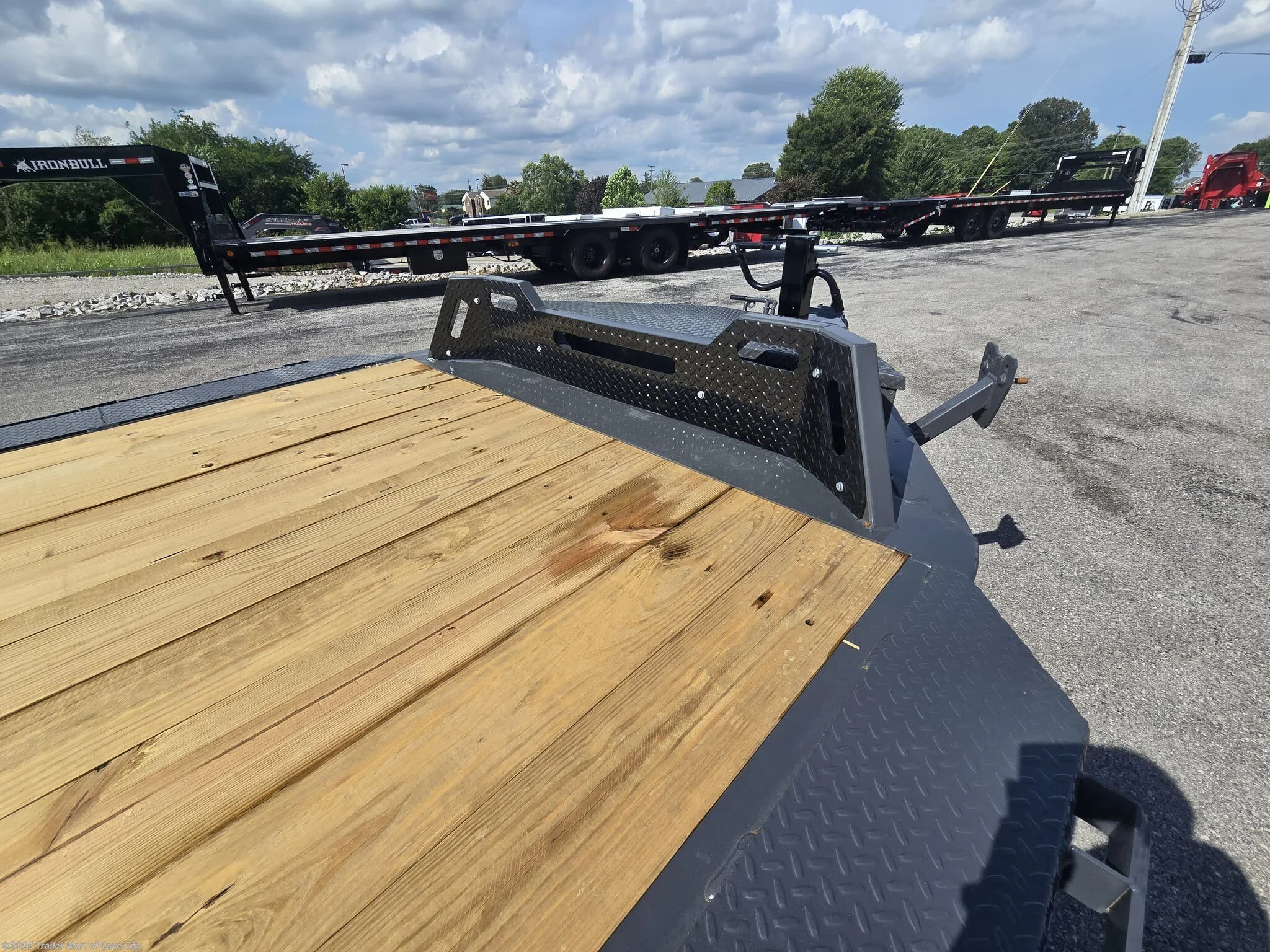

BOLT ON 7GA. FRONT DIAMOND PLATE SHIELD

Specifications:

Condition: New

Exterior Color: Ash Gray

GVWR: 17,000 lb

Dry Weight: 4,200 lb

Payload Capacity: 12,800 lb

Hitch Type: Bumper Pull
