Sale Price:
$11,195.00
Original Price:
$13,995.00
Description:
LENGTH: 14'
SIDE HEIGHT: 19”
BED WIDTH: 83"
BED HEIGHT: 28"
WEIGHT RATINGS:
GAWR: 7,000 LBS
FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
WARRANTY
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY
TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY
TONGUE
TYPE: NECKBOSS 8” I-BEAM (13 LBS/FT)
SPARE: WELD ON SPARE TIRE MOUNT
COUPLER
STANDARD COUPLER: ADJUSTABLE AUTO LATCH 2,5/16”BP COUPLER (17,000 LBS)

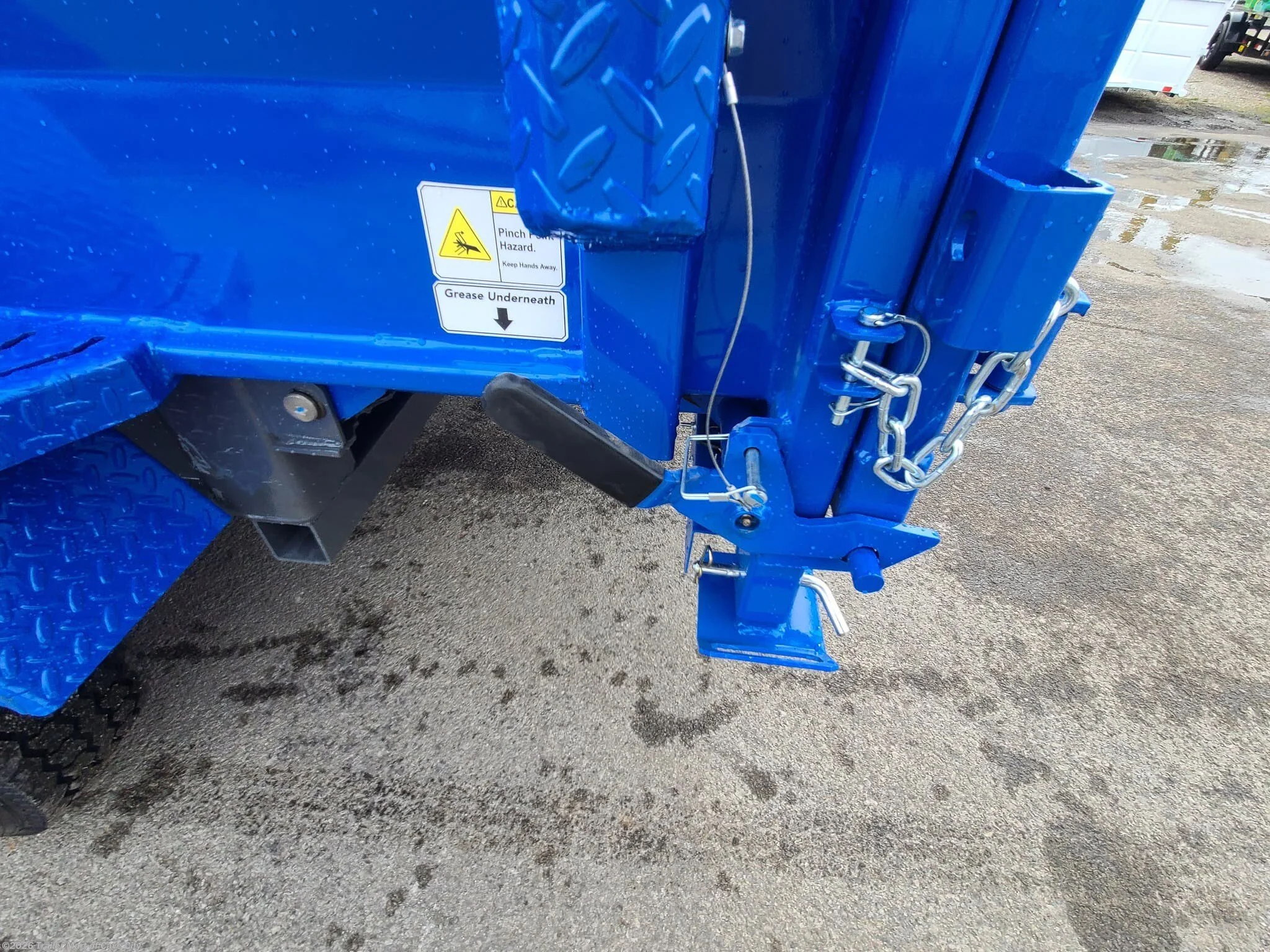

FRONT JACK: 1 SIDE WIND LOADED DROP JACK LEG (12,000 LBS)

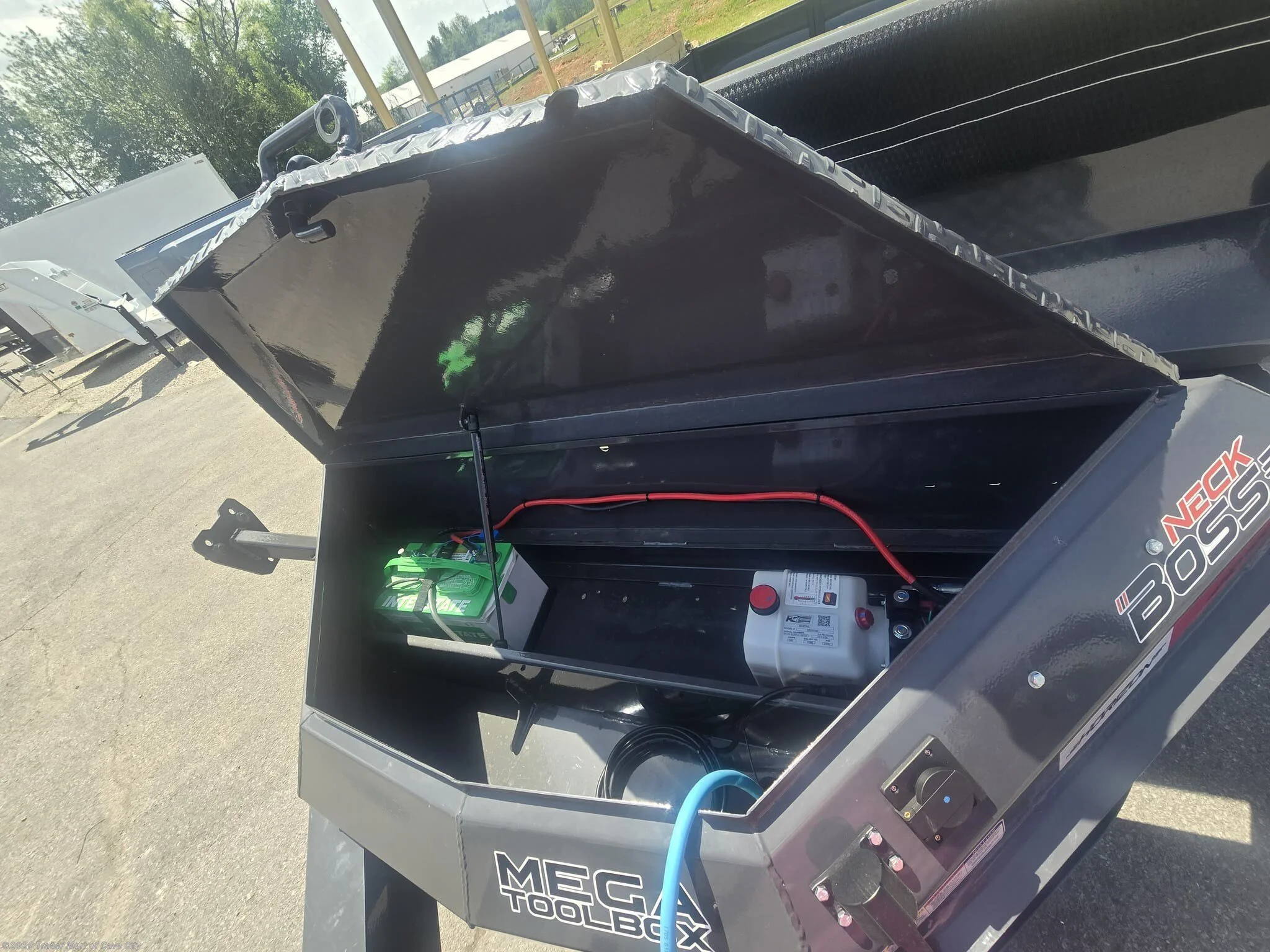

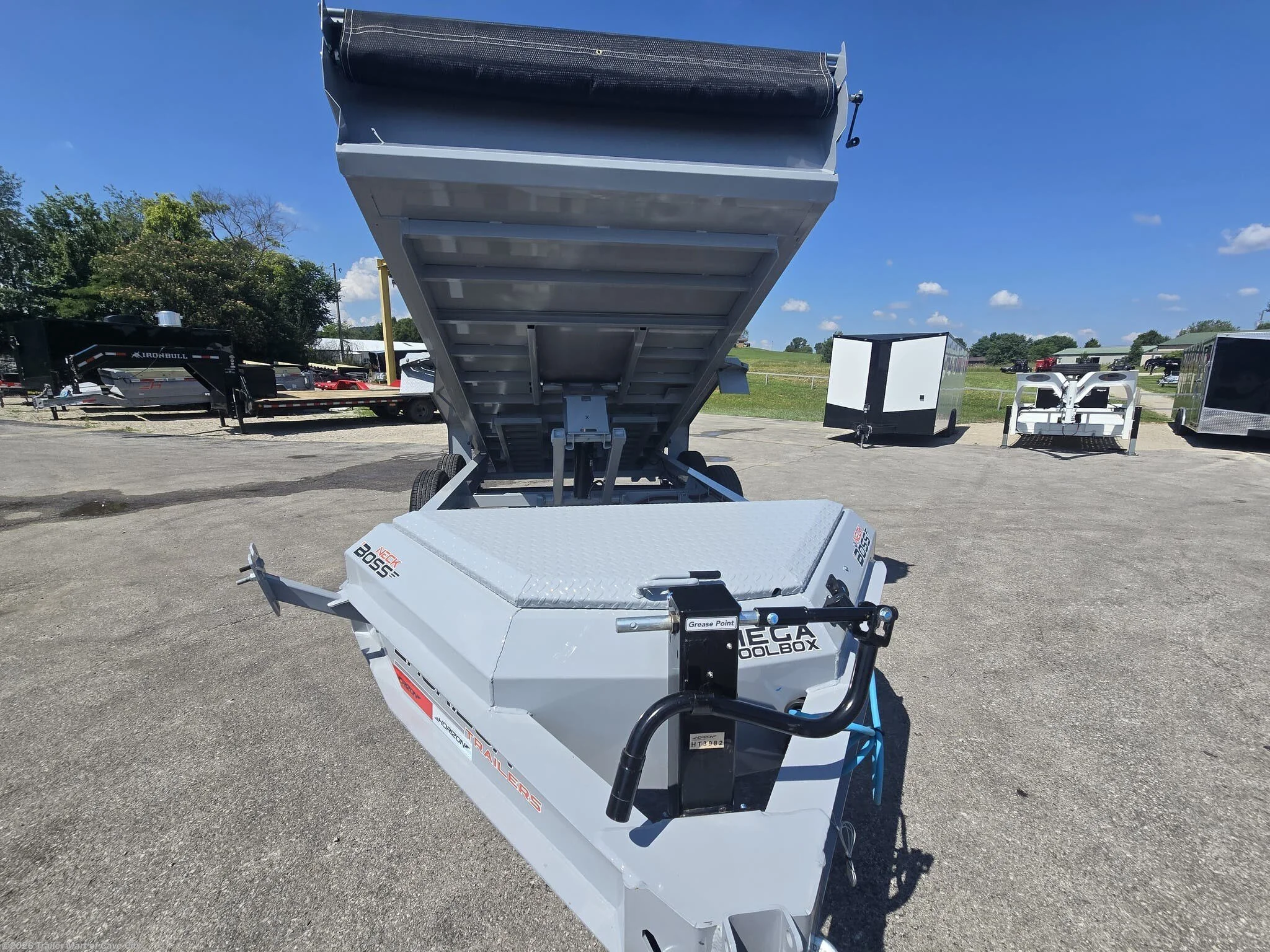

TOOLBOX

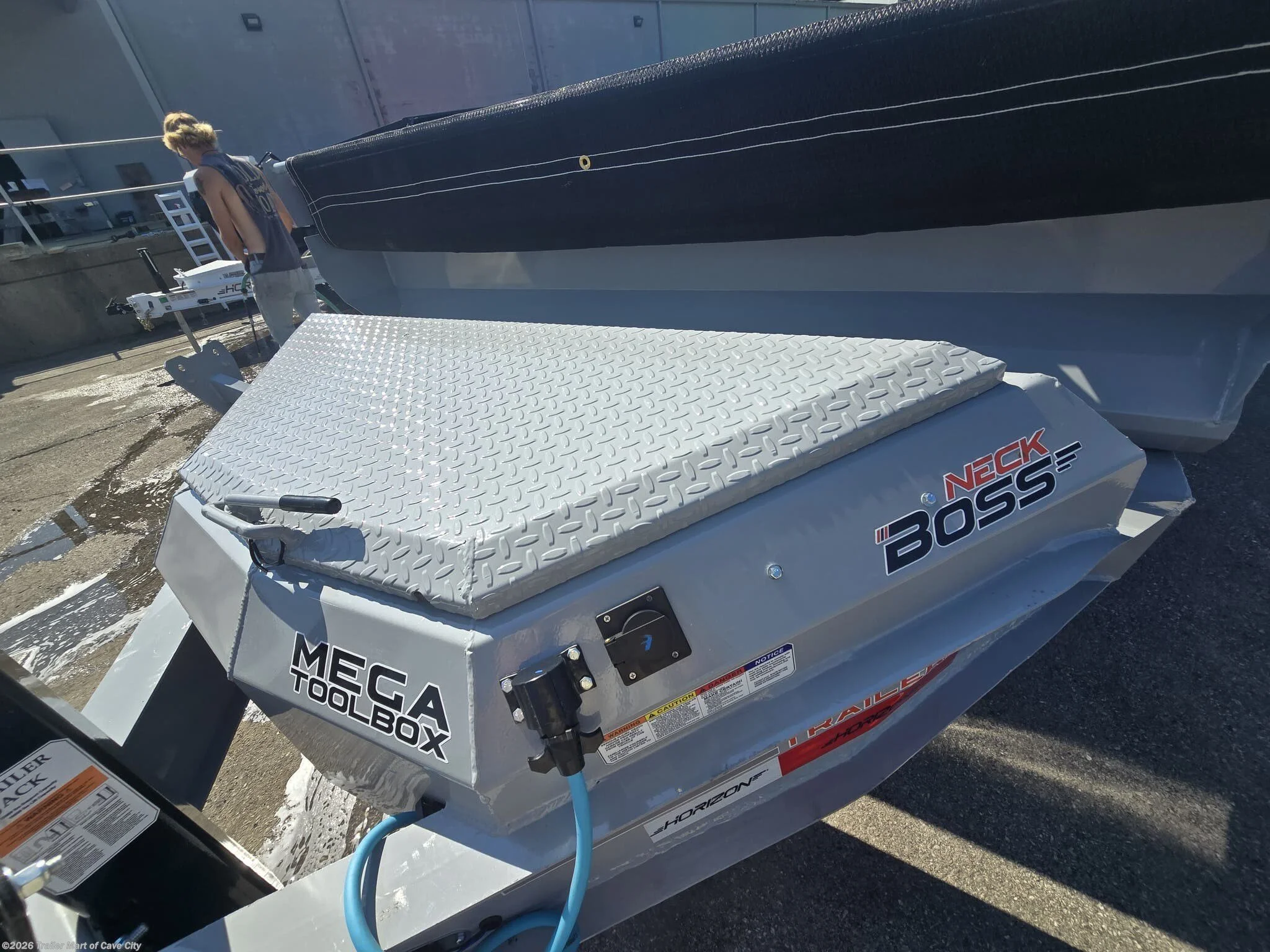

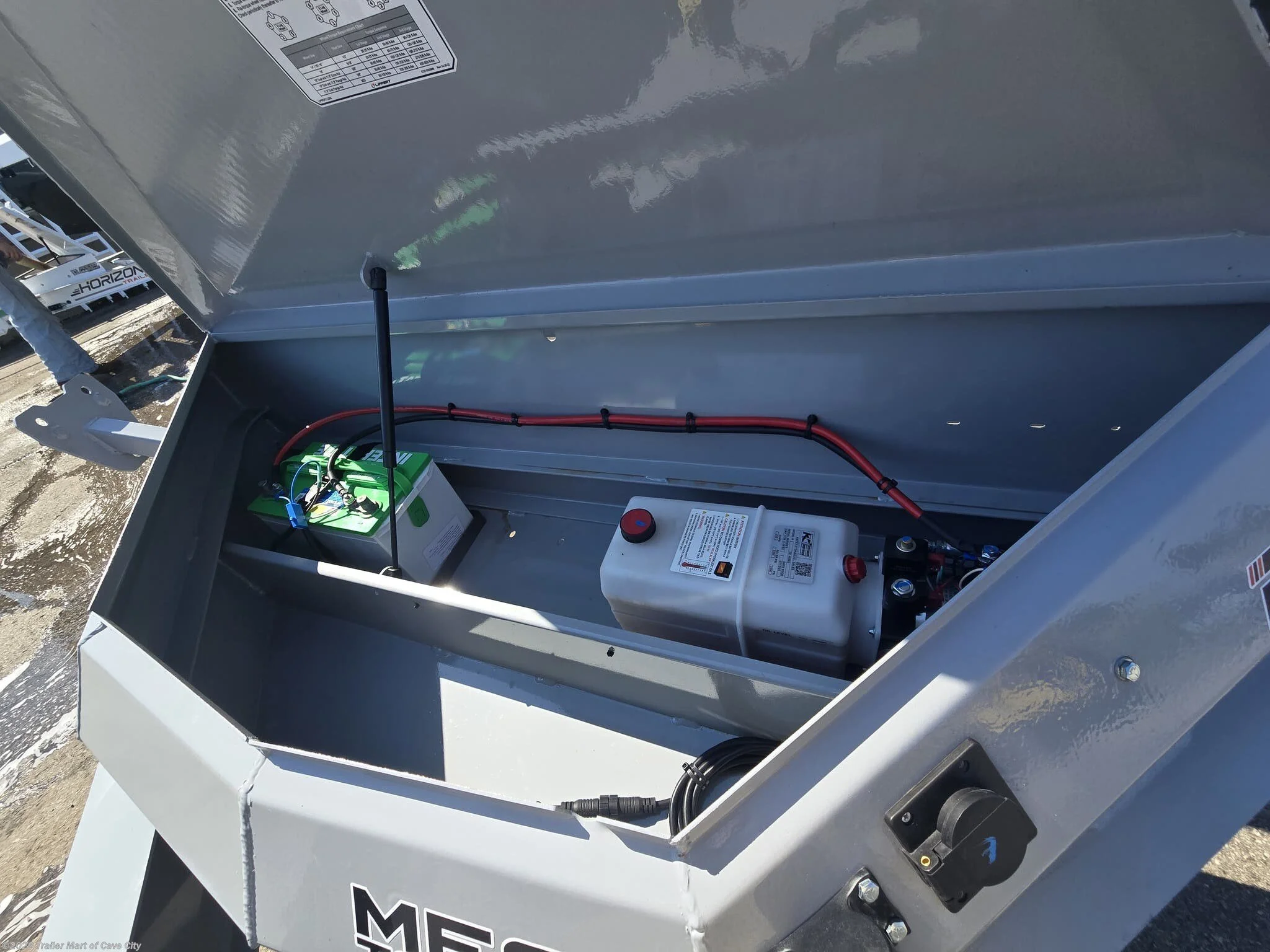

TOOLBOX: MEGA LOCKABLE TOOLBOX HOUSES (HOUSES BATTERY AND PUMP W/ EXTRA STORAGE)
SAFETY SYSTEM
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH)
CHASSIS/FRAME
MAIN FRAME: 8" I-BEAM (13 LBS/FT)
DUMP/BED
BED WIDTH: 83"
BED HEIGHT: 28"
FLOORING: 9GA. STEEL BED
FRAME: 3" X 5" X 1/4" ANGLE IRON (10.3 LBS/FT) 16” SPACING
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING

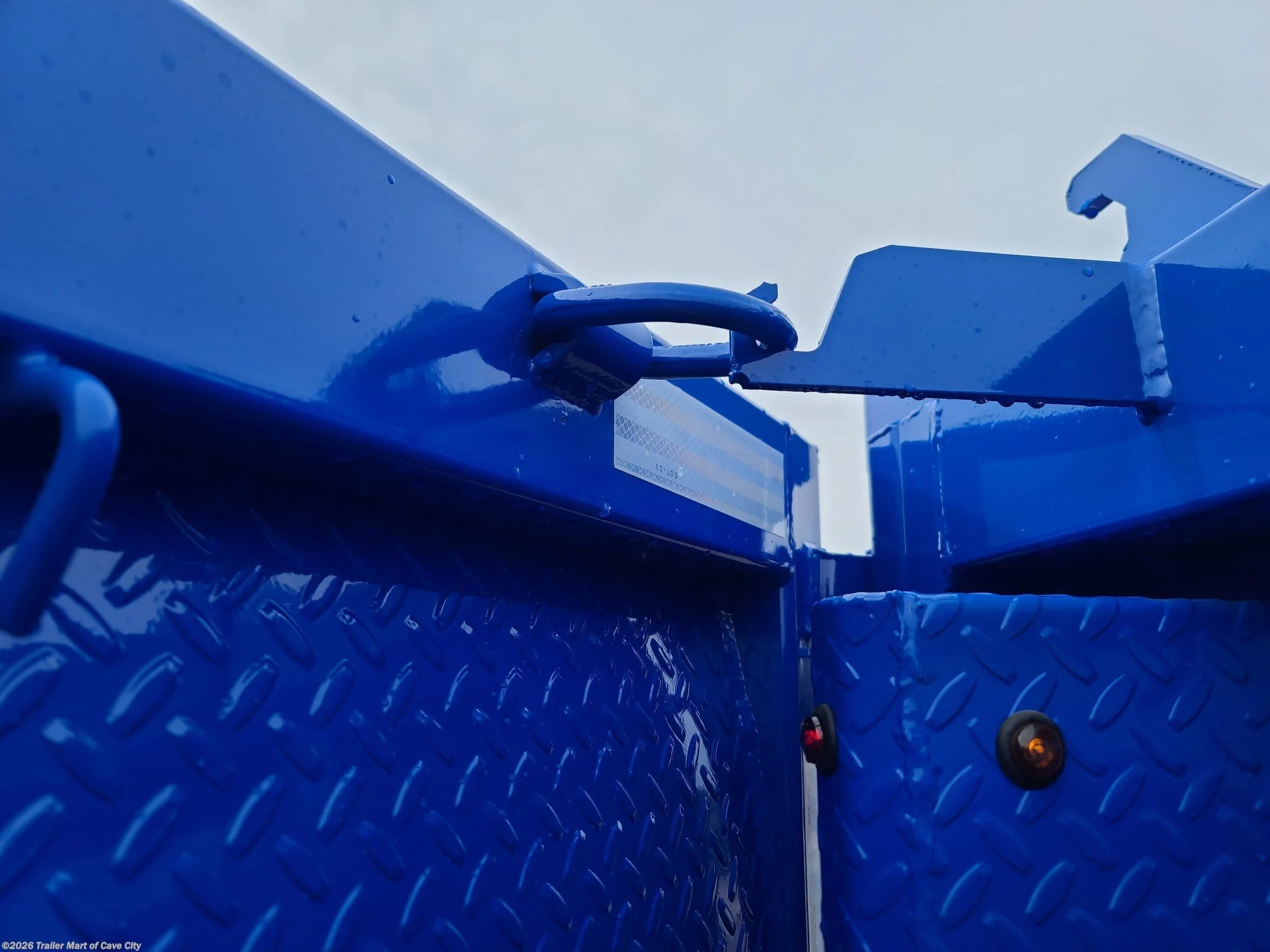

D-RINGS: 4 D RINGS WELDED INSIDE BOX

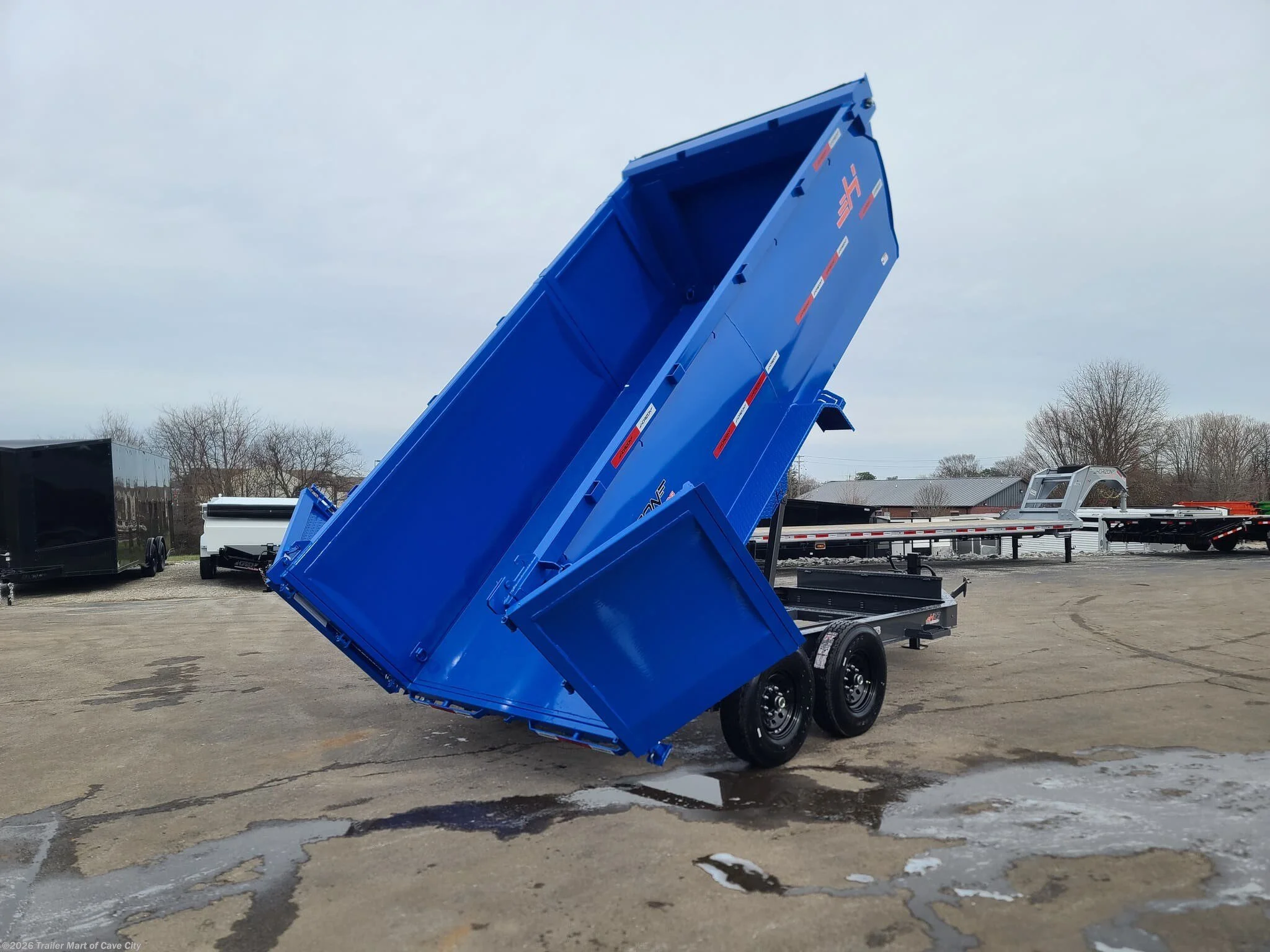

DUMP ANGLE: 40° - 48°
REAR

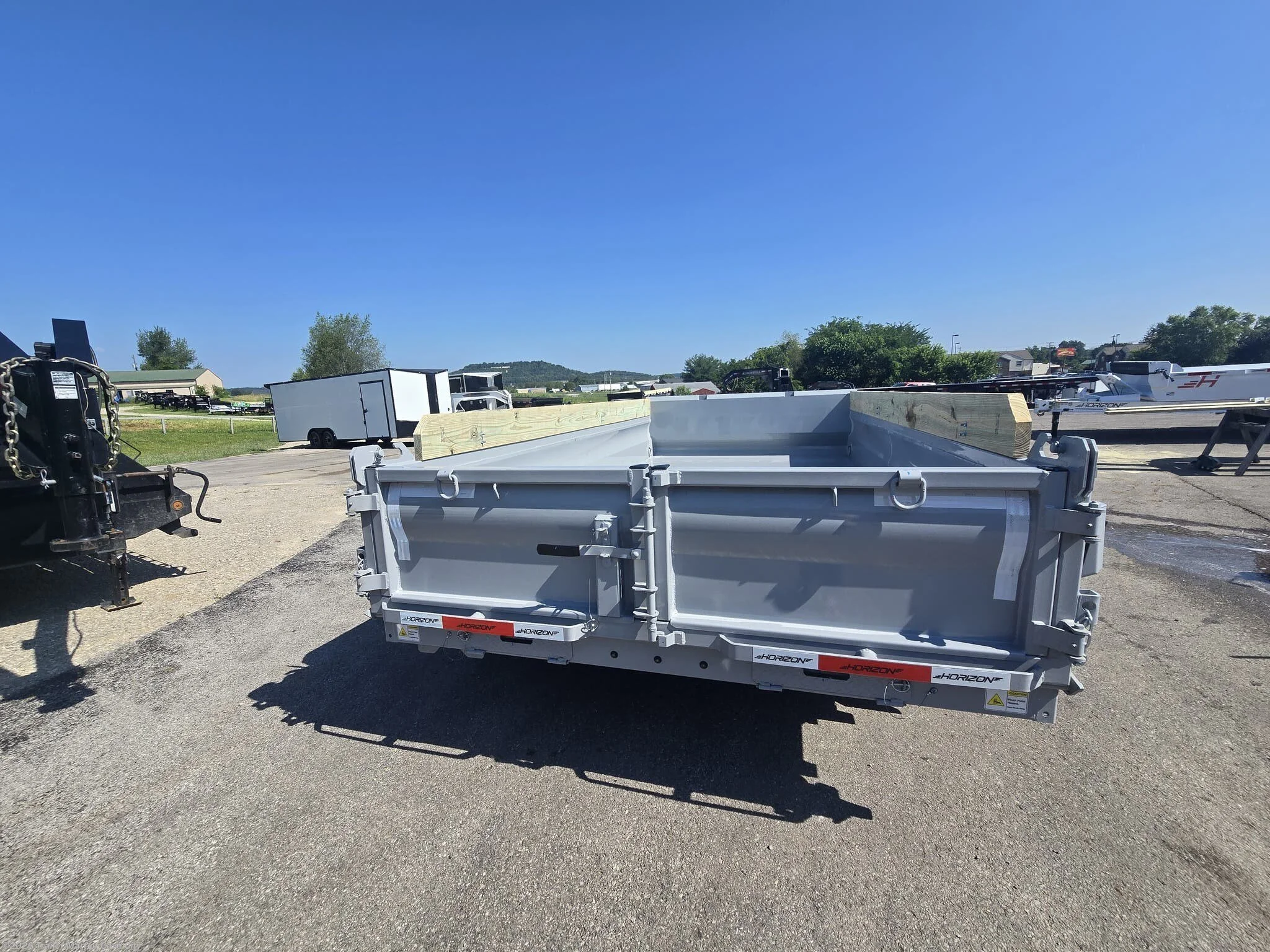

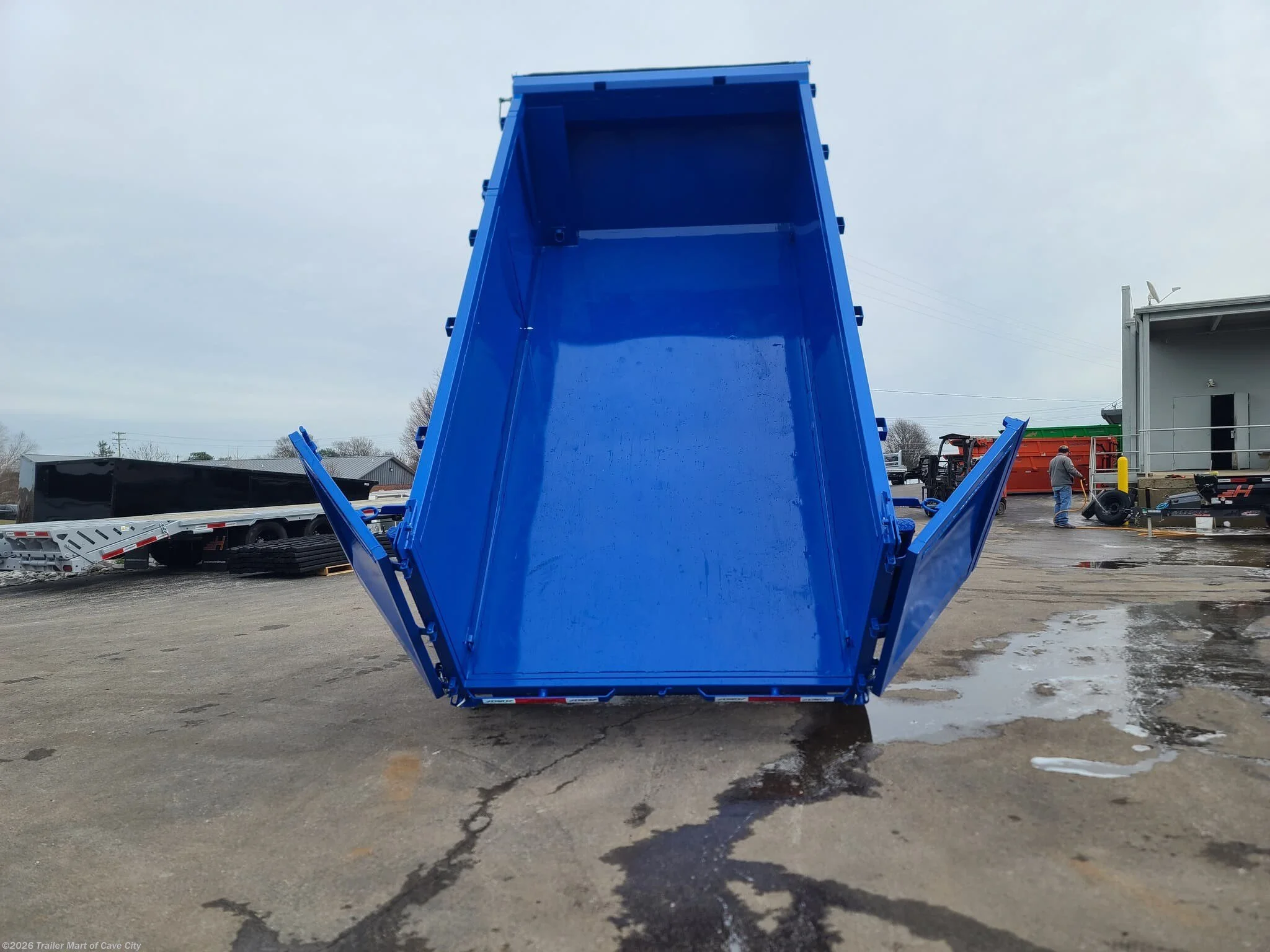

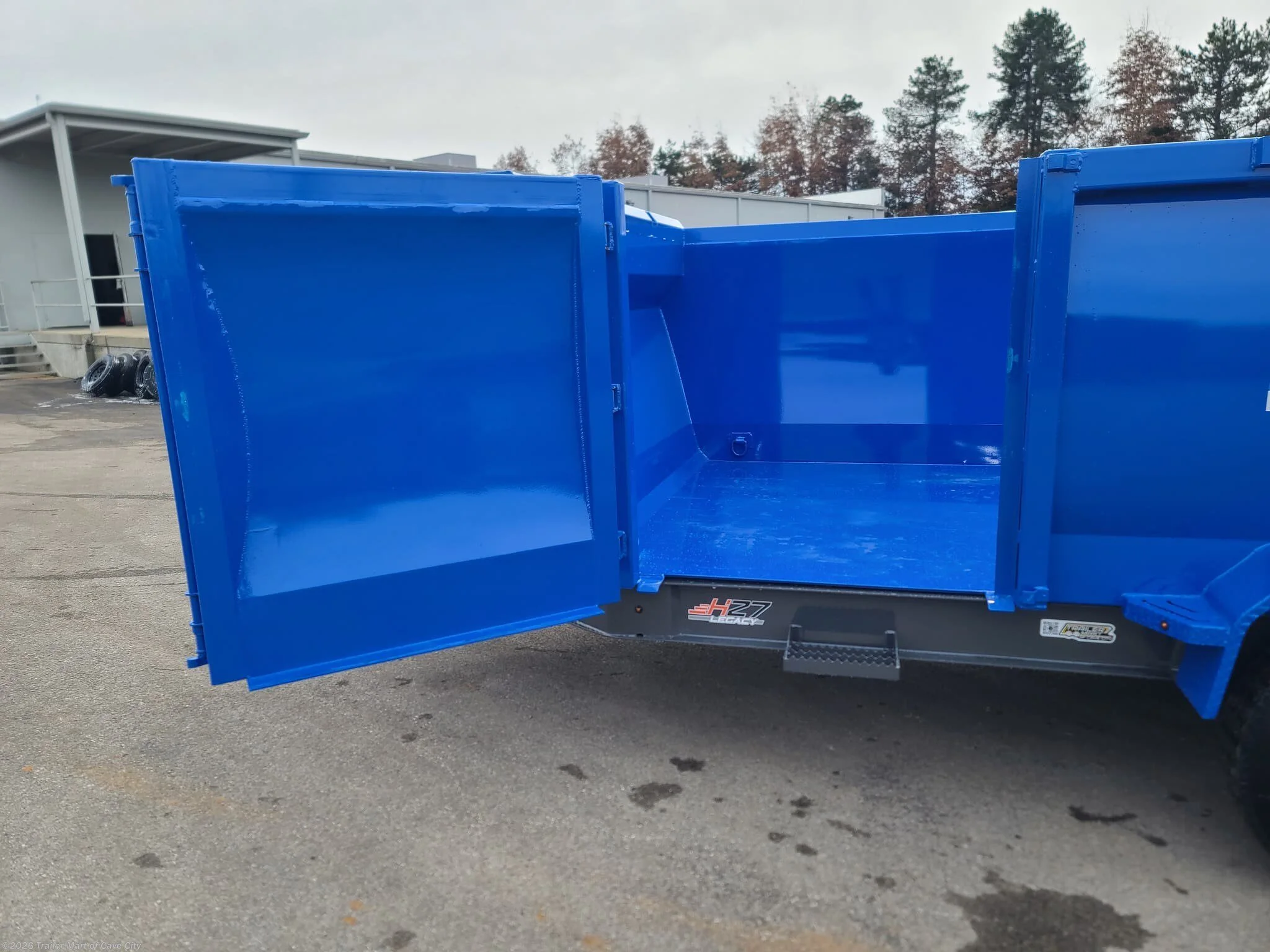

GATE: 2 WAY DOOR
RAMPS: RAMP POCKETS W/ 6' 4" LONG SLIDE IN 3" CHANNEL RAMPS (4,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE]
SIDES
HEIGHT: 19"
TOP RAIL WIDTH: 83”
THICKNESS: 12GA.
TYPE: ROUNDED STEEL
TOP RAIL: 2" X 3" X 11GA. TUBING
STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS
HOOKS: 3/8" ROUND "J" HOOKS
FENDERS: 14GA. DIAMOND PLATE STEEL FENDERS
SAFETY

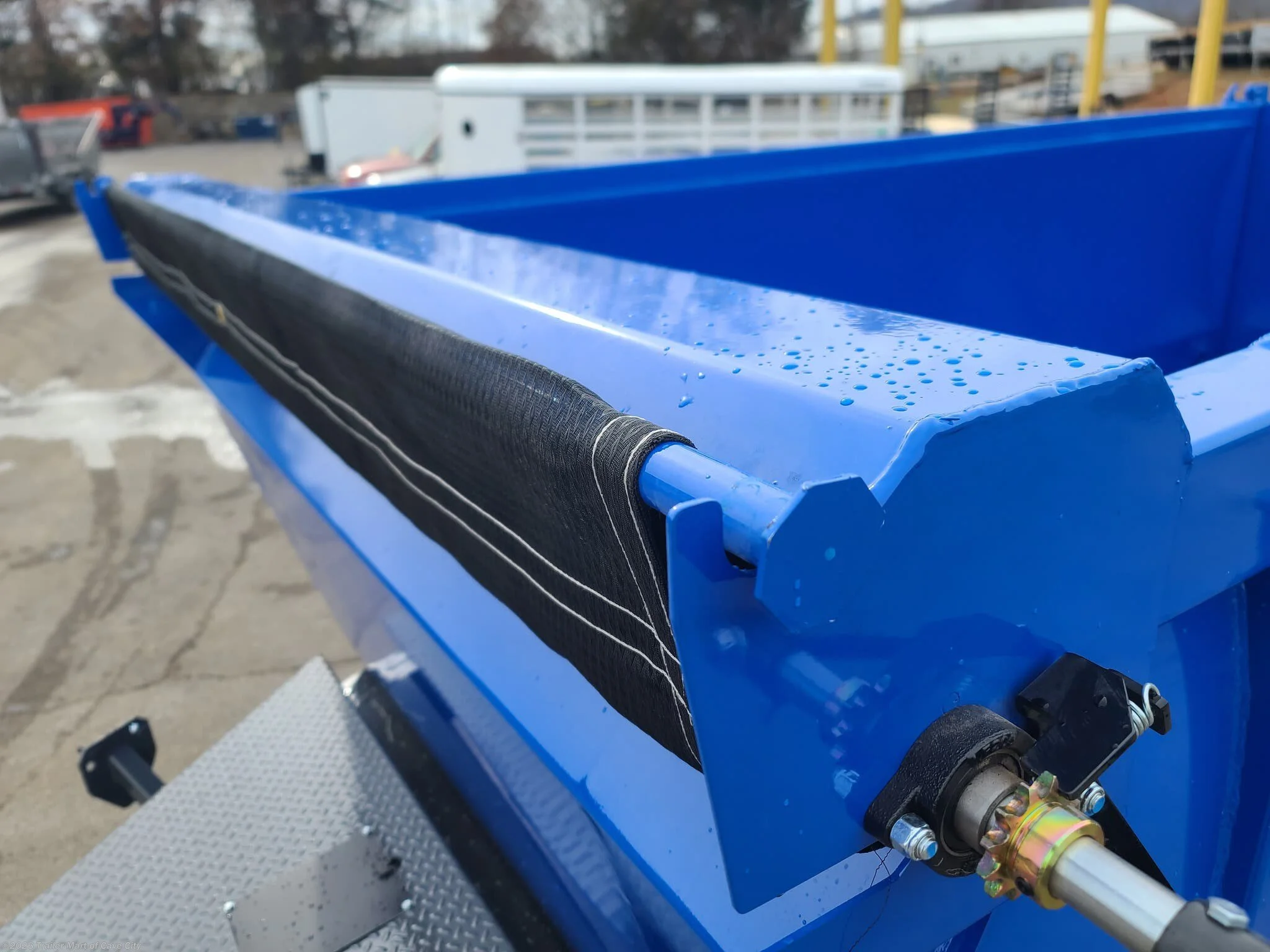

TARP: MANUAL TARP KIT
LIFT SYSTEM/HYDRAULICS

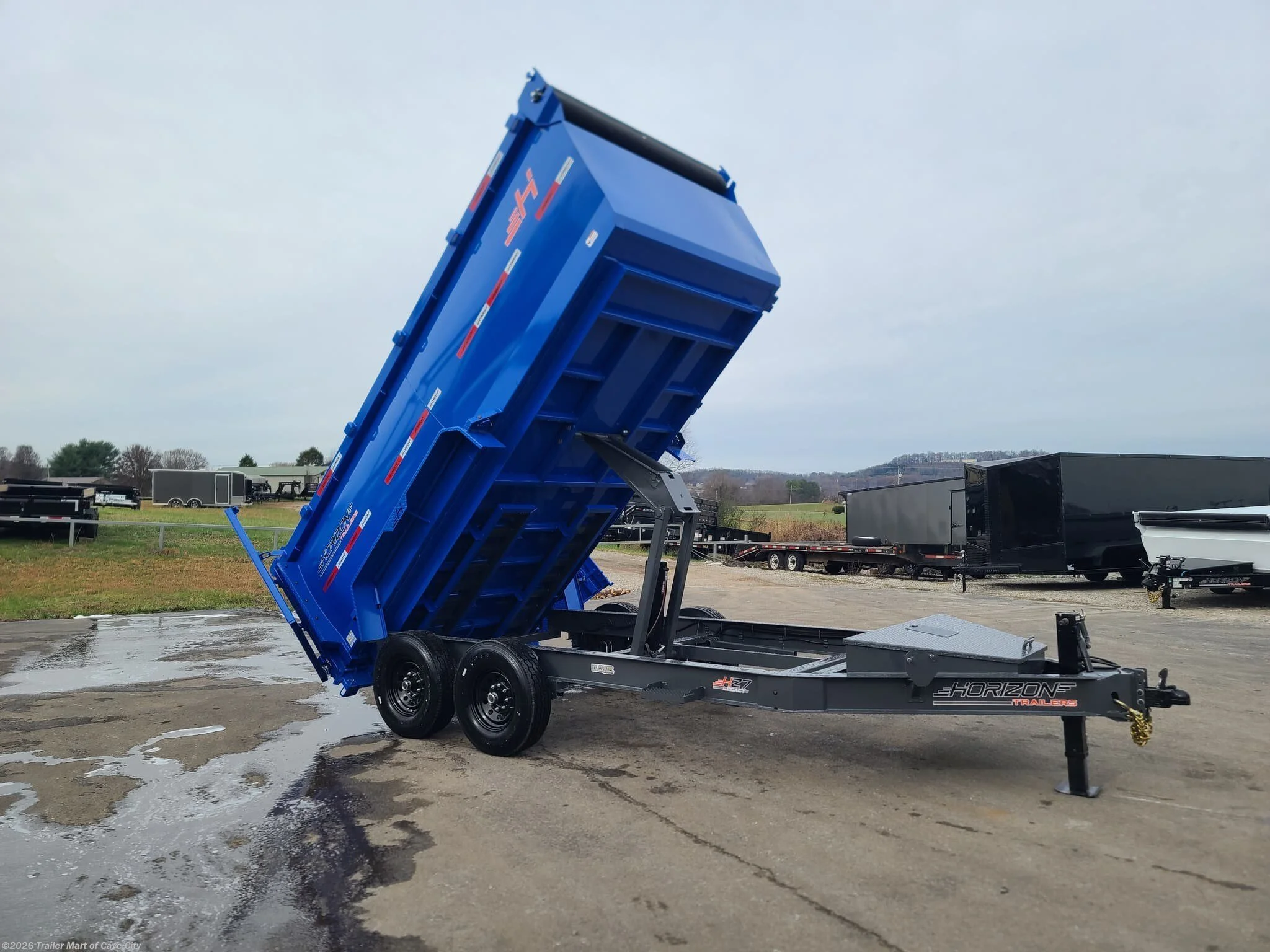

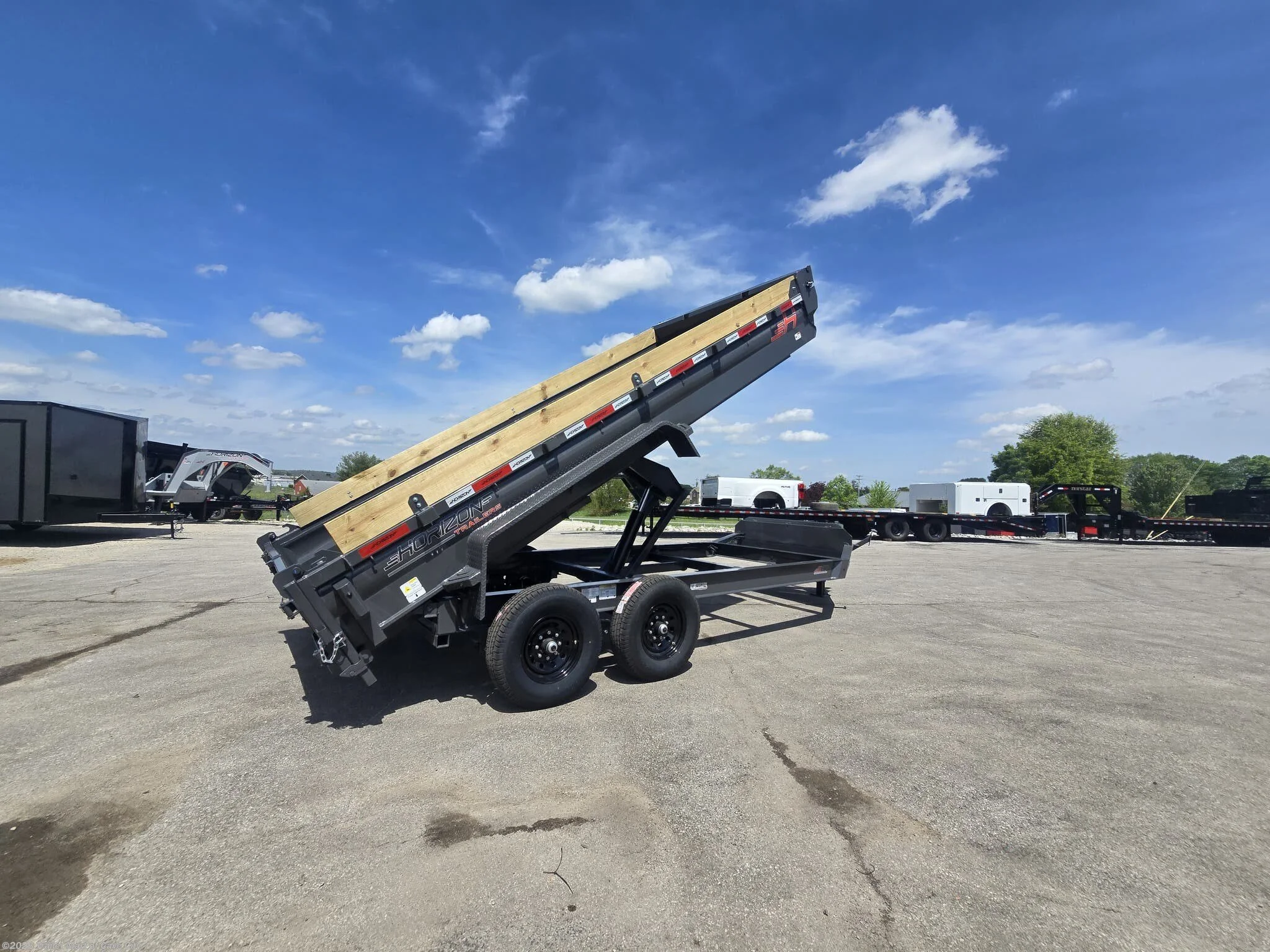

SYSTEM: HYDRAULIC - POWER UP / GRAVITY DOWN
PUMP: KTI 12V HYDRAULIC PUMP
CONTROLLER: 14' CONTROL CABLE
12', 14' DUMP LIFT
CYLINDER: 5" X 16" SINGLE PUSH CYLINDER
HOIST CAPACITY: 15,000 LBS

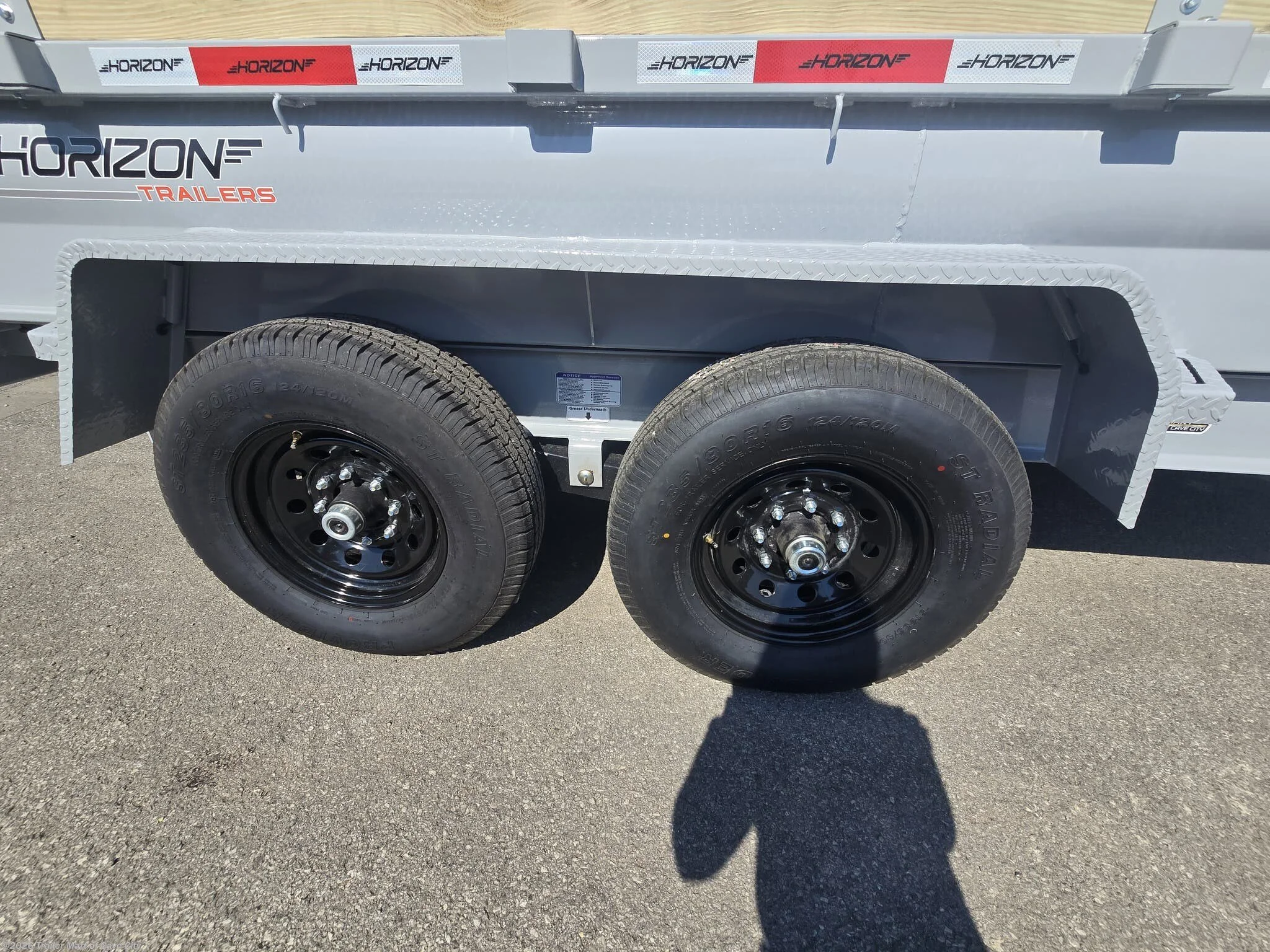

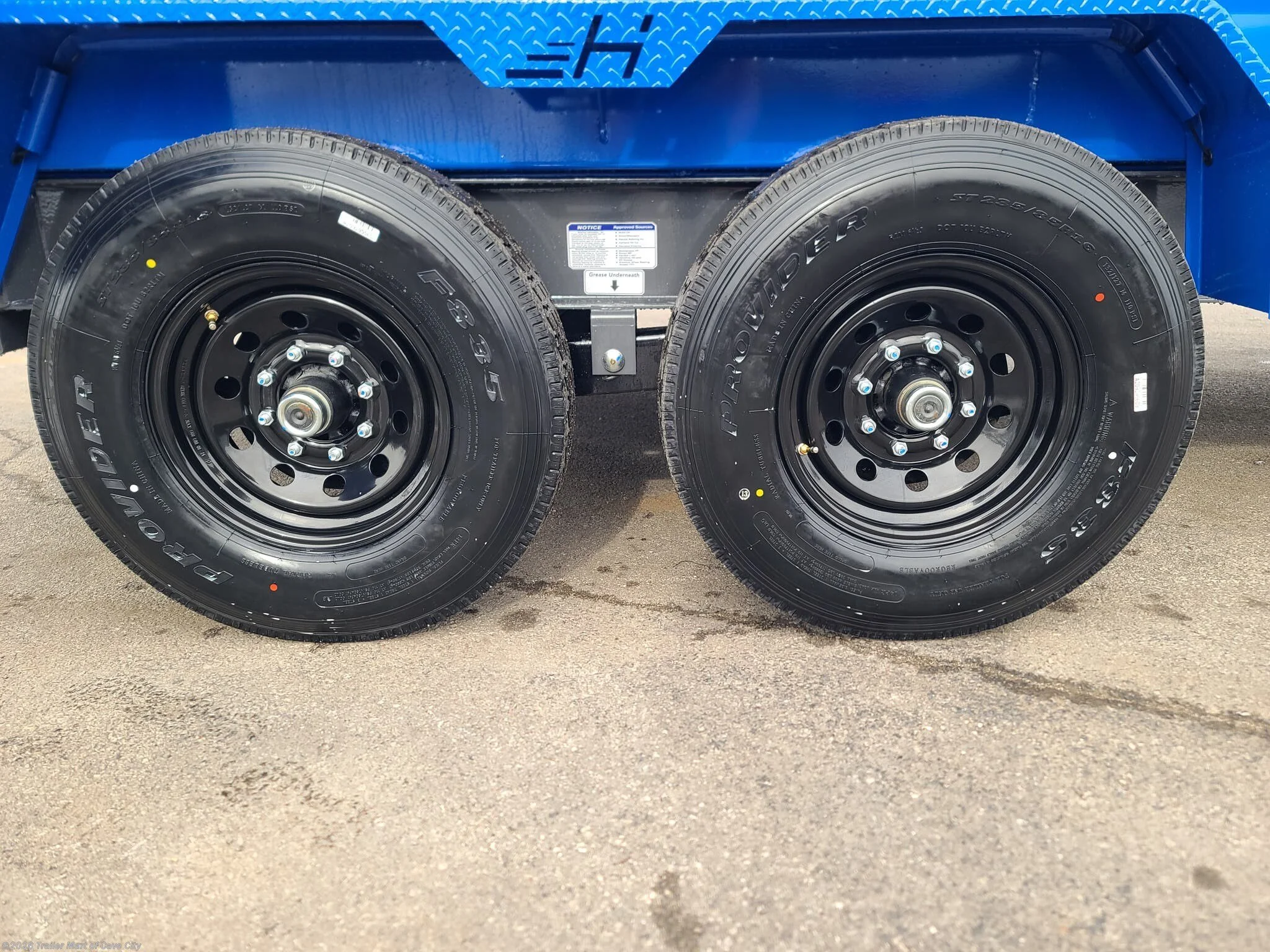

RUNNING GEAR/TIRES
TYPE: RADIAL TIRES
SIZE: ST235/80R16 10PR 3,520 LBS
PLY: 10
RATING: 3,520 LBS
RIMS: 16" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 2 - 7K ELECTRIC BRAKE AUTO ADJUST EZ LUBE SPRING AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BATTERY: 1 - INTERSTATE 27 DEEP CYCLE BATTERY
CHARGING SYSTEM: 110V INTEGRATED TRICKLE CHARGER
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
Specifications:
Condition: New
Exterior Color: Cloud Gray
GVWR: 14,000 lb
Dry Weight: 4,050 lb
Payload Capacity: 9,950 lb
Hitch Type: Bumper Pull
Description:
LENGTH: 14'
SIDE HEIGHT: 19”
BED WIDTH: 83"
BED HEIGHT: 28"
WEIGHT RATINGS:
GAWR: 7,000 LBS
FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
WARRANTY
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY
TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY
TONGUE
TYPE: NECKBOSS 8” I-BEAM (13 LBS/FT)
SPARE: WELD ON SPARE TIRE MOUNT
COUPLER
STANDARD COUPLER: ADJUSTABLE AUTO LATCH 2,5/16”BP COUPLER (17,000 LBS)
FRONT JACK: 1 SIDE WIND LOADED DROP JACK LEG (12,000 LBS)
TOOLBOX
TOOLBOX: MEGA LOCKABLE TOOLBOX HOUSES (HOUSES BATTERY AND PUMP W/ EXTRA STORAGE)
SAFETY SYSTEM
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH)
CHASSIS/FRAME
MAIN FRAME: 8" I-BEAM (13 LBS/FT)
DUMP/BED
BED WIDTH: 83"
BED HEIGHT: 28"
FLOORING: 9GA. STEEL BED
FRAME: 3" X 5" X 1/4" ANGLE IRON (10.3 LBS/FT) 16” SPACING
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING
D-RINGS: 4 D RINGS WELDED INSIDE BOX
DUMP ANGLE: 40° - 48°

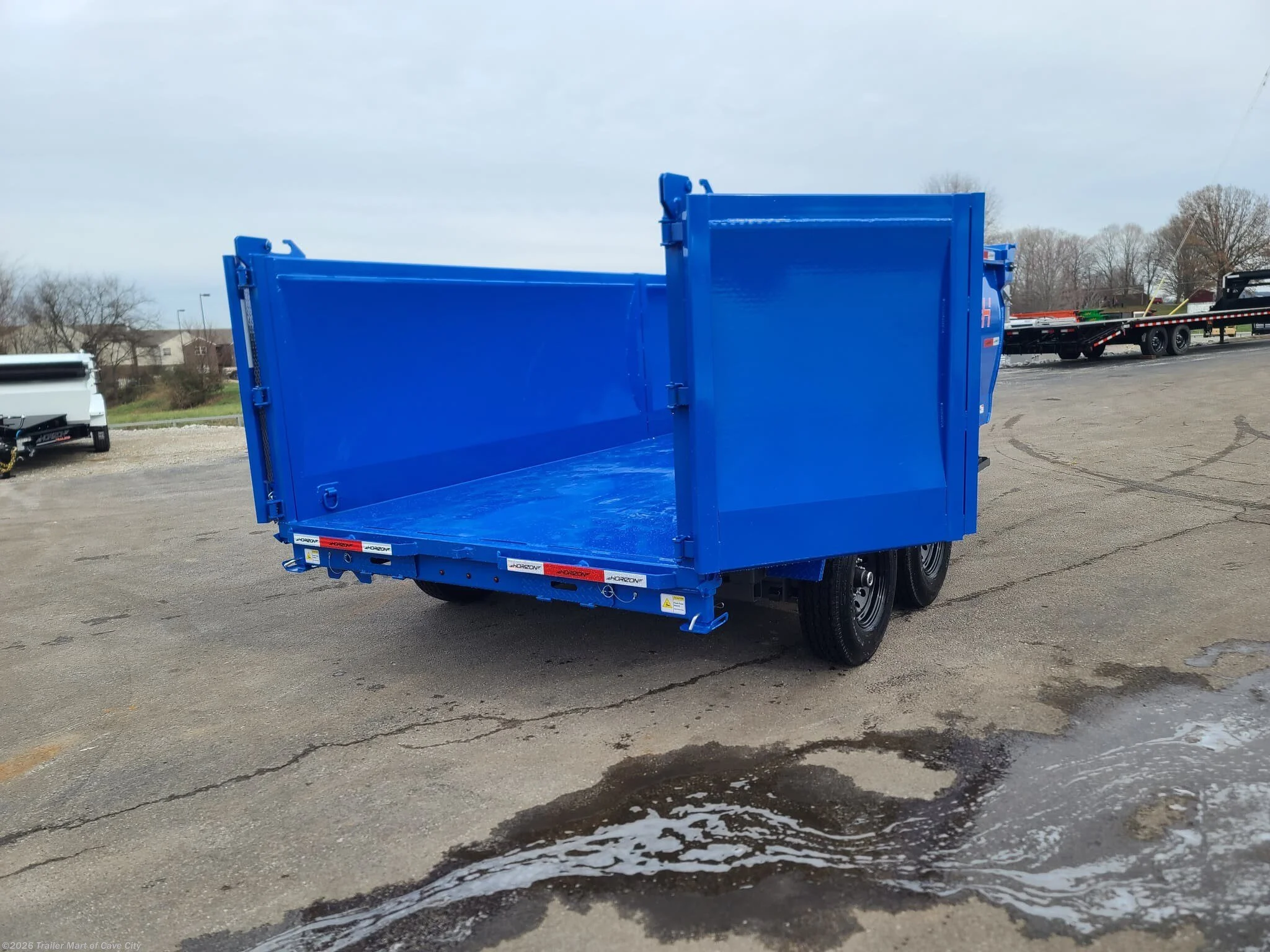

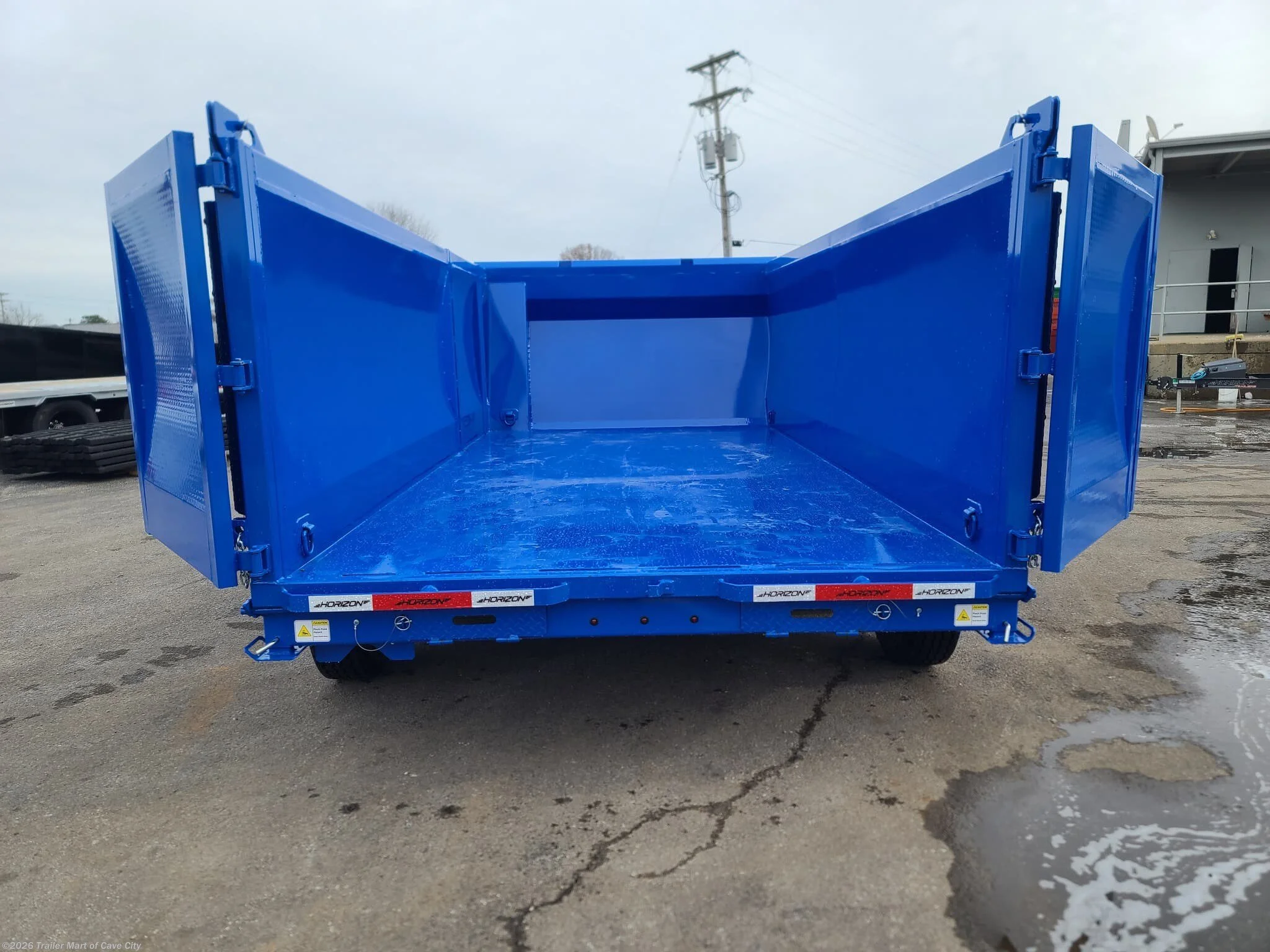

REAR
GATE: 2 WAY DOOR
RAMPS: RAMP POCKETS W/ 6' 4" LONG SLIDE IN 3" CHANNEL RAMPS (4,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE]
SIDES
HEIGHT: 19"
TOP RAIL WIDTH: 83”
THICKNESS: 12GA.
TYPE: ROUNDED STEEL
TOP RAIL: 2" X 3" X 11GA. TUBING
STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS
HOOKS: 3/8" ROUND "J" HOOKS
FENDERS: 14GA. DIAMOND PLATE STEEL FENDERS
SAFETY
TARP: MANUAL TARP KIT

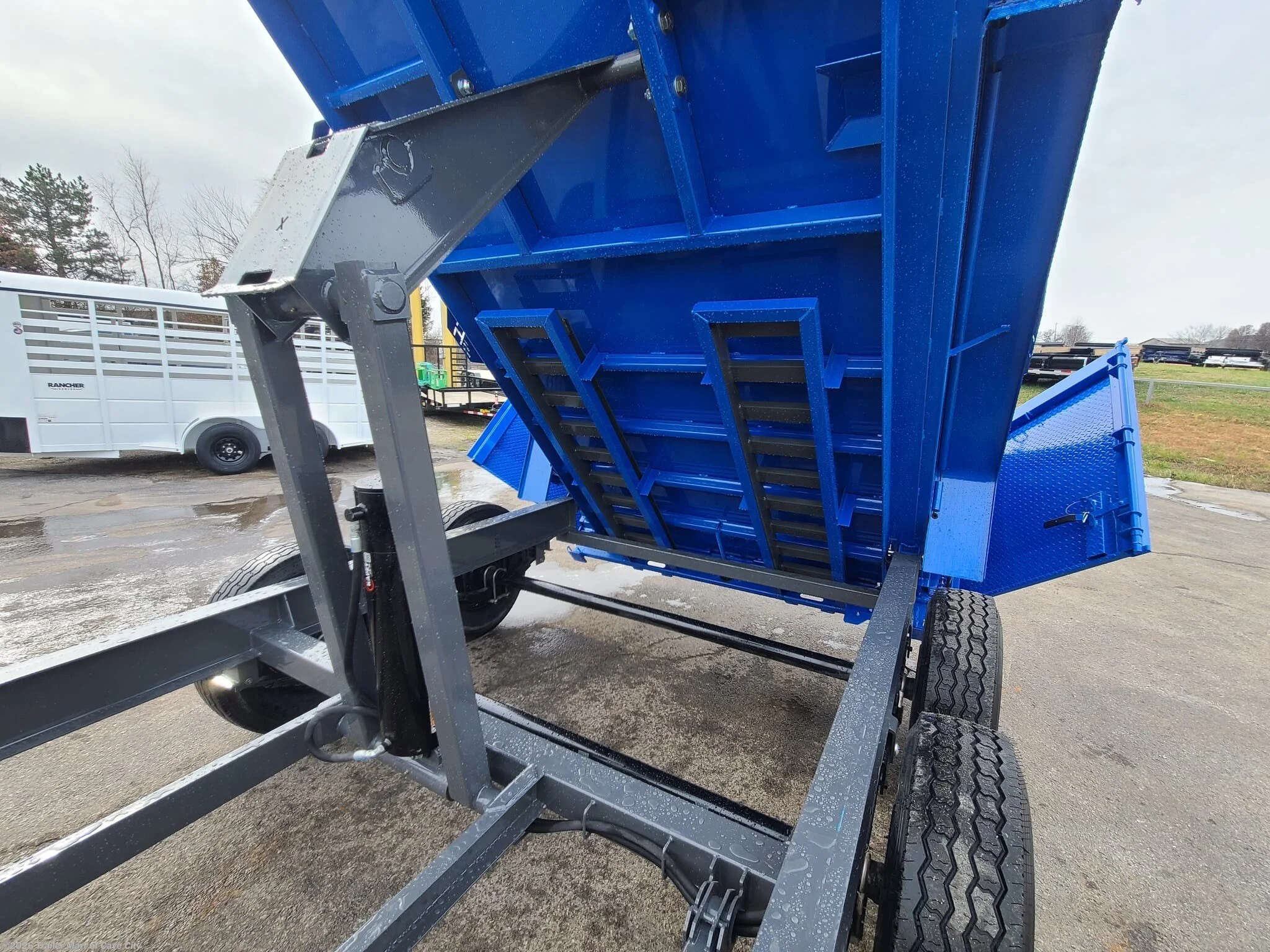

LIFT SYSTEM/HYDRAULICS
SYSTEM: HYDRAULIC - POWER UP / GRAVITY DOWN
PUMP: KTI 12V HYDRAULIC PUMP
CONTROLLER: 14' CONTROL CABLE
12', 14' DUMP LIFT
CYLINDER: 5" X 16" SINGLE PUSH CYLINDER
HOIST CAPACITY: 15,000 LBS
RUNNING GEAR/TIRES
TYPE: RADIAL TIRES
SIZE: ST235/80R16 10PR 3,520 LBS
PLY: 10
RATING: 3,520 LBS
RIMS: 16" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 2 - 7K ELECTRIC BRAKE AUTO ADJUST EZ LUBE SPRING AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BATTERY: 1 - INTERSTATE 27 DEEP CYCLE BATTERY
CHARGING SYSTEM: 110V INTEGRATED TRICKLE CHARGER
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
Specifications:
Condition: New
Exterior Color: Cloud Gray
GVWR: 14,000 lb
Dry Weight: 4,050 lb
Payload Capacity: 9,950 lb
Hitch Type: Bumper Pull
