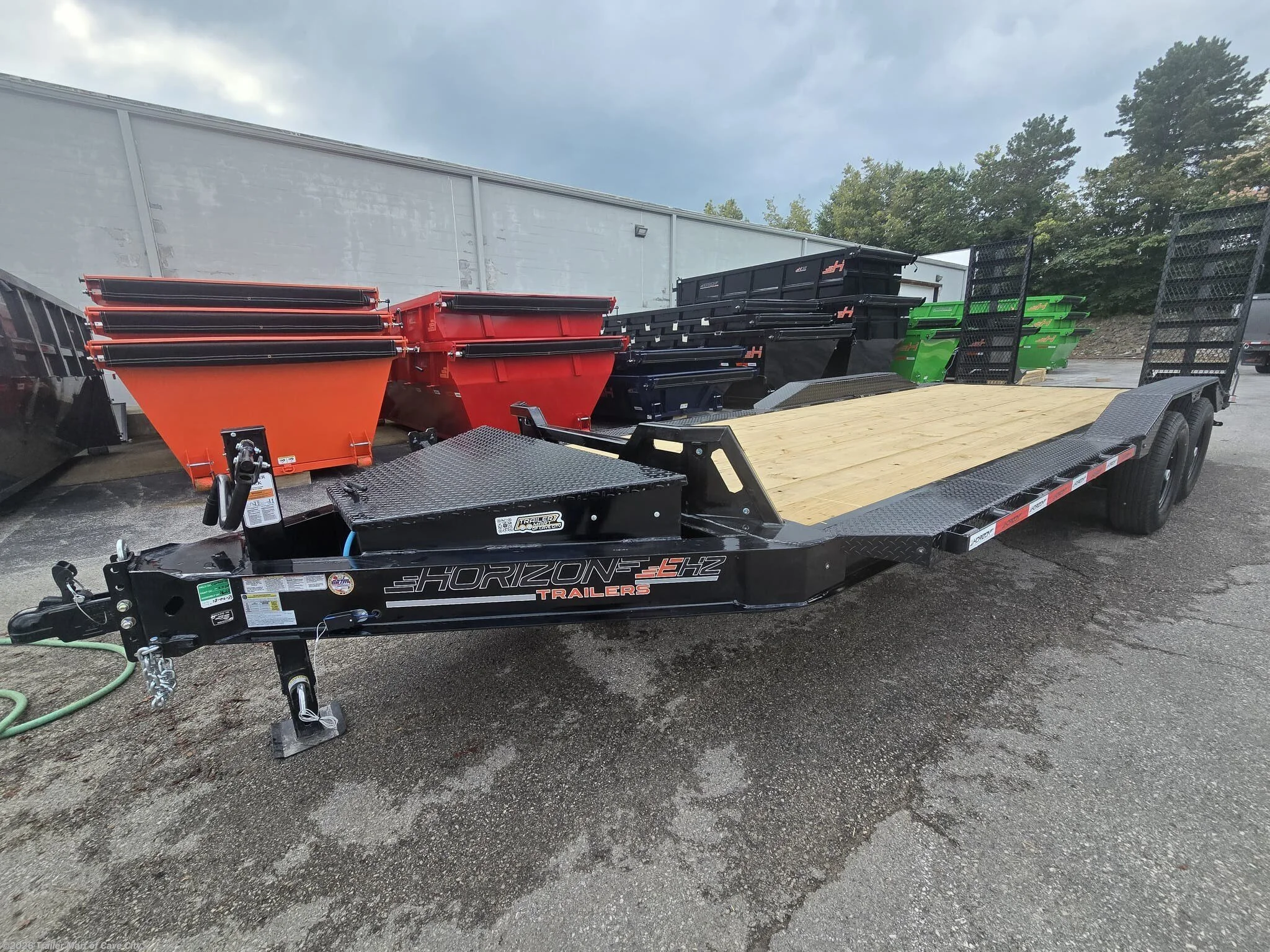

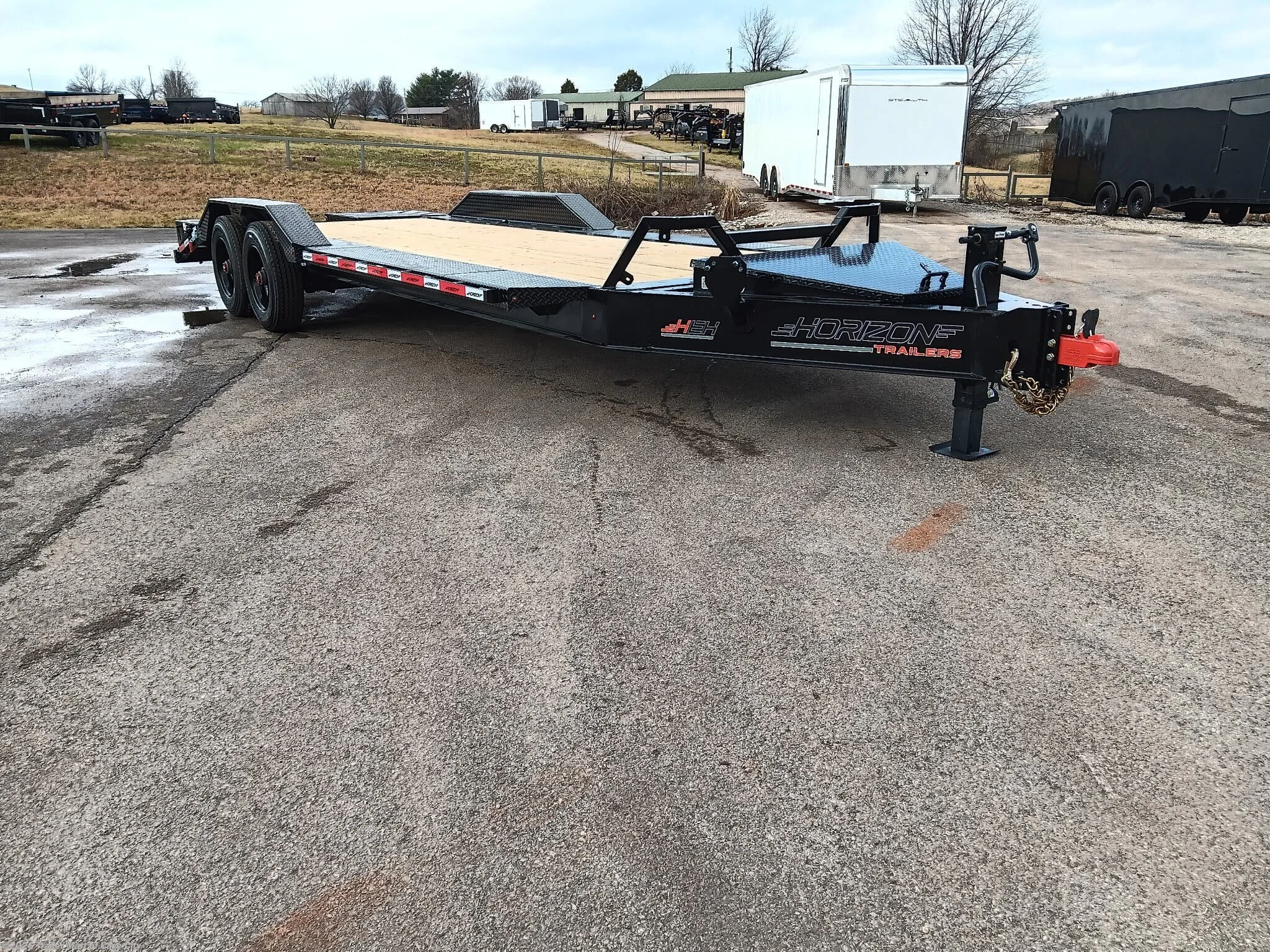

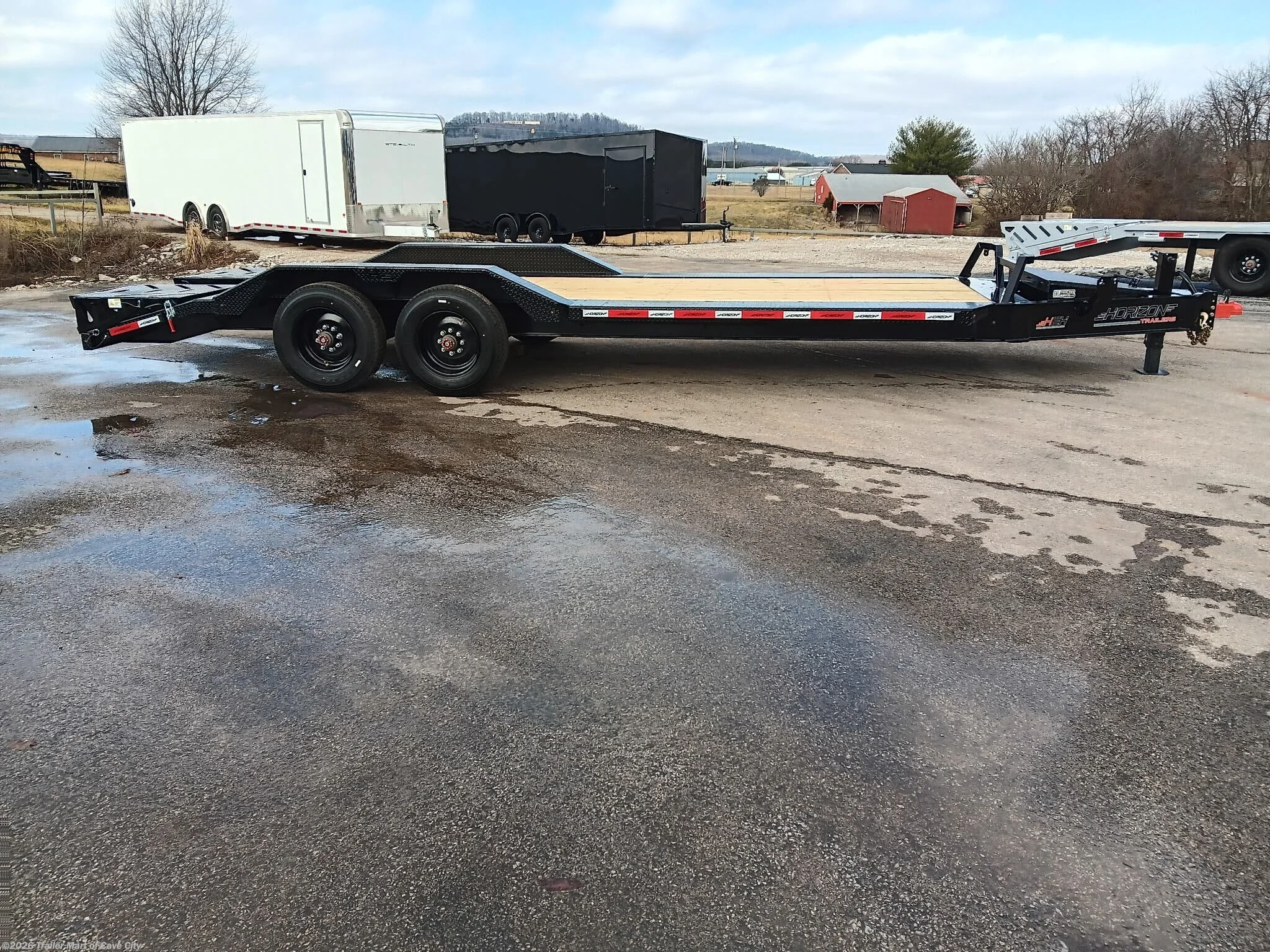

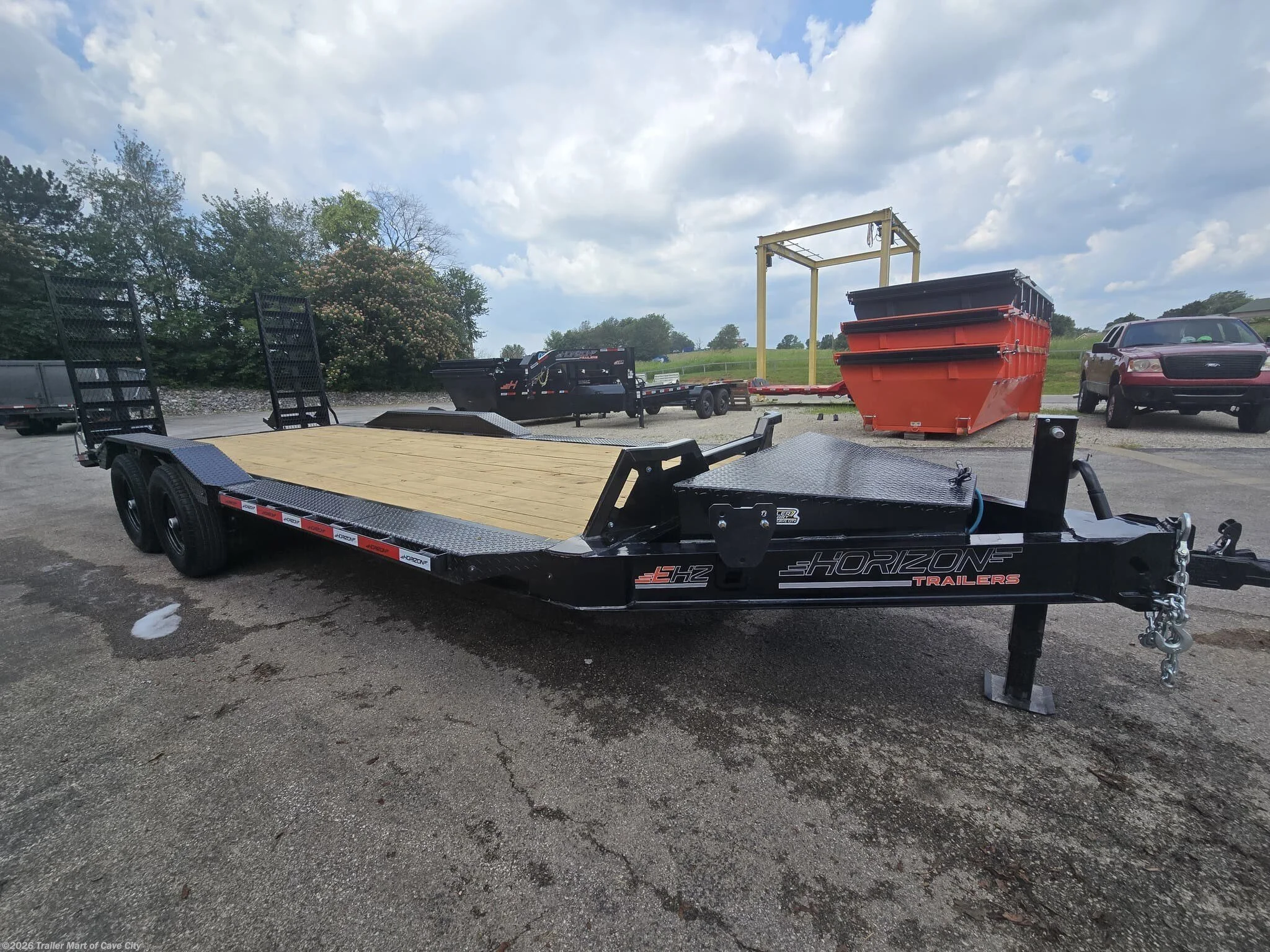

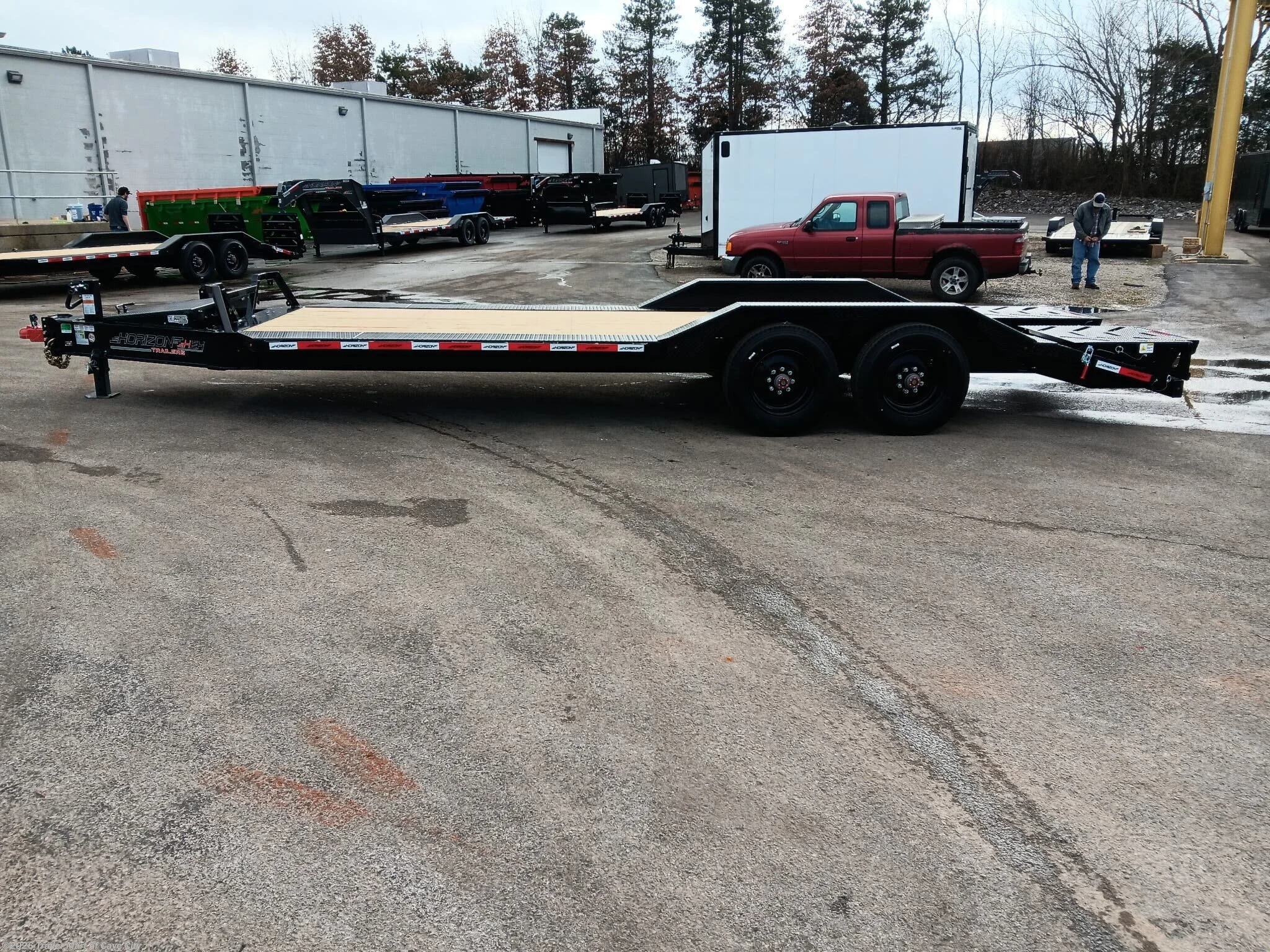

2025 Horizon Trailers HEH 22'- 10K Super Singles Equipment Trailer

Description:
TRAILER SPECS
LENGTH: 22'
DECK WIDTH: 102"
DECK HEIGHT: 25"
WEIGHT RATINGS
GAWR: 10,000 LBS
GVWR: 21,000 LBS

WARRANTY:
AXLE WARRANTY: 11 YEAR TORSION AXLE WARRANTY
TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY

TONGUE:
TYPE: 10" I-BEAM (17 LBS/FT)
LENGTH: 60"
SPARE: WELD ON SPARE TIRE MOUNT

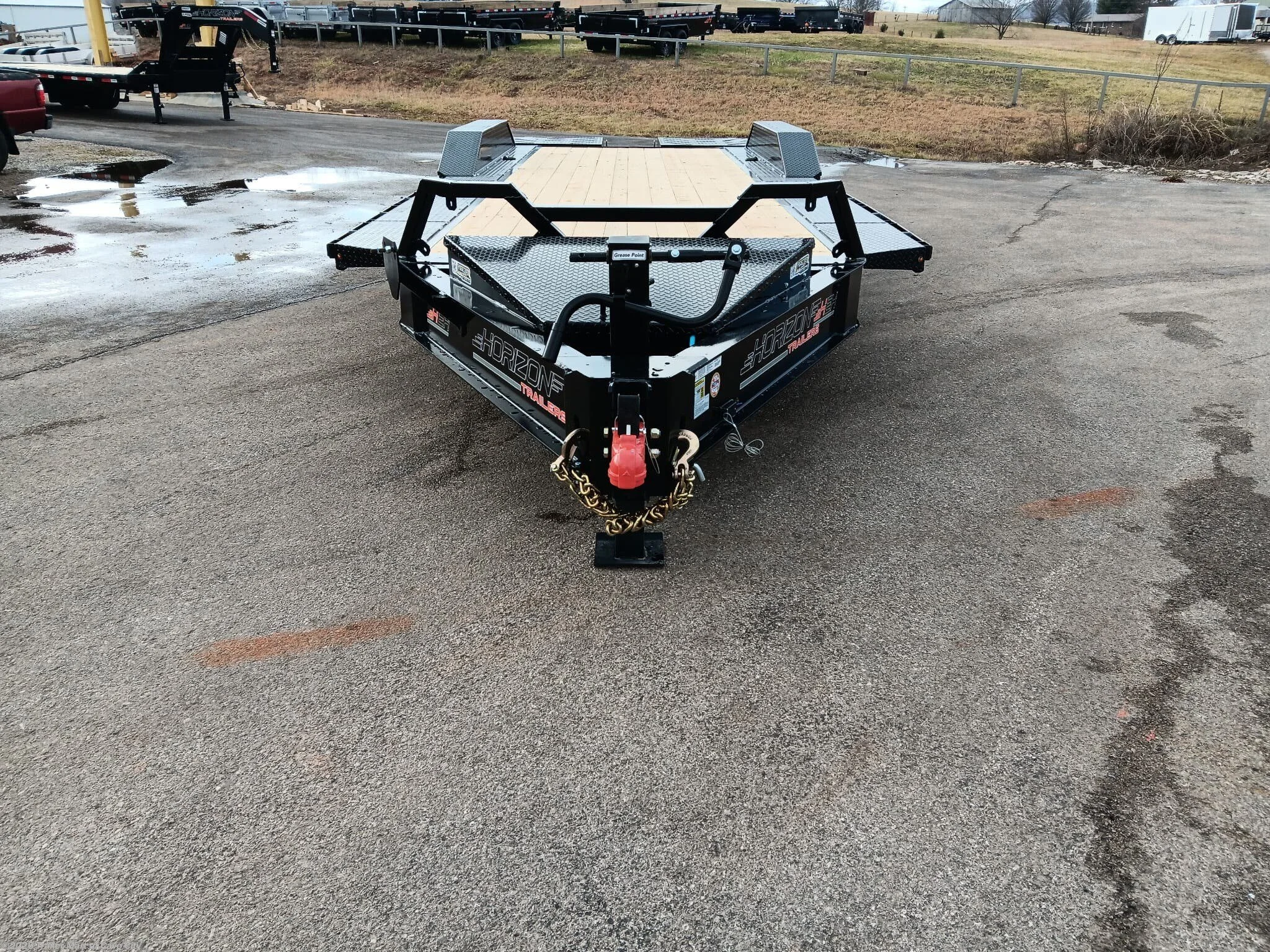

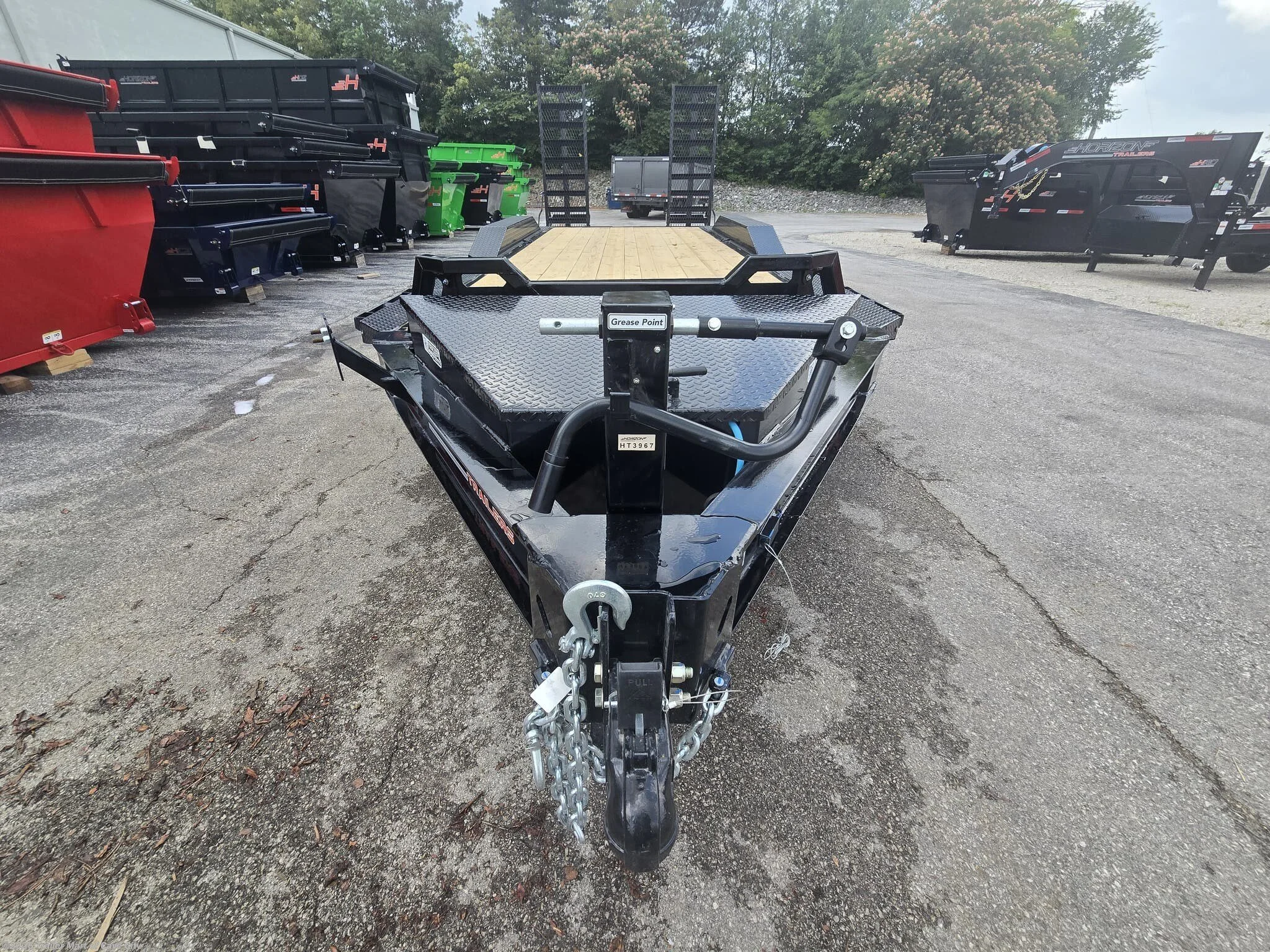

COUPLER:
STANDARD COUPLER : ADJUSTABLE DEMCO EZ LATCH 2-5/16" BP COUPLER (21,000 LBS)
JACK:
FRONT JACK : 1 SIDE WIND SPRING LOADED DROP JACK LEG (12,000 LBS)
TOOLBOX

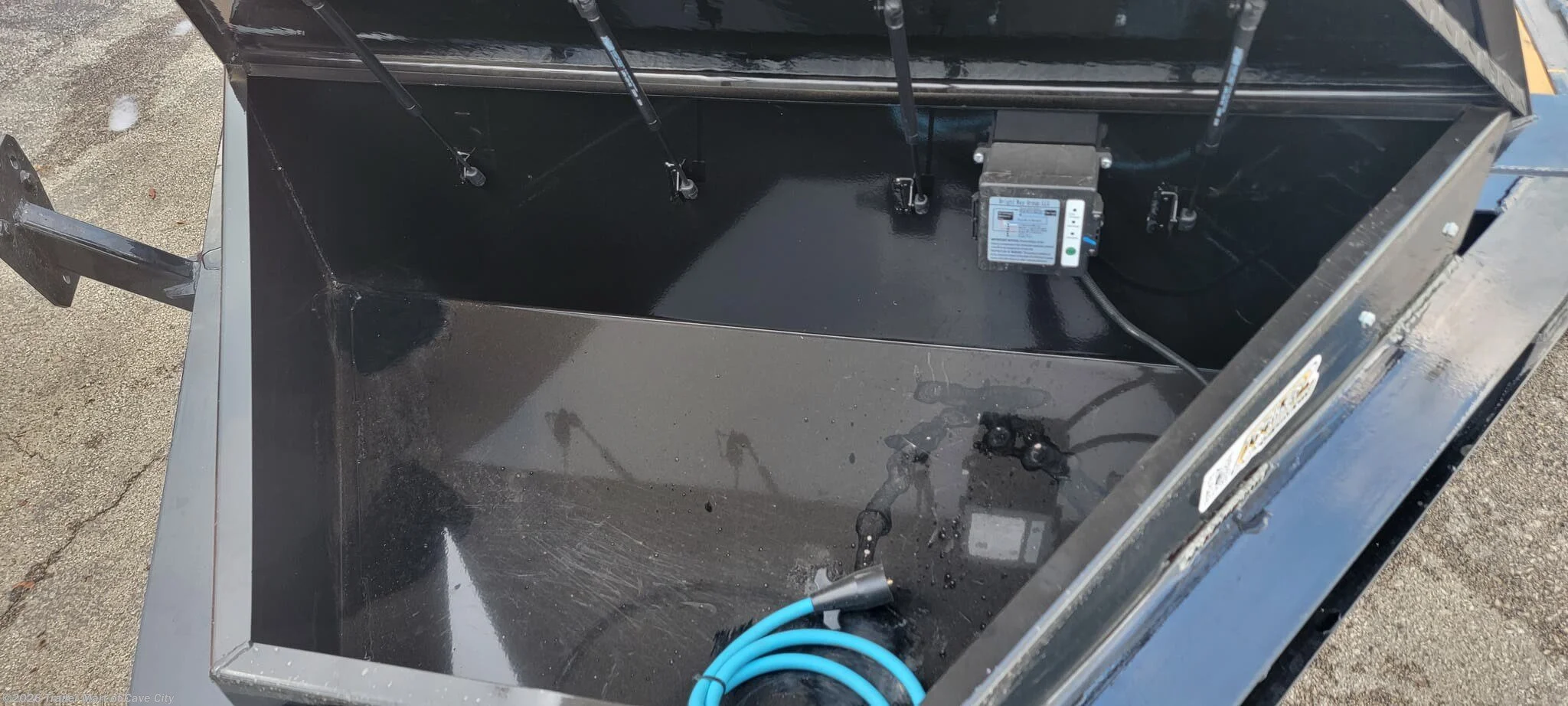

TOOLBOX : MEGA LOCKABLE TOOLBOX BP
SAFETY SYSTEM:
BREAKAWAY SYSTEM: 2382 BRIGHTWAY GROUP ELECTRIC BREAKAWAY KIT
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH)

CHASSIS
FRAME:
MAIN FRAME: 10" I-BEAM (17 LBS/FT)

DECK/BED
DECK WIDTH: 102"
WIDTH BETWEEN FENDERS: 82"
DECK HEIGHT: 25"
FLOORING: PINE LUMBER FLOOR
FRAME: FABRICATED 1/4" DIAMOND PLATE
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING
D-RINGS: 2 - D-RINGS IN BETWEEN FENDERS
FRONT:

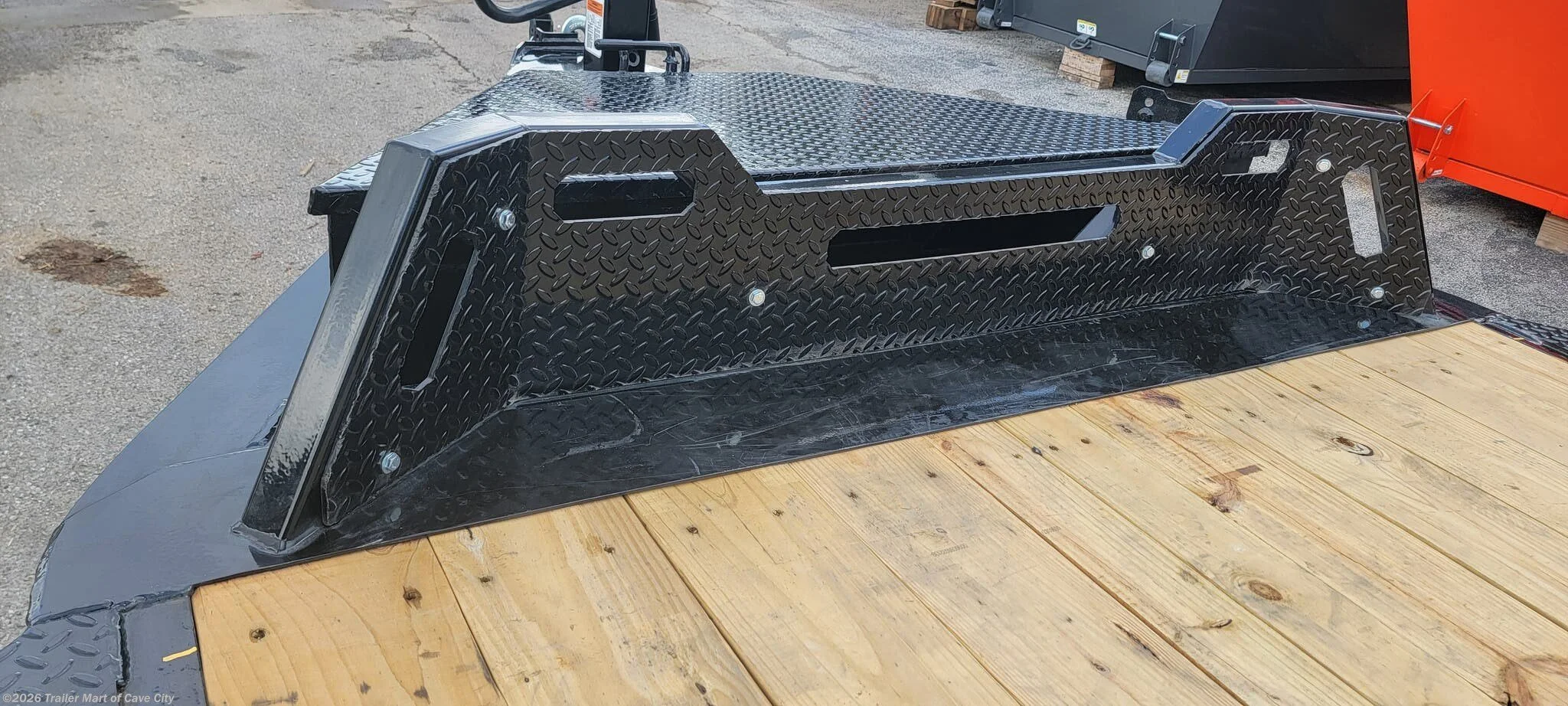

SHIELD: FRONT 2' HIGH STEEL ROCK GUARD
REAR:
DECK: 3' DOVETAIL

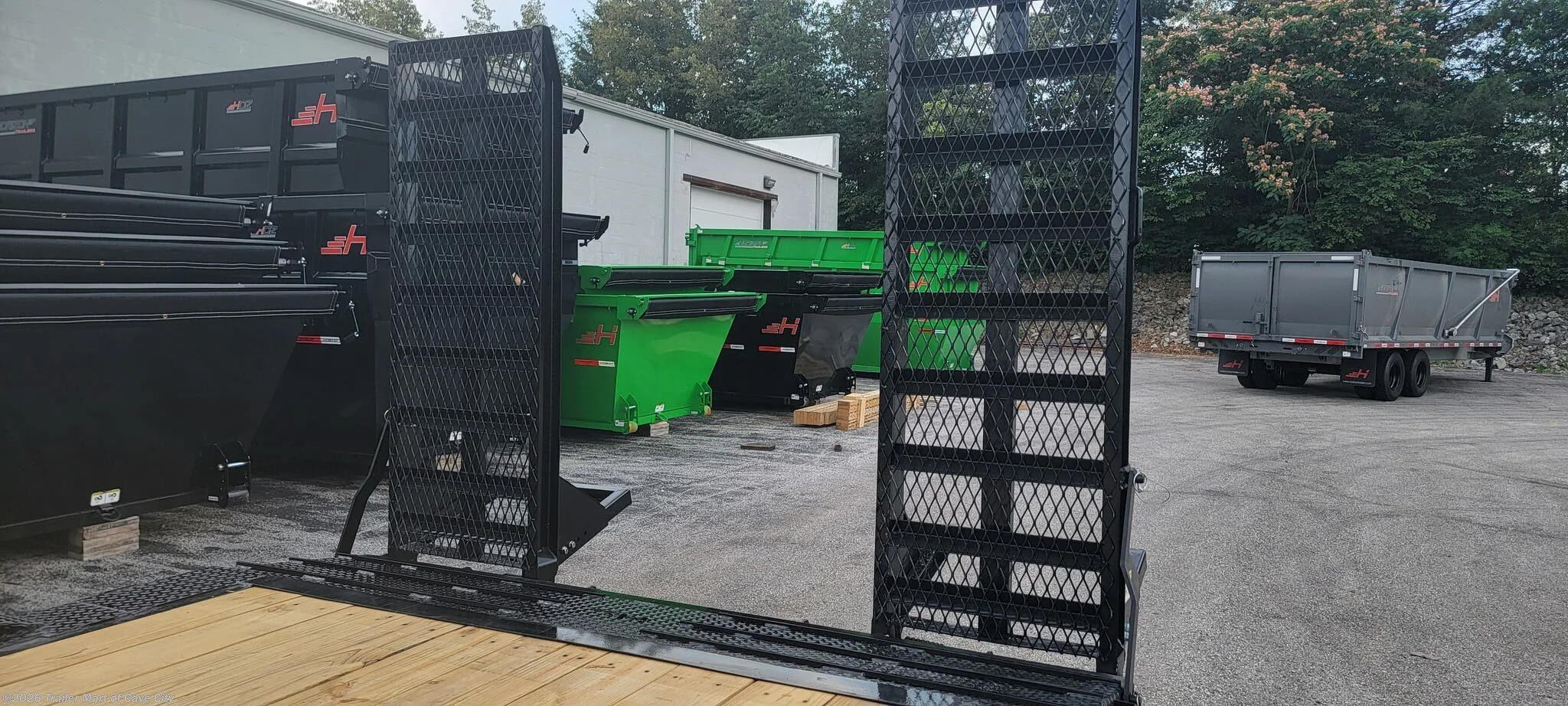

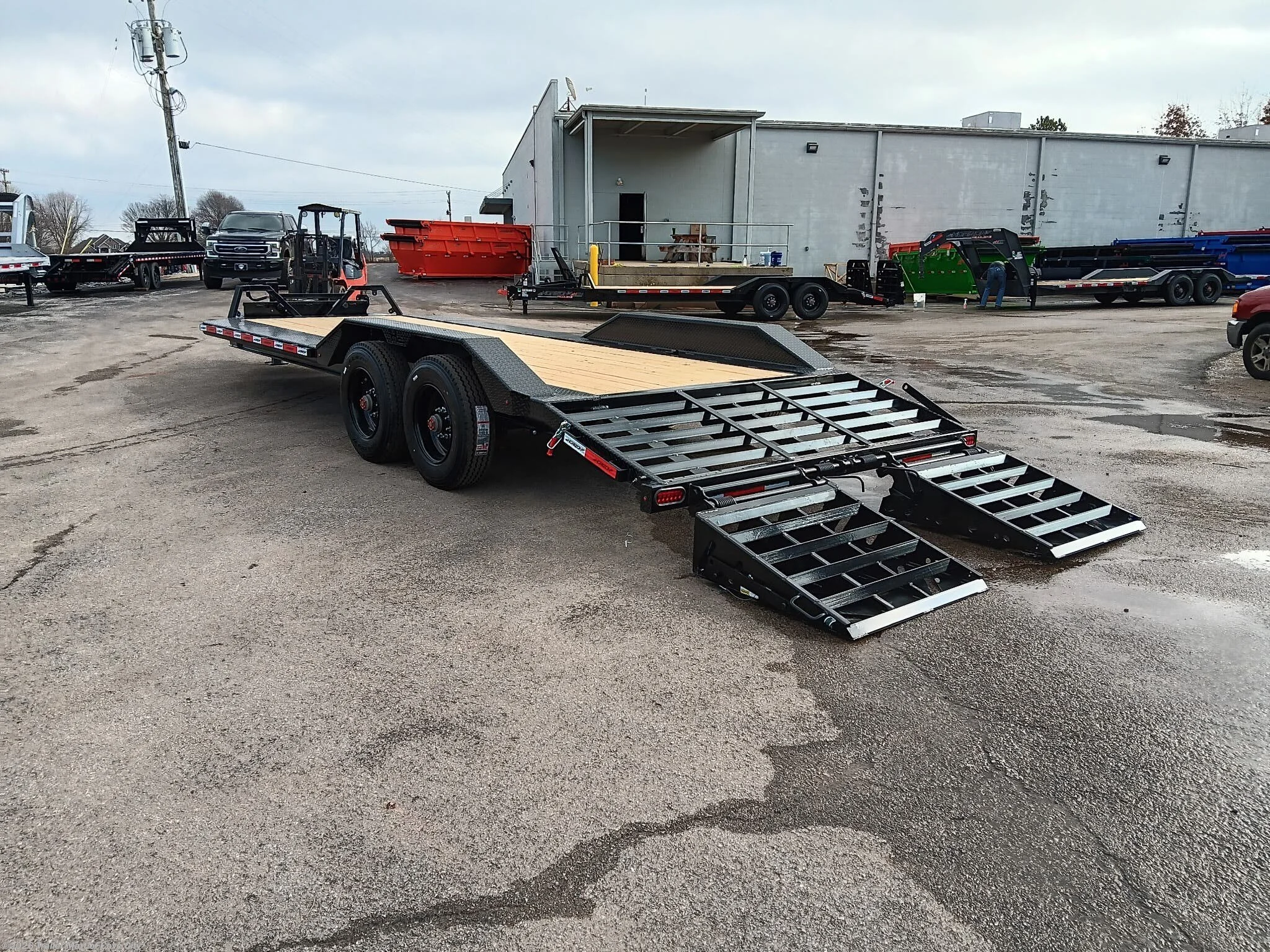

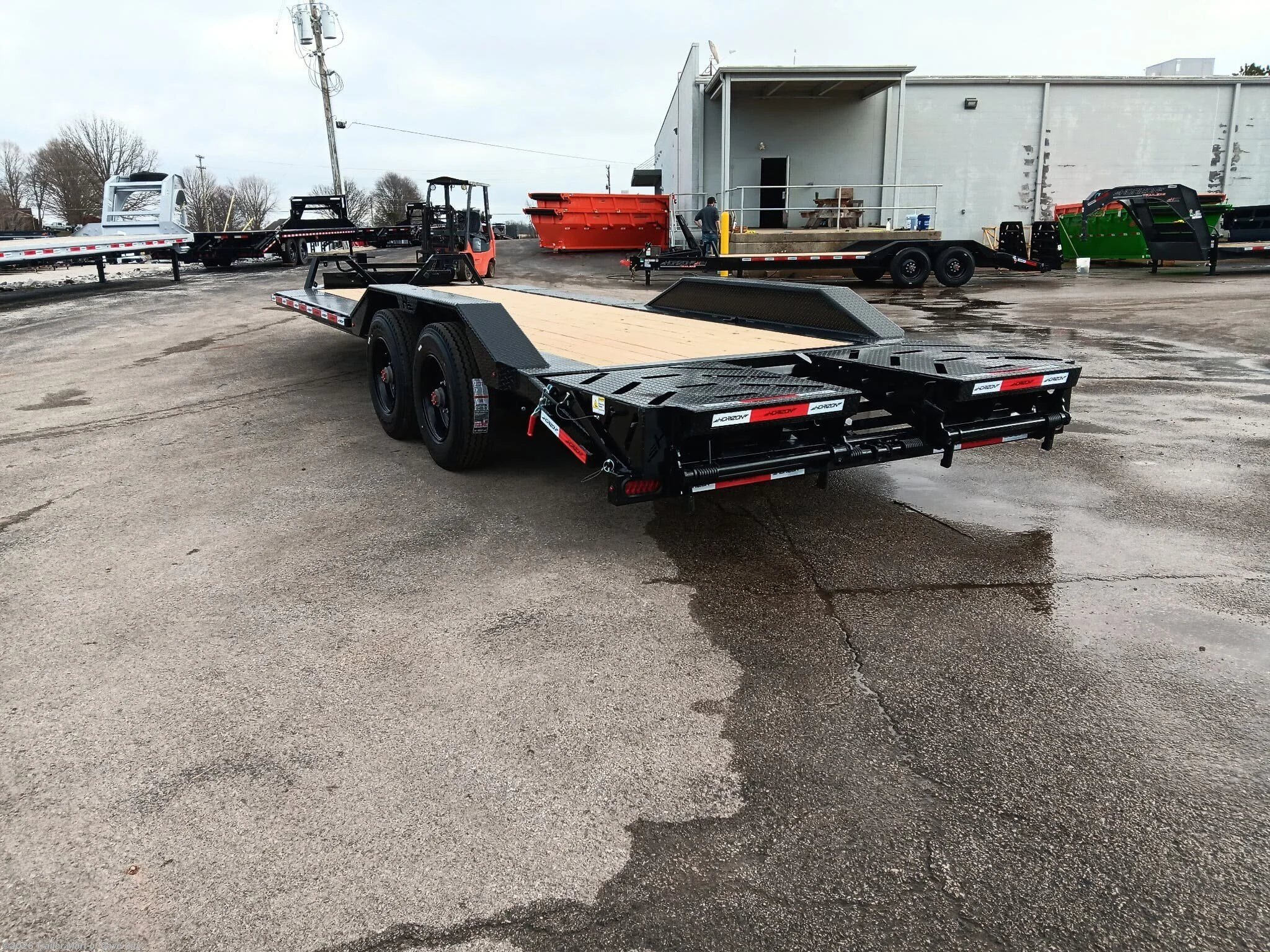

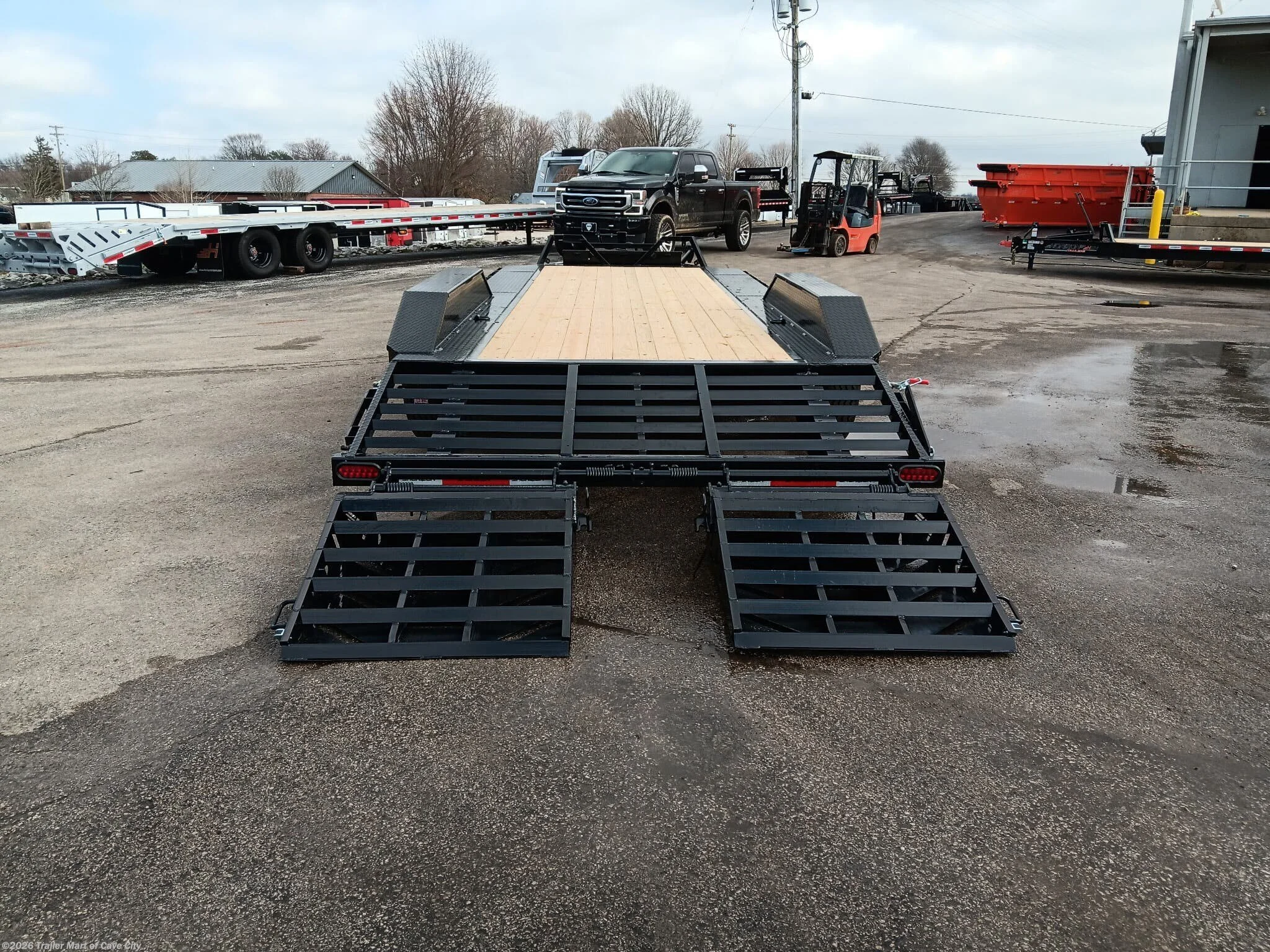

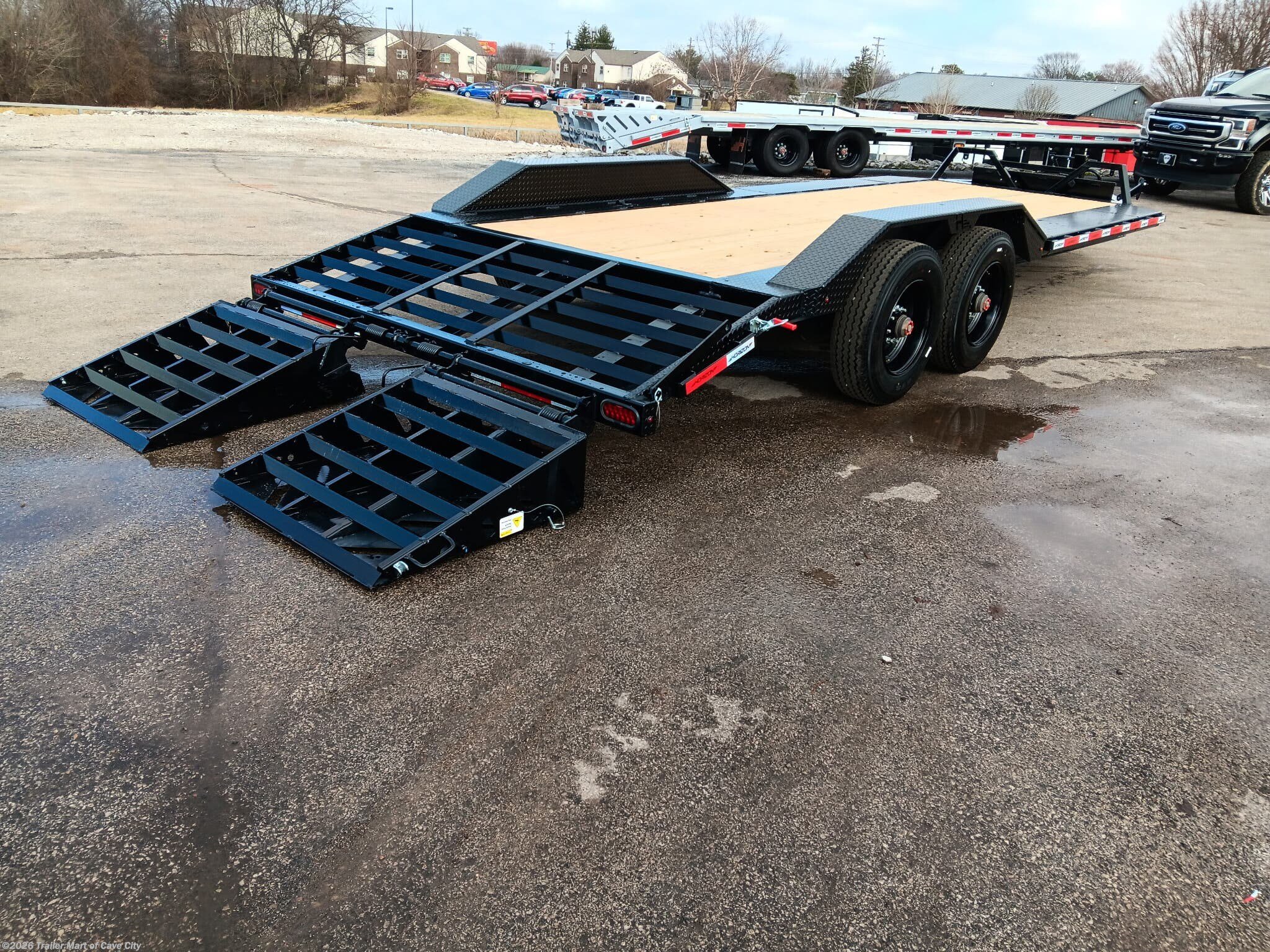

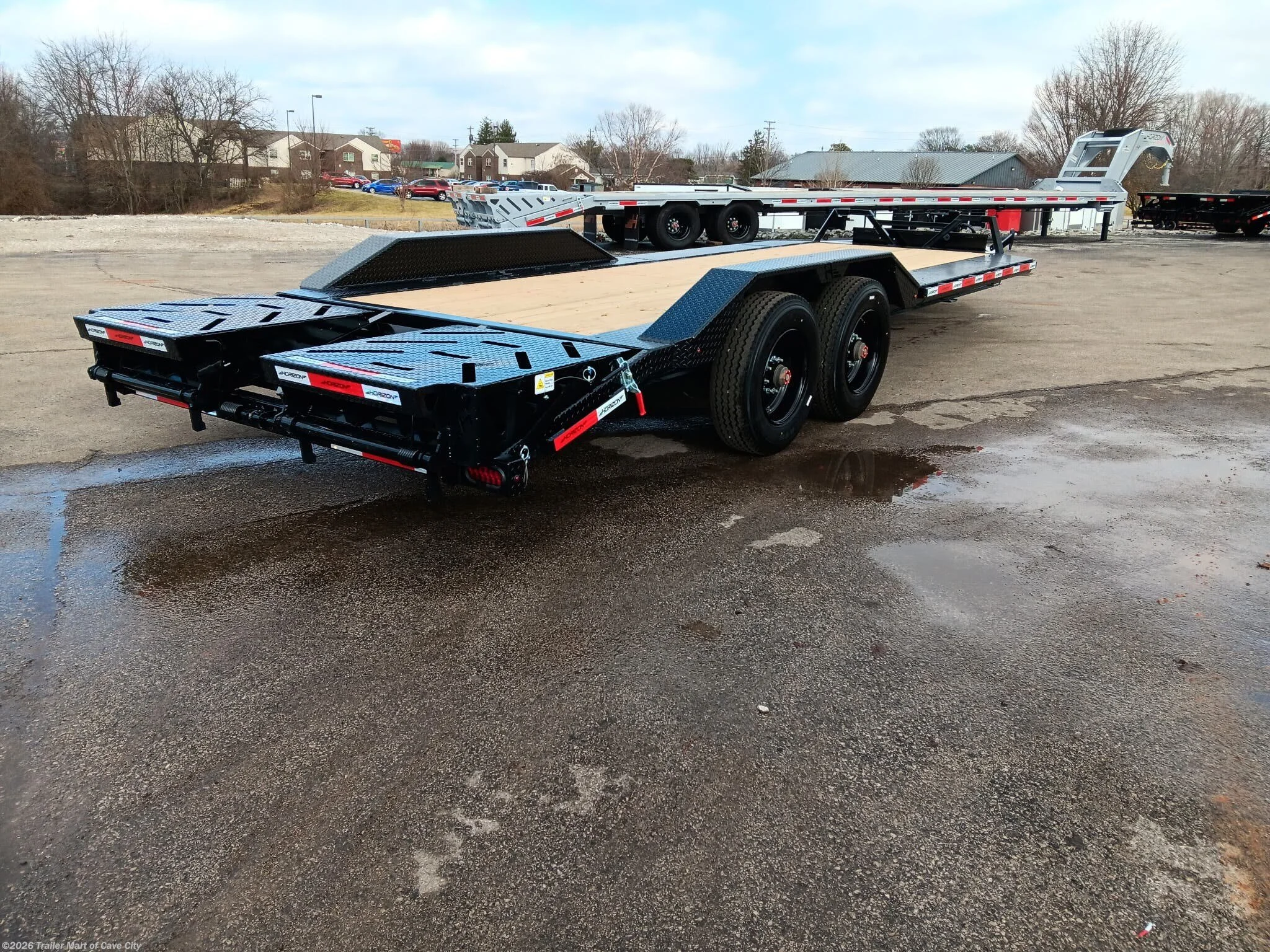

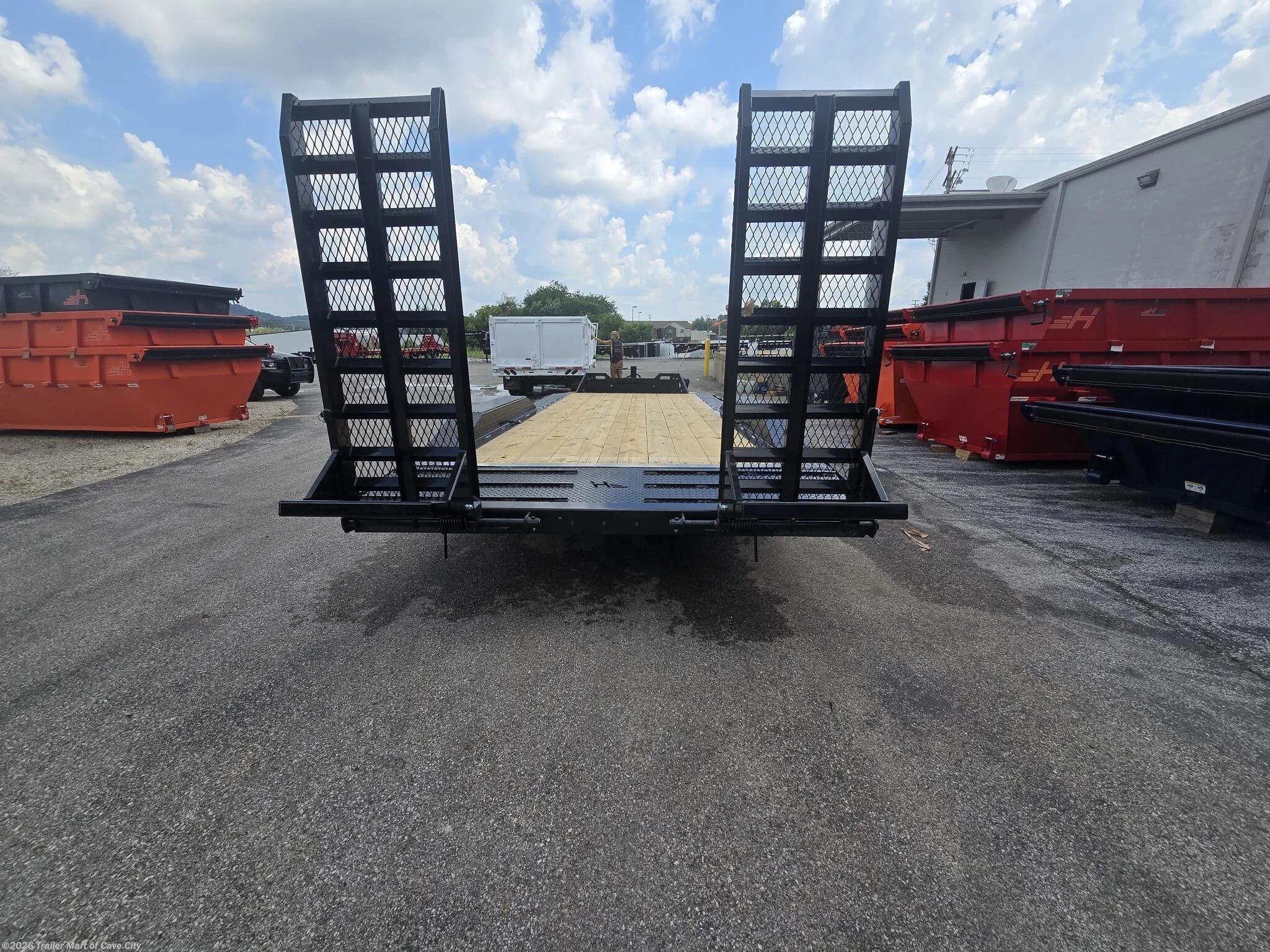

RAMPS: FOLD FLAT MOUNTAIN RAMPS
SIDES:
STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS (SPACED AT 24")
FENDERS: 14GA. DIAMOND PLATE STEEL DRIVE OVER FENDERS

RUNNING GEAR:

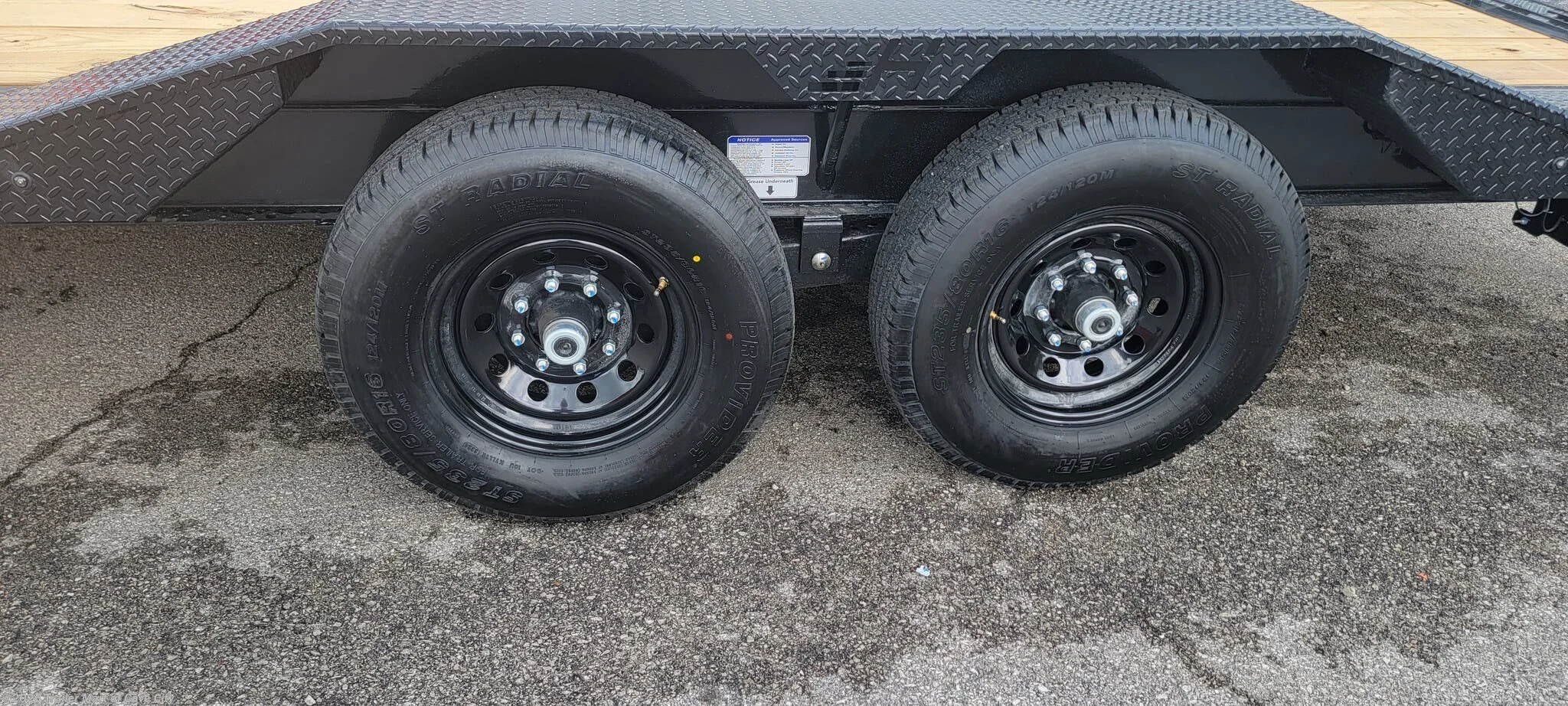

TIRES:
TYPE: RADIAL TIRES

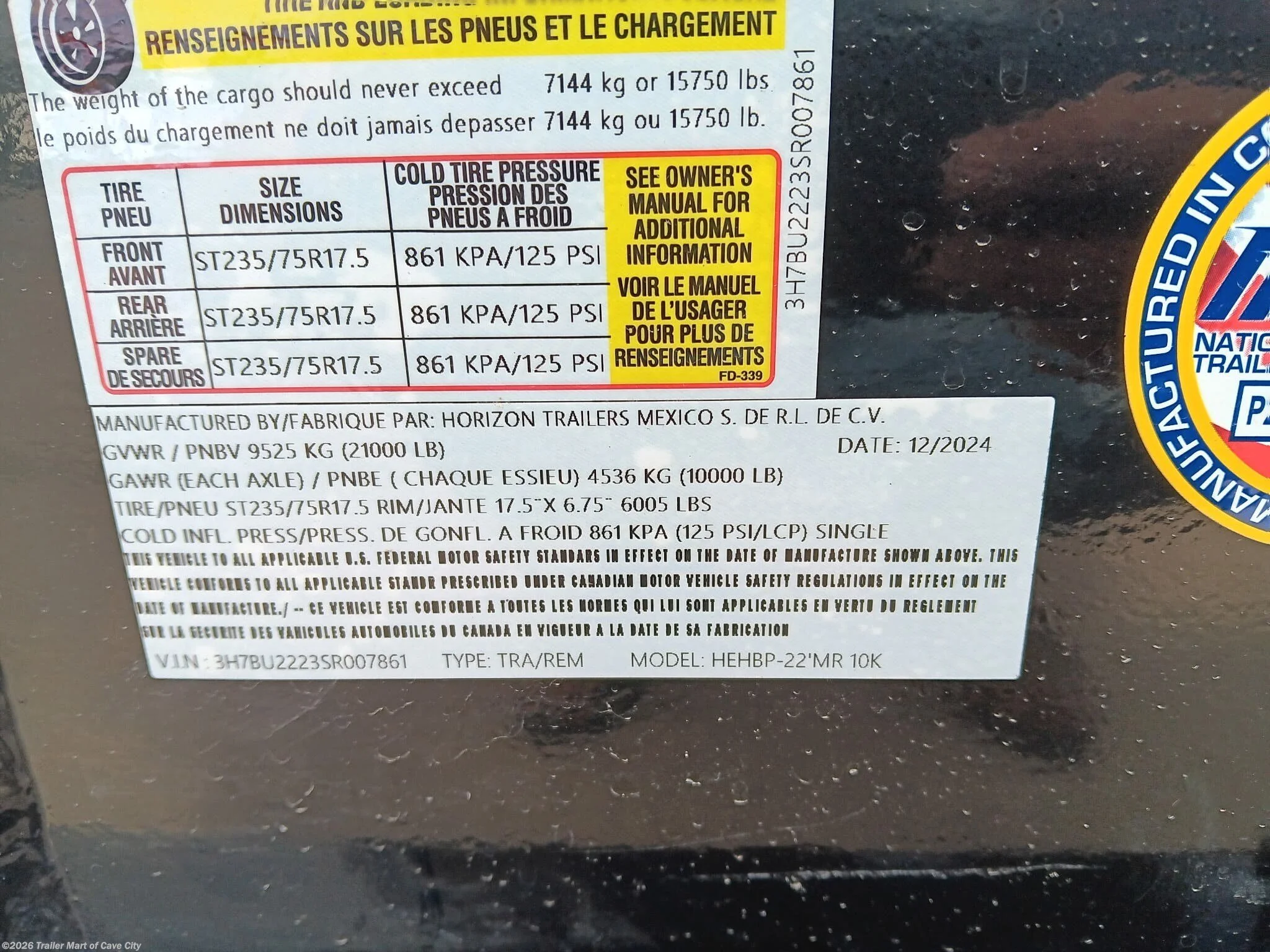

SIZE: ST235/75R17.5, SUPER SINGLE
PLY: 18
RATING: 6,005 LBS
RIMS: 17.5" BLACK MOD WHEELS

SUSPENSION:
AXLE TYPE: 2 - 10K ELECTRIC BRAKE OIL BATH TORSION AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: TORSION
AXLE WARRANTY: 11 YEAR TORSION AXLE WARRANTY

ELECTRICAL AND LIGHTING/BATTERY AND CHARGING:
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING:
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS

UPGRADES:
3' DOVE TAIL WITH 2 MOUNTAIN RAMPS

Specifications:

Condition: New

Exterior Color: Black

GVWR: 21,000 lb

Dry Weight: 5,250 lb

Payload Capacity: 15,750 lb

Hitch Type: Bumper Pull
