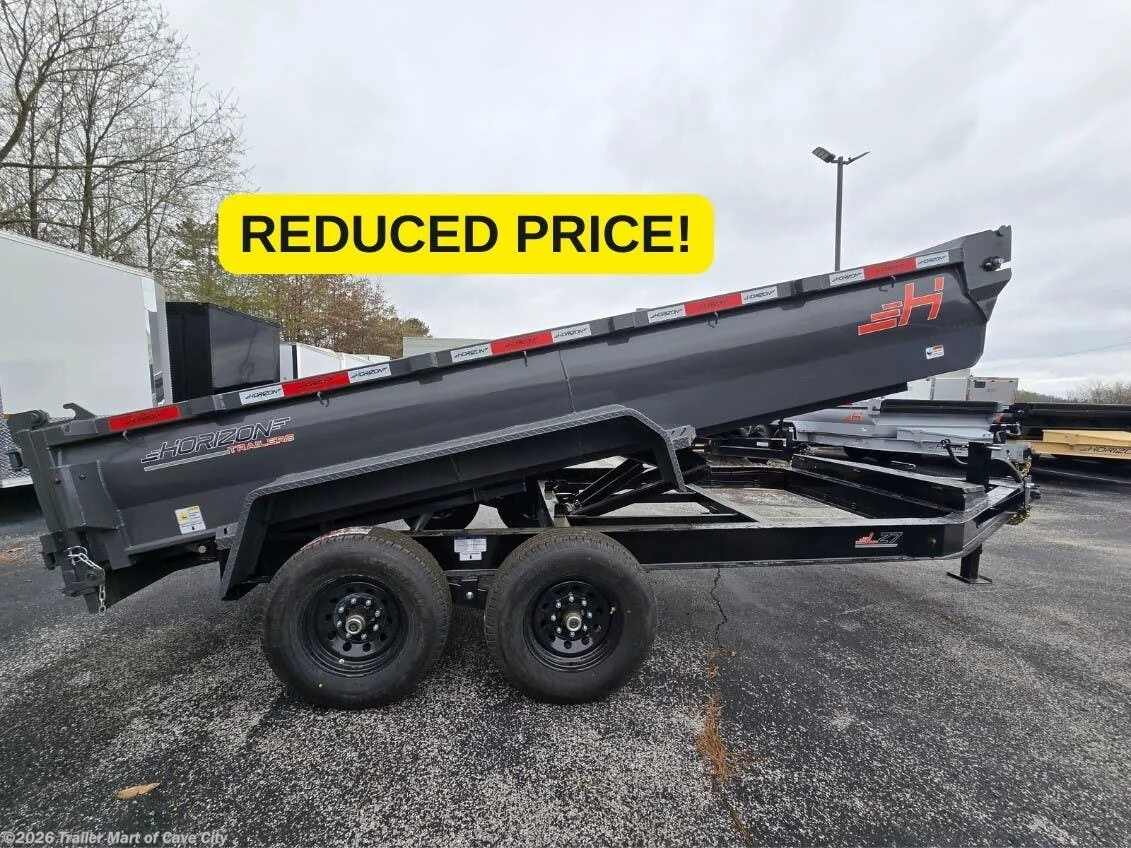

2025 Horizon Trailers HZ7 7'x14' 7k Dump Trailer

Description:
LENGTH: 14'
SIDE HEIGHT: 4'
BED WIDTH: 83"
BED HEIGHT: 28"
WEIGHT RATINGS
GAWR: 7,000 LBS

FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED

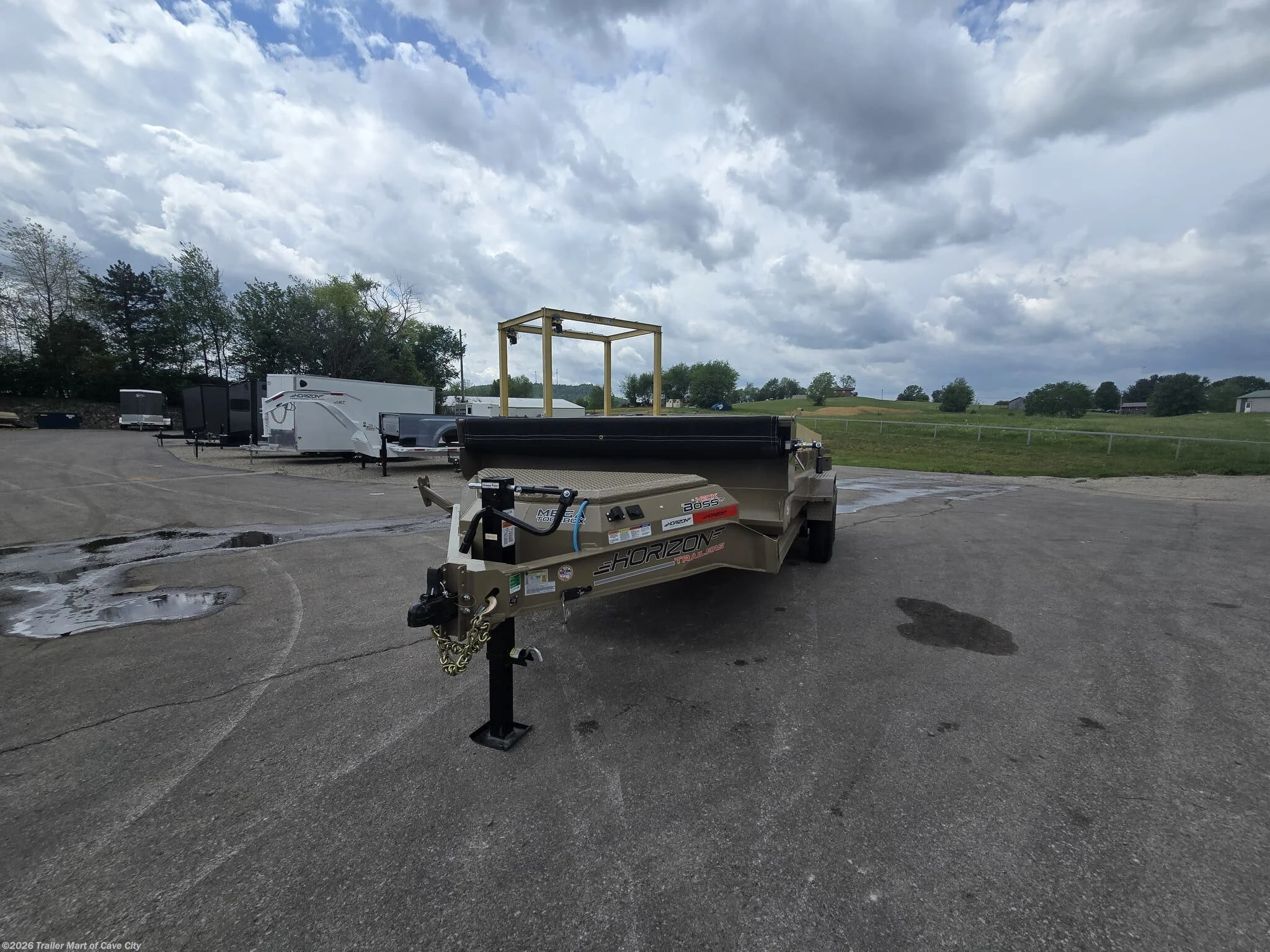

TONGUE
TYPE: 8" I-BEAM (13 LBS/FT)
LENGTH: 60"
SPARE: WELD ON SPARE TIRE MOUNT
STANDARD COUPLER: ADJUSTABLE DEMCO EZ LATCH 2-5/16" BP COUPLER (21,000 LBS)
FRONT JACK: 1 SIDE WIND SPRING LOADED DROP JACK LEG (12,000 LBS)

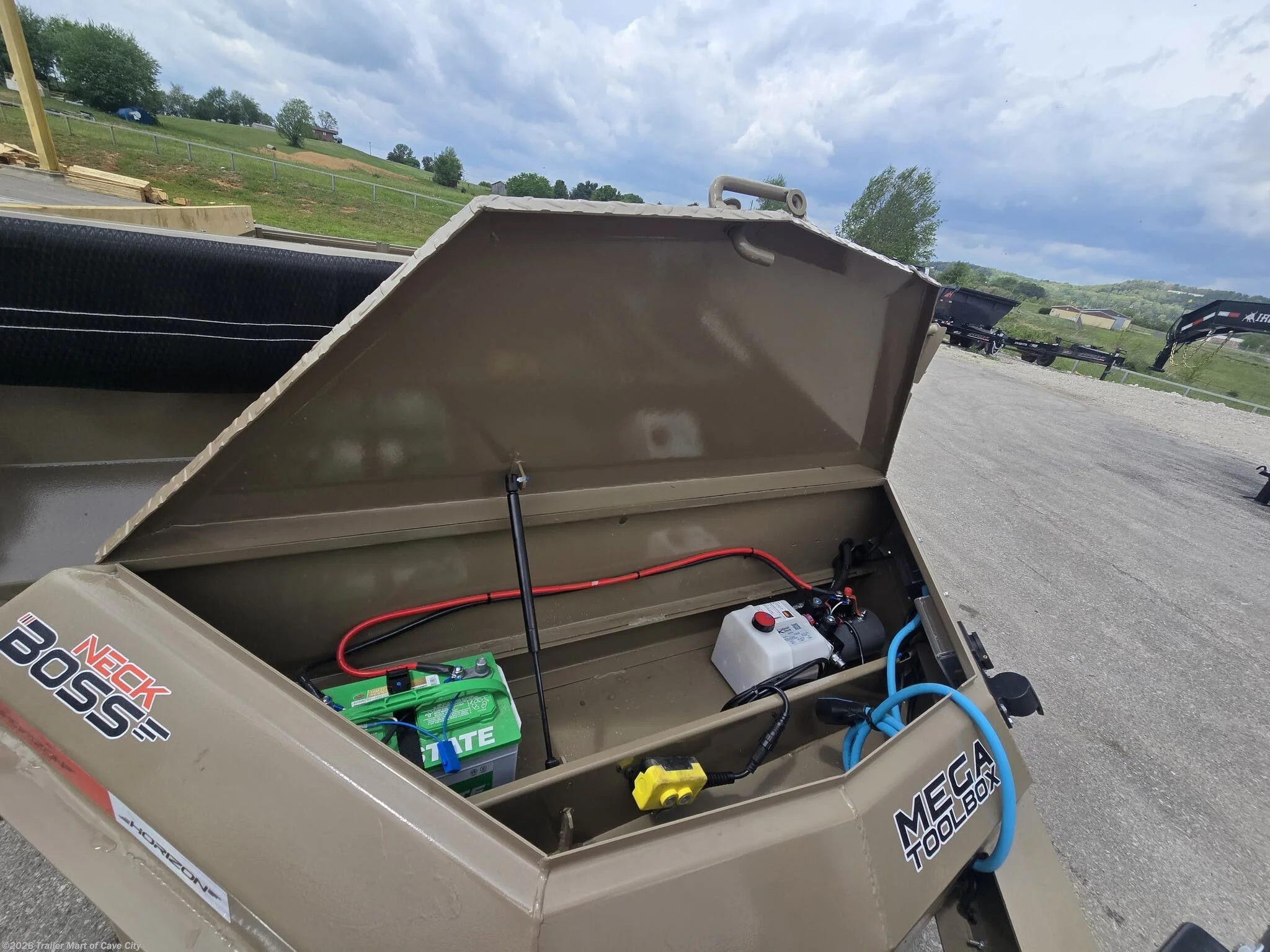

TOOLBOX: MEGA LOCKABLE TOOLBOX HOUSES BATTERY & PUMP (W/ EXTRA STORAGE)
SAFETY SYSTEM
BREAKAWAY SYSTEM:2382 BRIGHTWAY GROUP ELECTRIC BREAKAWAY KIT
SAFETY CHAINS:3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH)

CHASSIS
FRAMEMAIN FRAME: 8" I-BEAM (13 LBS/FT)
STEPS: SIDE STEP ON BOTH SIDES

BED
BED WIDTH: 83"
BED HEIGHT: 28"
FLOORING: 7GA. FLOOR
FRAME: 5" X 5" X 5/16" ANGLE IRON (10.3 LBS/FT)
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING
D-RINGS: 4 D RINGS WELDED INSIDE BOX

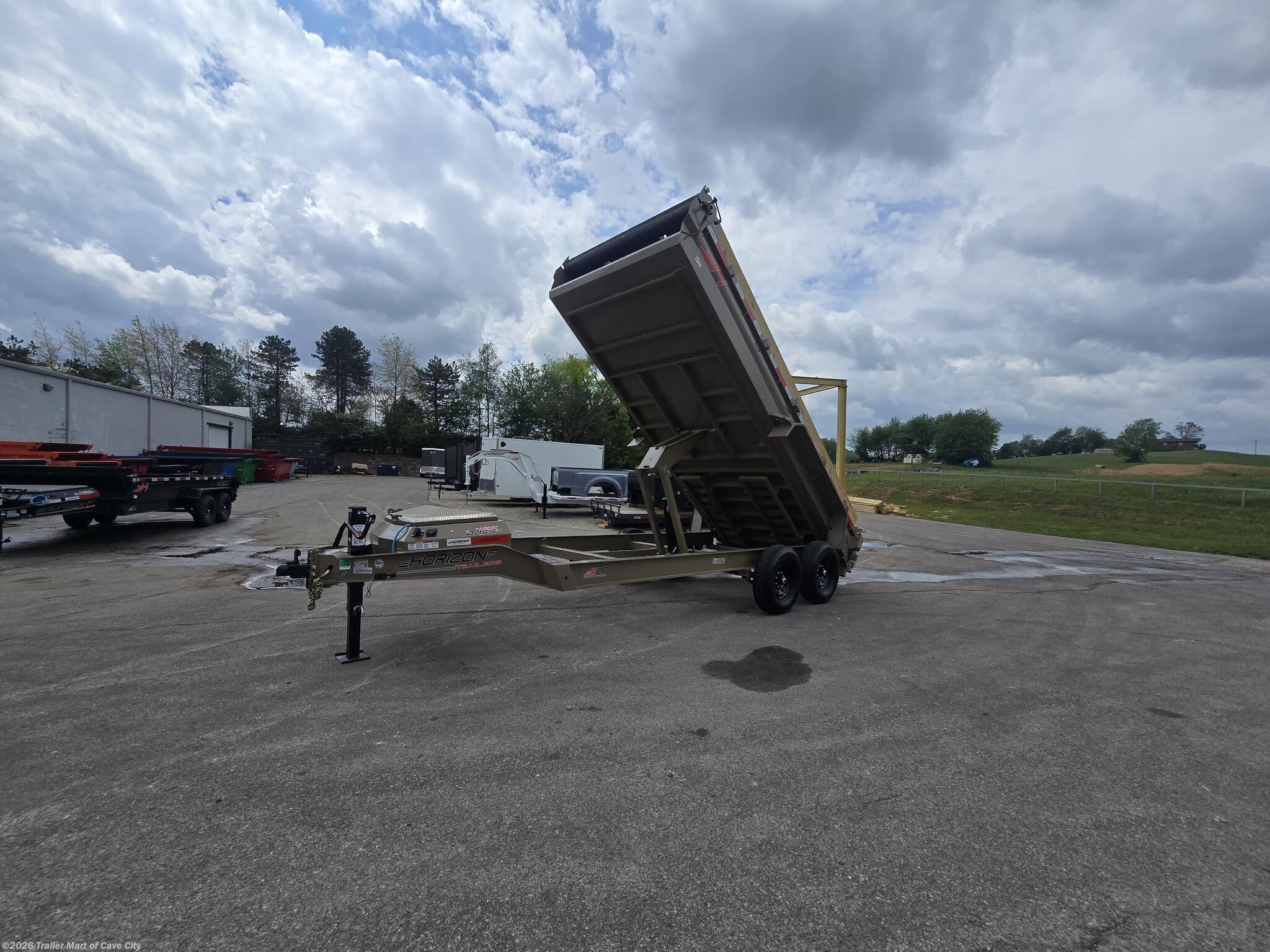

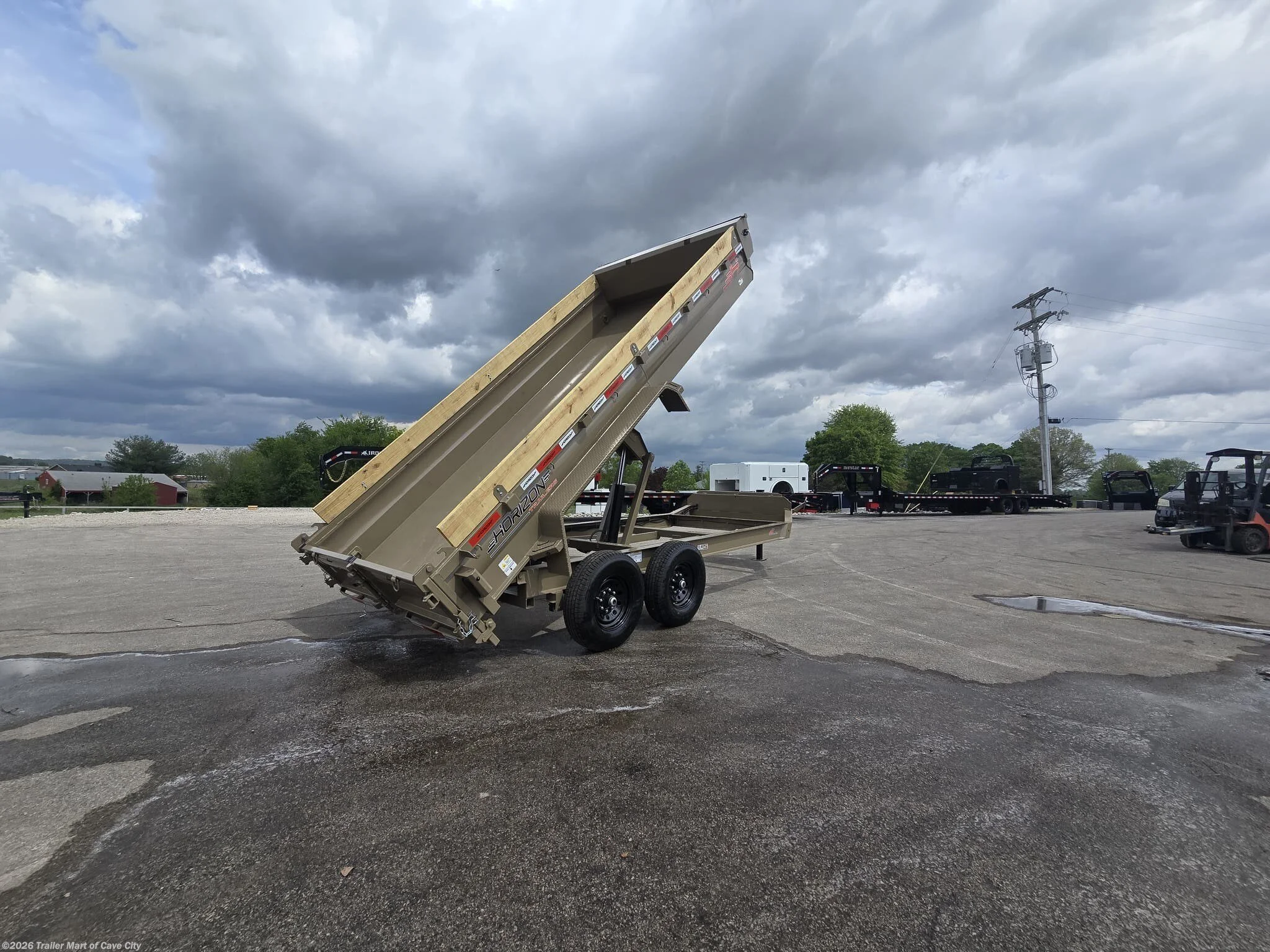

DUMP ANGLE: 39° - 49°

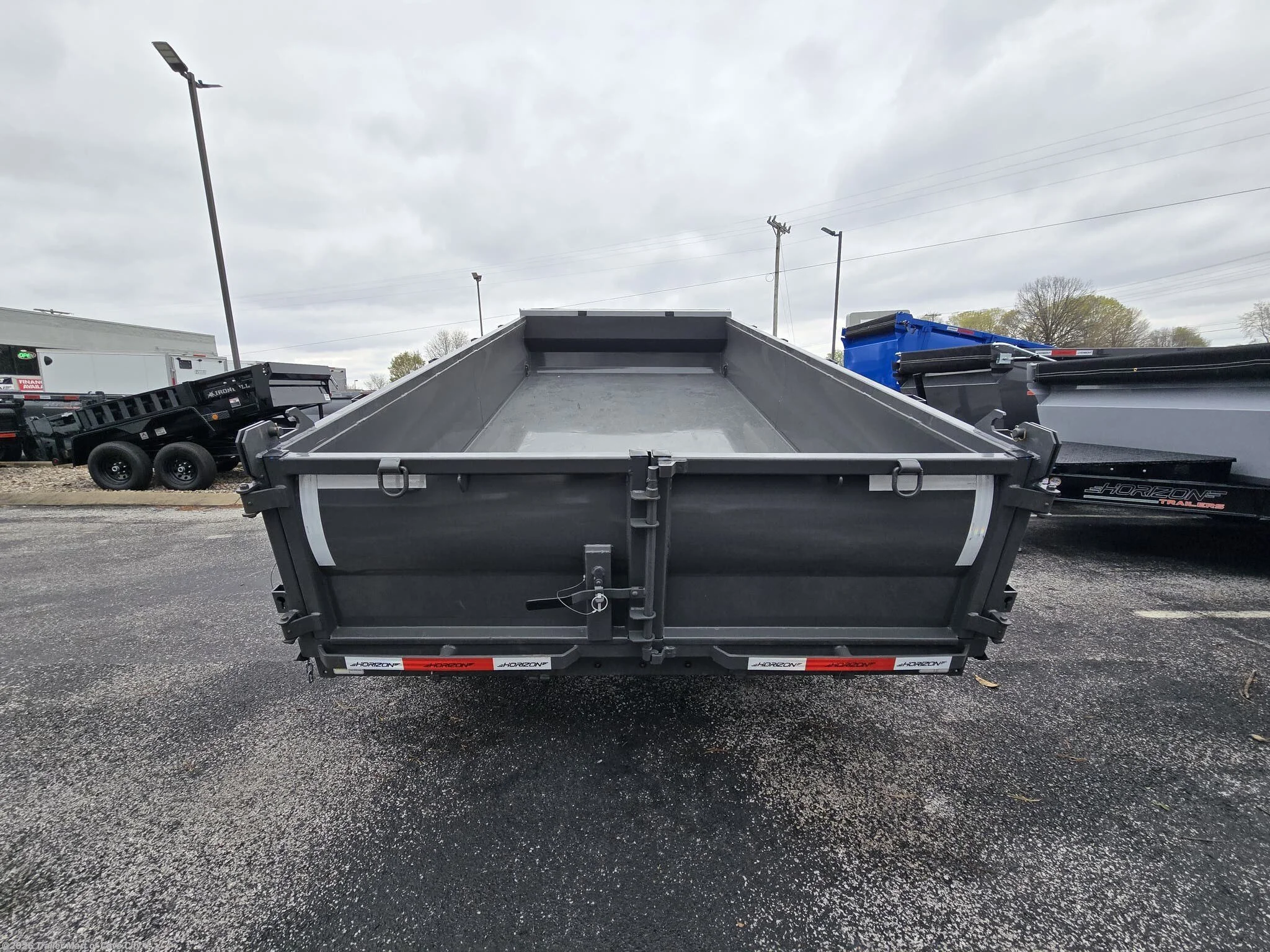

REAR
GATE: 2 WAY DOOR
RAMPS: RAMP POCKETS W/2 - 6' 4" HEAVY DUTY SLIDE IN 4" CHANNEL RAMPS (5,000 LBS EACH)
REAR STANDS: PAIR OF REAR STABILIZER STANDS
SIDES
HEIGHT: 4'
THICKNESS: 10GA.
TYPE: ROUNDED STEEL
TOP RAIL: 3" X 5" X 11GA. TUBING
STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS
HOOKS: 3/8" ROUND "L" HOOKS
FENDERS: 12GA. DIAMOND PLATE STEEL FENDERS
SAFETY
TARP: MANUAL TARP KIT


LIFT SYSTEM
HYDRAULICS
SYSTEM: HYDRAULIC - POWER UP / GRAVITY DOWN
PUMP:    KTI 12V HYDRAULIC PUMP
CONTROLLER:    14' CONTROL CABLE
14', 16' DUMP LIFT
CYLINDER:    6" X 21" SINGLE PUSH CYLINDER
HOIST CAPACITY: 20,000 LBS

RUNNING GEAR
TIRES
TYPE: RADIAL TIRES
SIZE: ST235/80R16
PLY: 14
RATING: 3,520 LBS
RIMS: 16" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 2 - 7K ELECTRIC BRAKE EZ LUBE SPRING AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT:    2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY

BATTERY AND CHARGING
BATTERY: 1 - INTERSTATE 27 DEEP CYCLE BATTERY
CHARGING SYSTEM:    110V INTEGRATED TRICKLE CHARGER
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE

UPGRADES:
7.5W SOLAR PANEL
42" SIDE DOOR

Specifications:

Condition: New

Exterior Color: Ash Gray/Blue

GVWR: 15,260 lb

Dry Weight: 5,690 lb

Payload Capacity: 9,570 lb

Hitch Type: Bumper Pull
