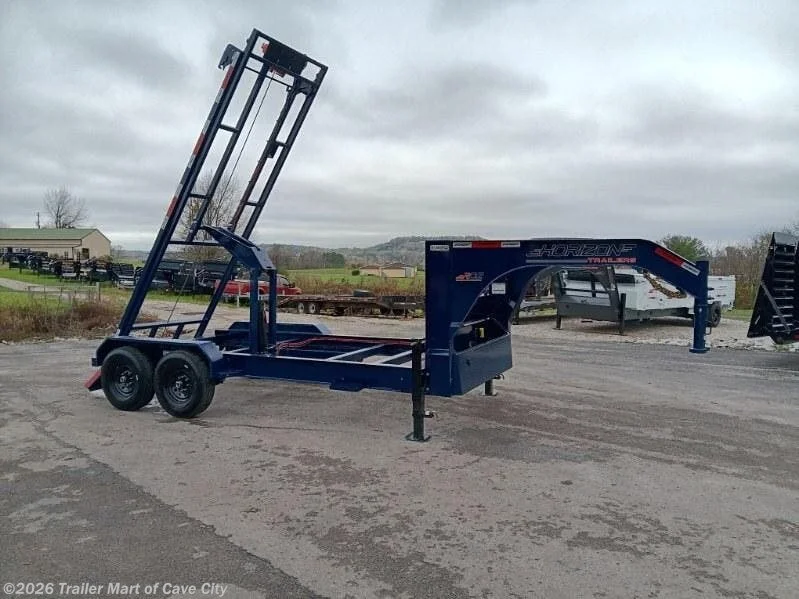

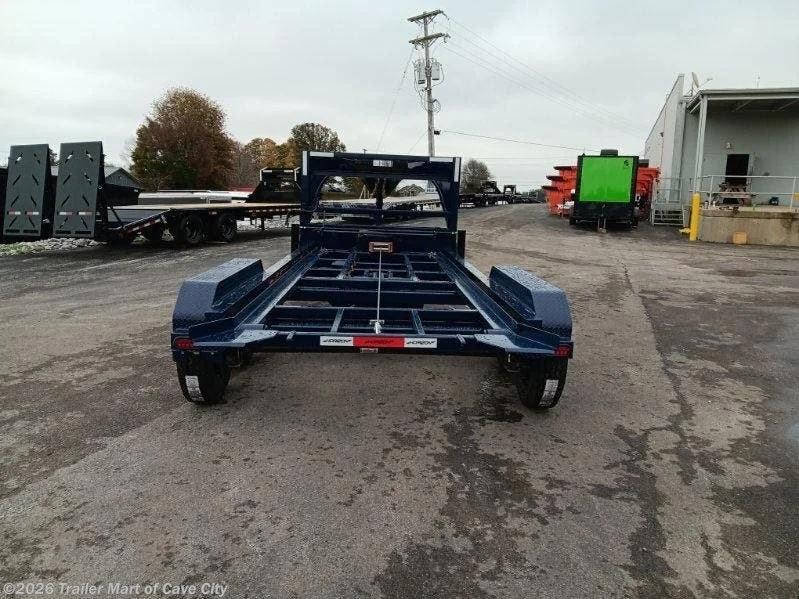

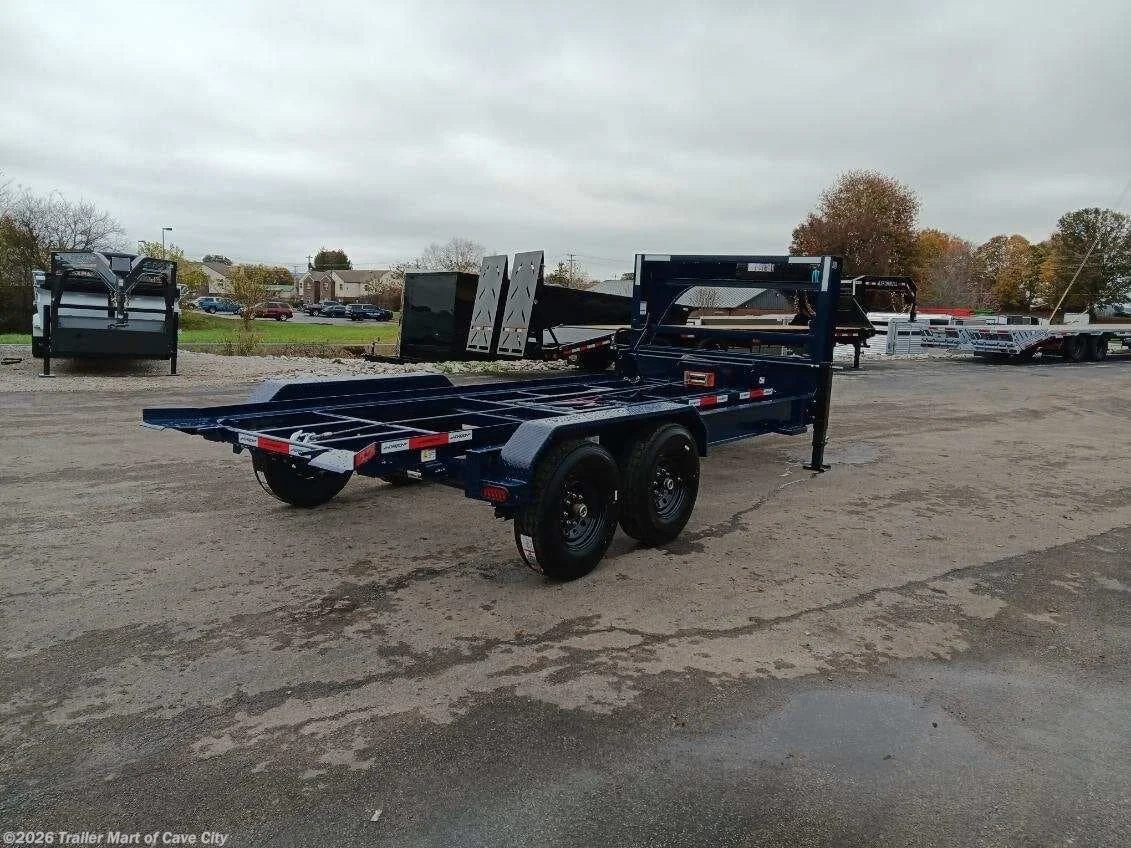

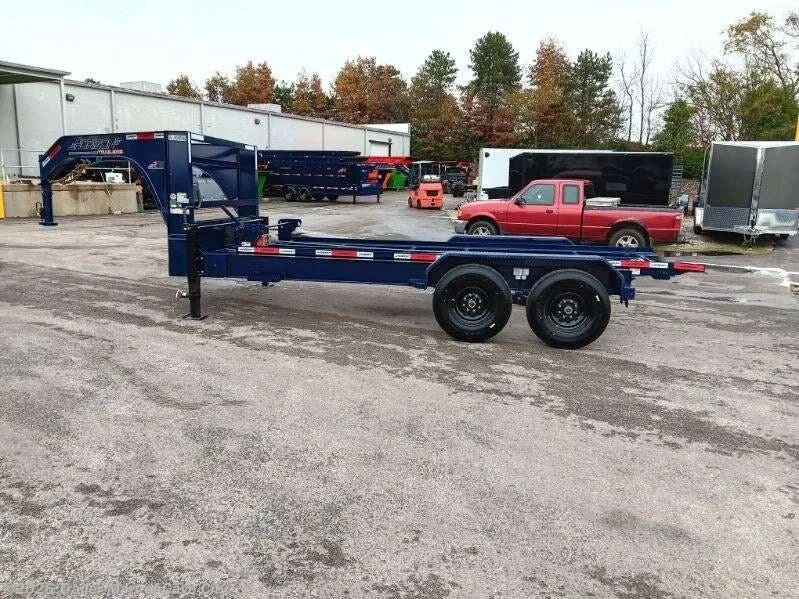

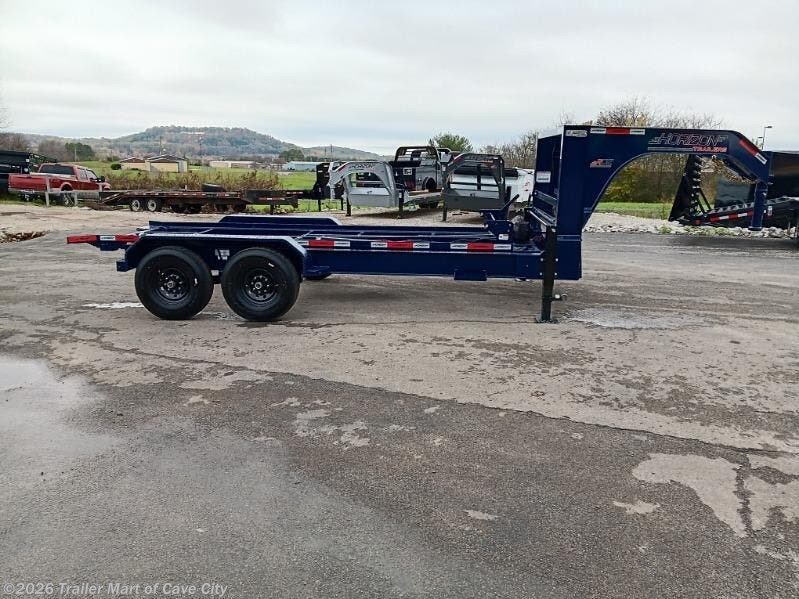

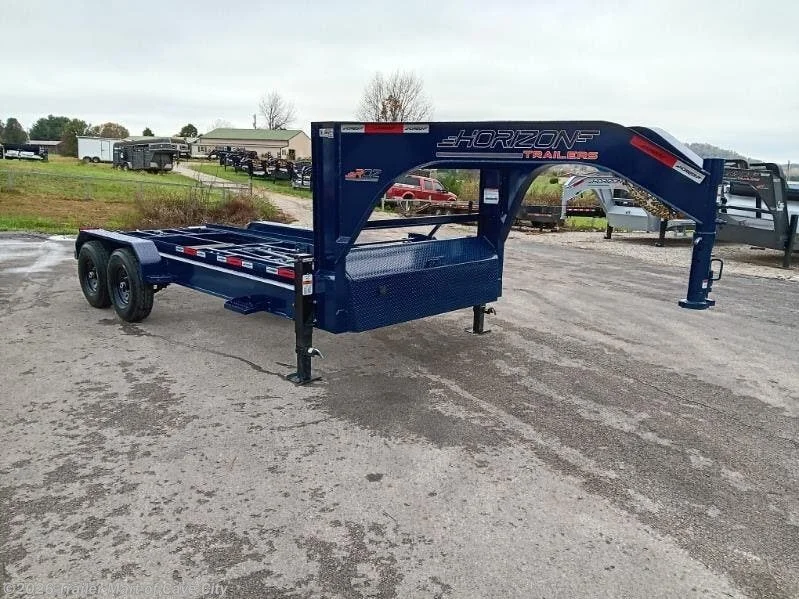

2025 Horizon Trailers RDZ 16' Gooseneck Roll-Off Trailer

Built for contractors who need additional deck length without stepping into a heavier GVWR class, this 16’ Gooseneck Roll-Off Trailer delivers durability, hydraulic power, and dependable hauling performance. With a 20,000 lb hoist system, 17.5K Warrior winch, and upgraded 14-ply tires, this unit is ready for serious jobsite demands.

Unit Overview

Condition: New
Exterior Color: Navy Blue
GVWR: 15,680 lb
Dry Weight: 4,020 lb
Payload Capacity: 11,660 lb
Hitch Type: Gooseneck

Dimensions

• Deck Length: 16’

• Deck Width: 61”

• Deck Height: 30”

• Estimated Tongue Weight: 800–900 lb

• Loading Angle: 55°

• Dump Angle: 40°

Weight Ratings

• GAWR: 7,000 lb (per axle)

• GVWR: 15,680 lb

Frame & Construction

• 10” I-Beam Main Frame (12 lb/ft)

• 10” I-Beam Gooseneck (12 lb/ft)

• 2” x 3” x 7ga Tubing Bed Frame

• 2” x 3” x 7ga Crossmembers

• 3” x 4” x 1/4” Angle Iron Sides

• 14ga Diamond Plate Steel Fenders

• Steel Grit Blasted

• Powdercoat Finish

• Weld-On Spare Tire Mount

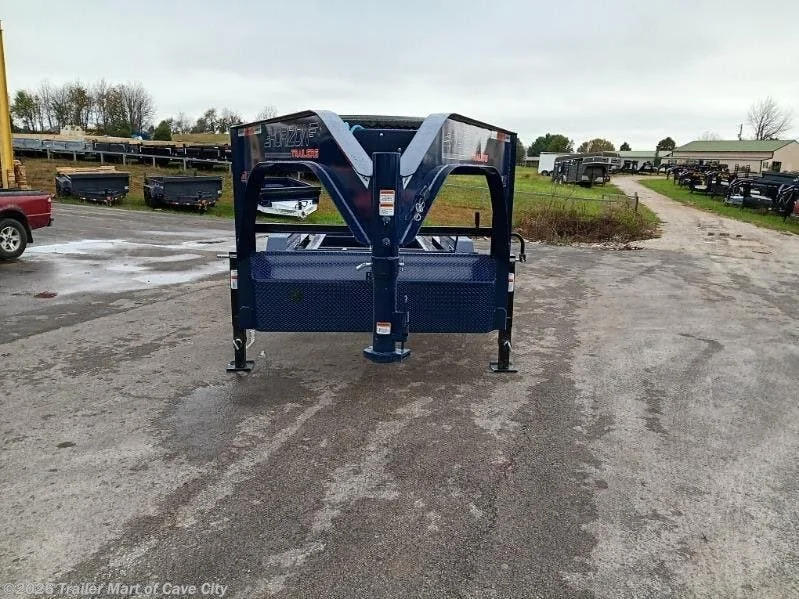

Coupler, Jacks & Safety

• Adjustable 2-5/16” Gooseneck Coupler (30,000 lb rated)

• (2) 12K Side Wind Drop Jack Legs

• Lockable Gooseneck Toolbox (Houses Batteries & Pump)

• Brightway Group Electric Breakaway Kit

• 3/8” Grade 70 Safety Chains (2)

• (2) 1/4” Grade 30 Roll-Off Safety Chains

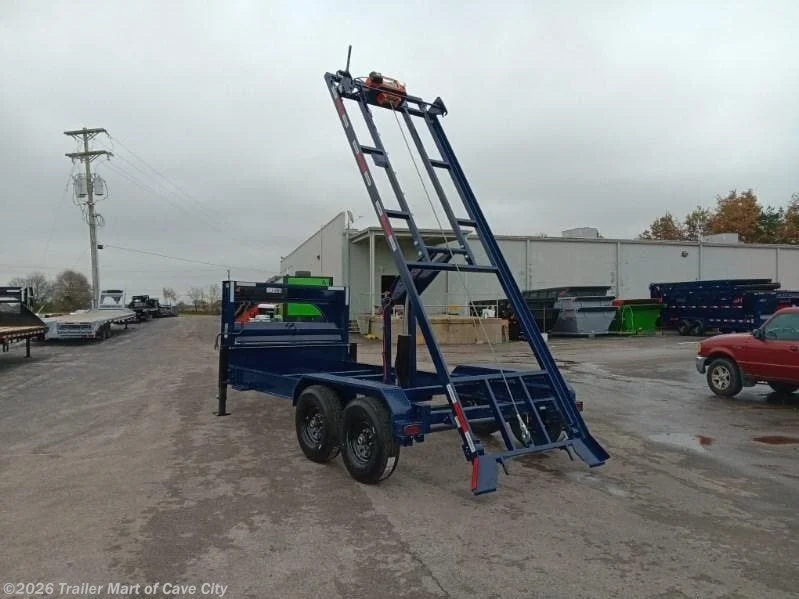

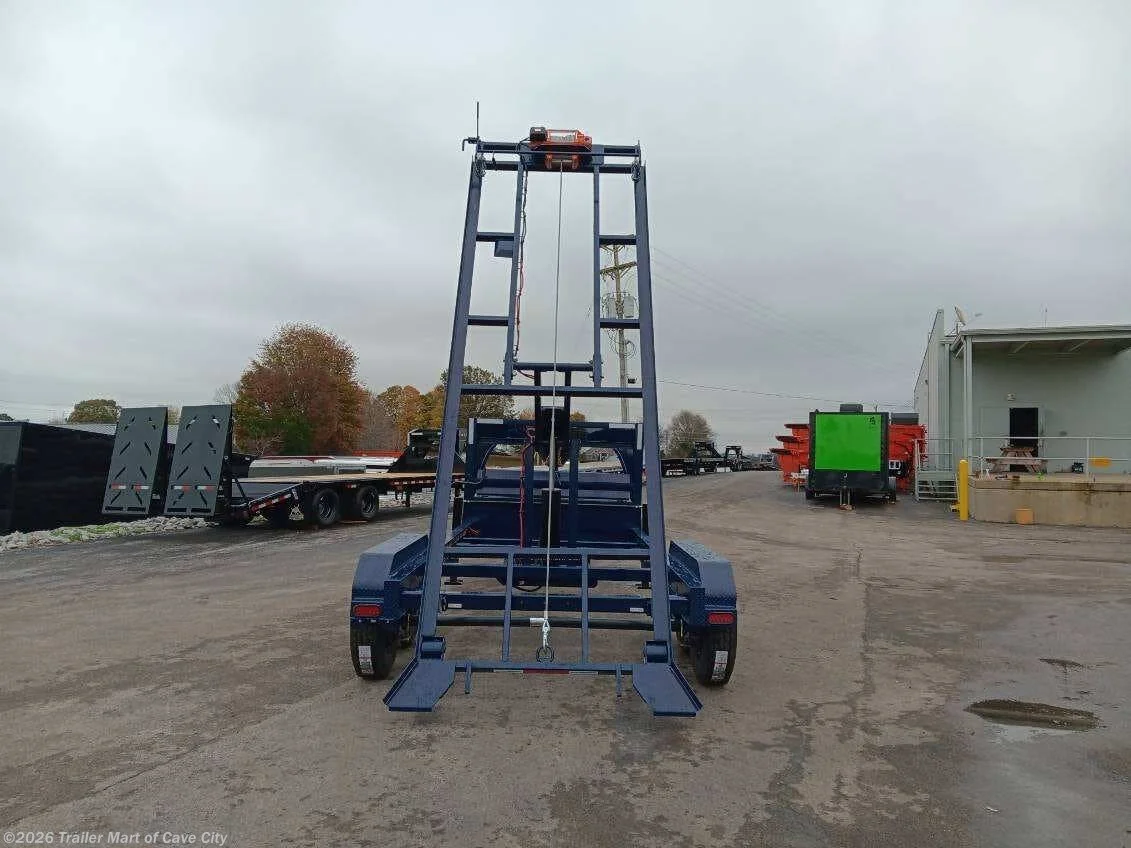

Hydraulic & Lift System

• Hydraulic – Power Up / Gravity Down

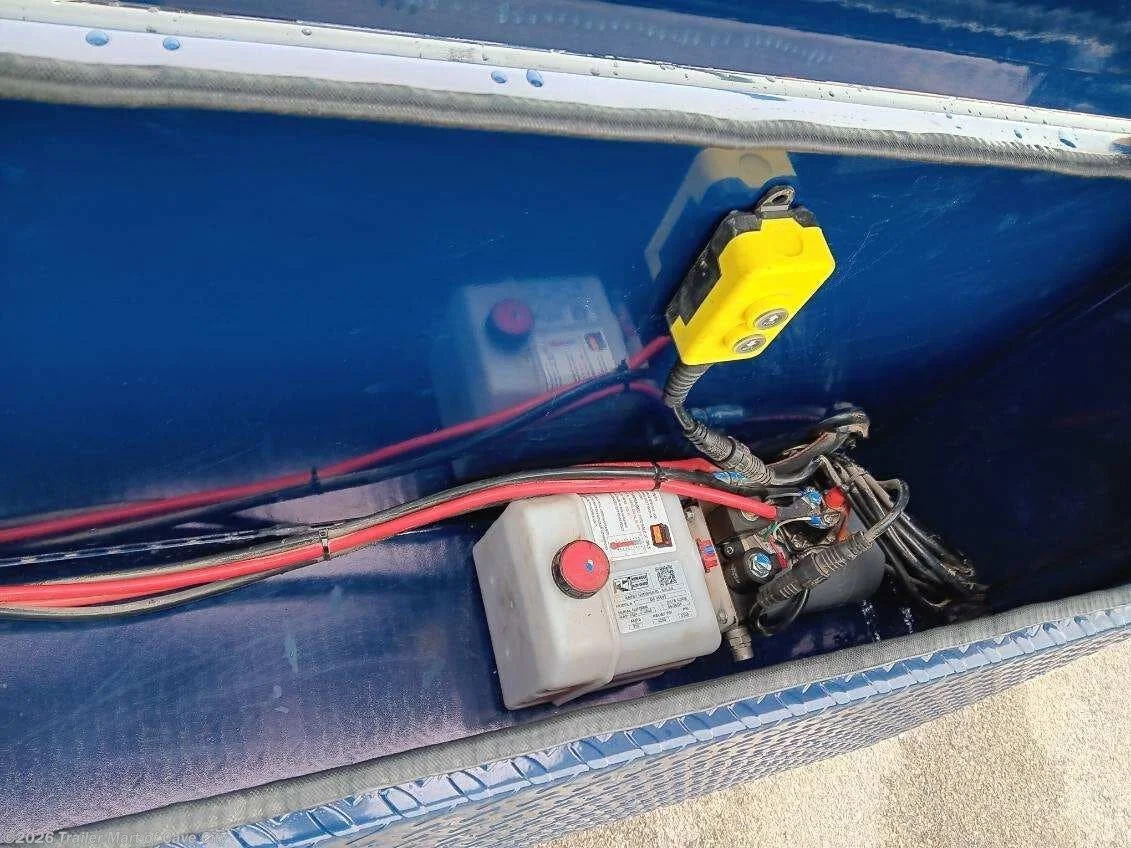

• KTI 12V Hydraulic Pump

• 14’ Control Cable

• 6” x 21” Single Push Cylinder

• 20,000 lb Hoist Capacity

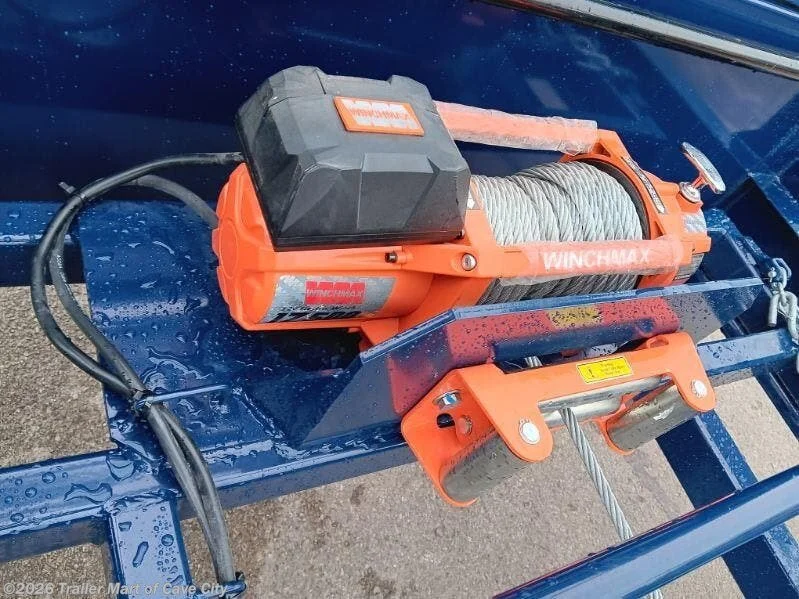

Winch System

• 17.5K Warrior Steel Cable Winch

• 12’ Control Cable

• Wireless Controller

Running Gear

Axles & Suspension

• (2) 7K Electric Brake EZ Lube Spring Axles

• Spring Suspension

• 8 on 6.5” Bolt Pattern

• 6-Year Spring Axle Warranty

Tires & Wheels

• ST235/80R16 Radial Tires

• Upgraded 14 Ply Rating

• 3,520 lb Rating Each

• 16” Black Mod Wheels

Electrical & Lighting

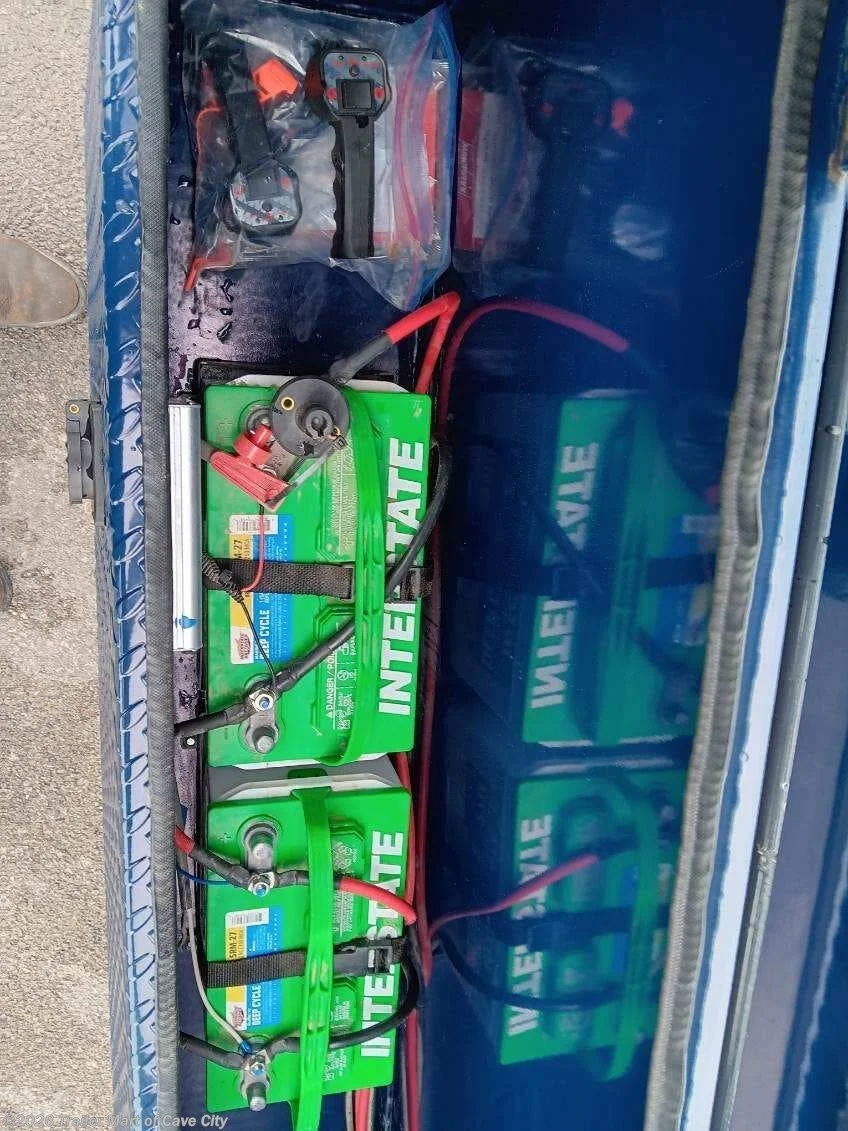

• (2) Interstate 27 Deep Cycle Batteries

• 110V Integrated Trickle Charger

• All-Weather 7-Way RV Wiring Harness

• Double Insulated Frame Wiring

• DOT Approved TecNiq LED Lights

• 3M DOT Compliant Reflective Tape

Warranty

• 6-Year Spring Axle Warranty

• 3-Year Frame Warranty

• 1-Year Parts Warranty
