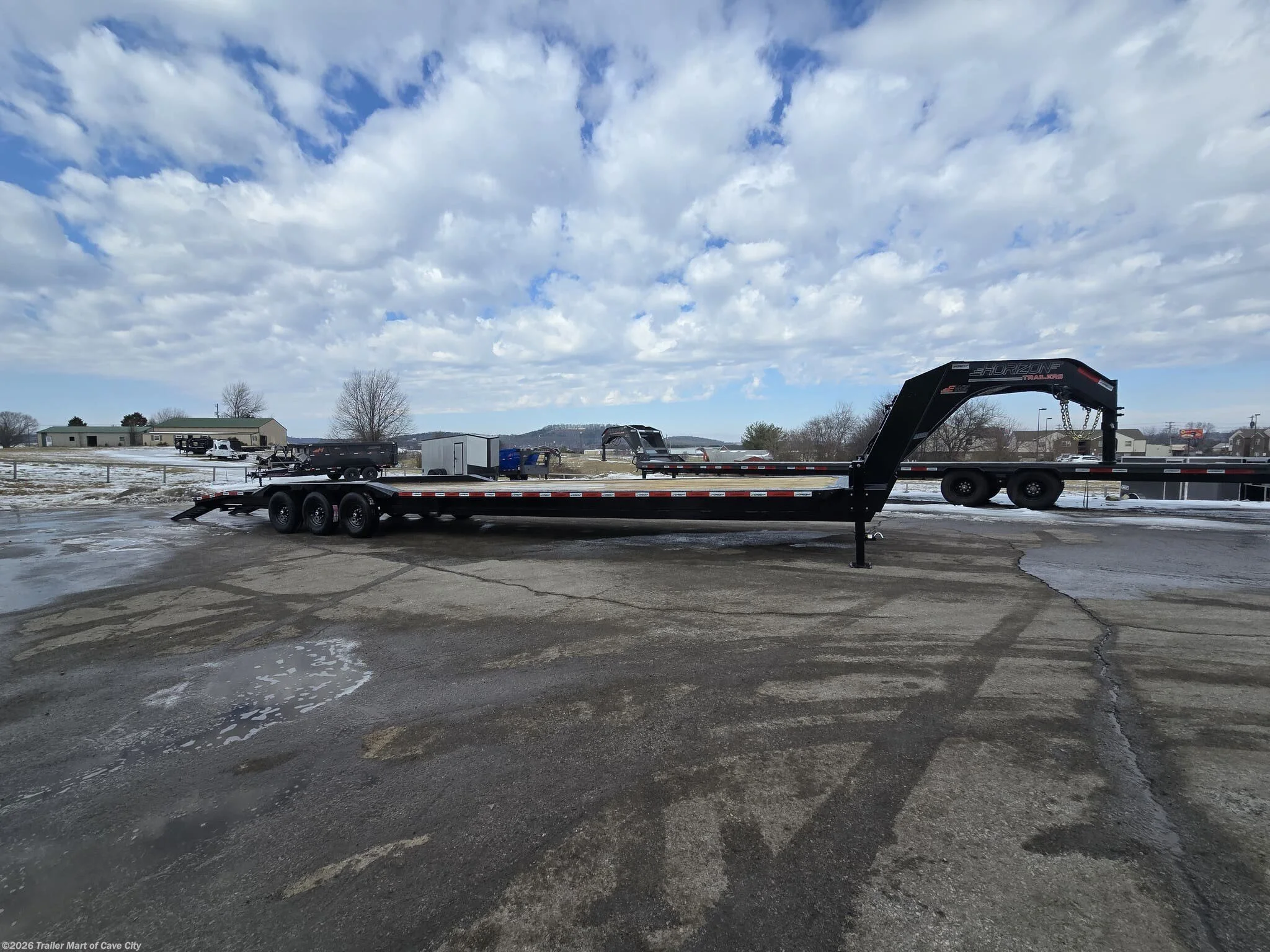

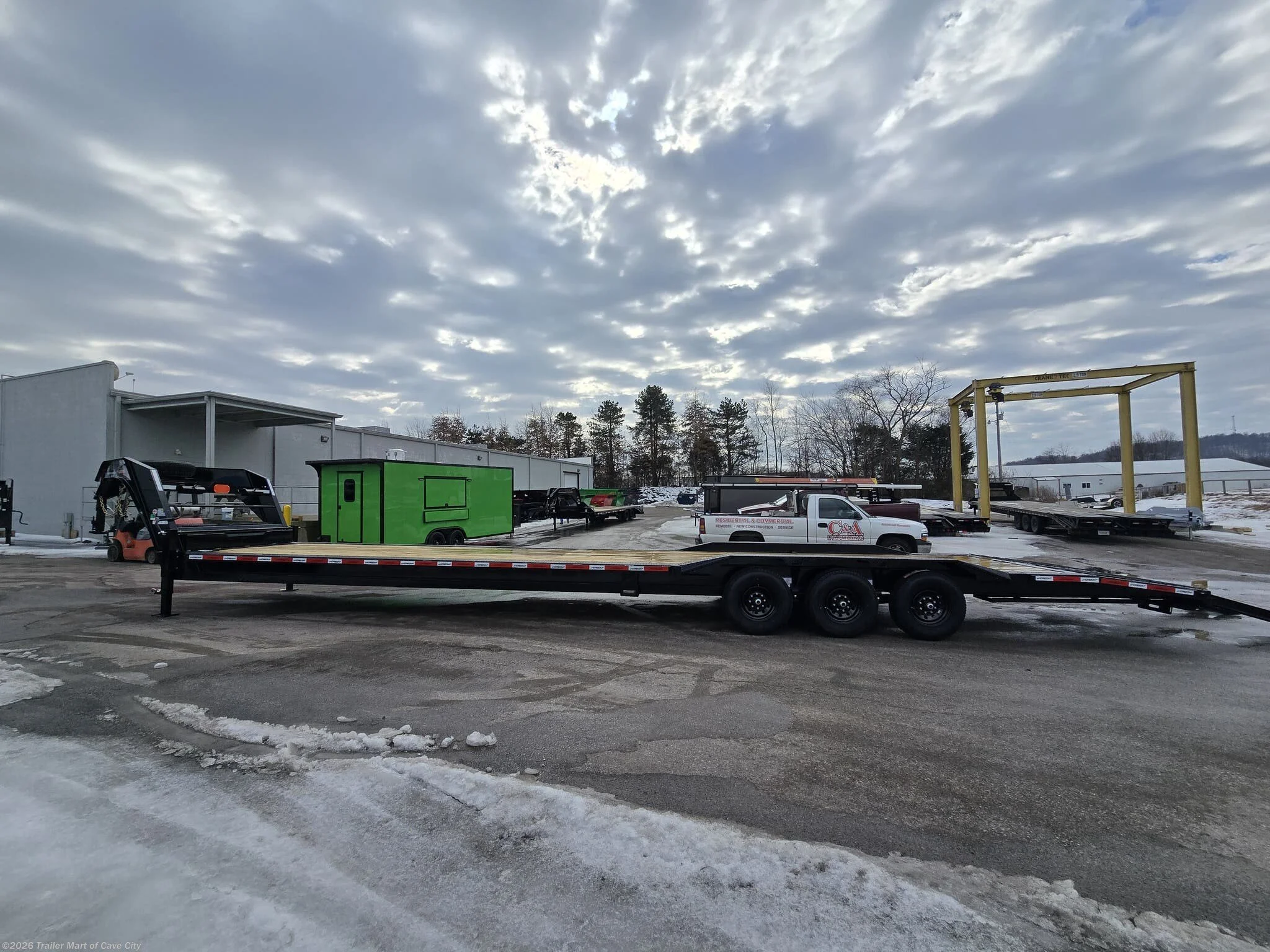

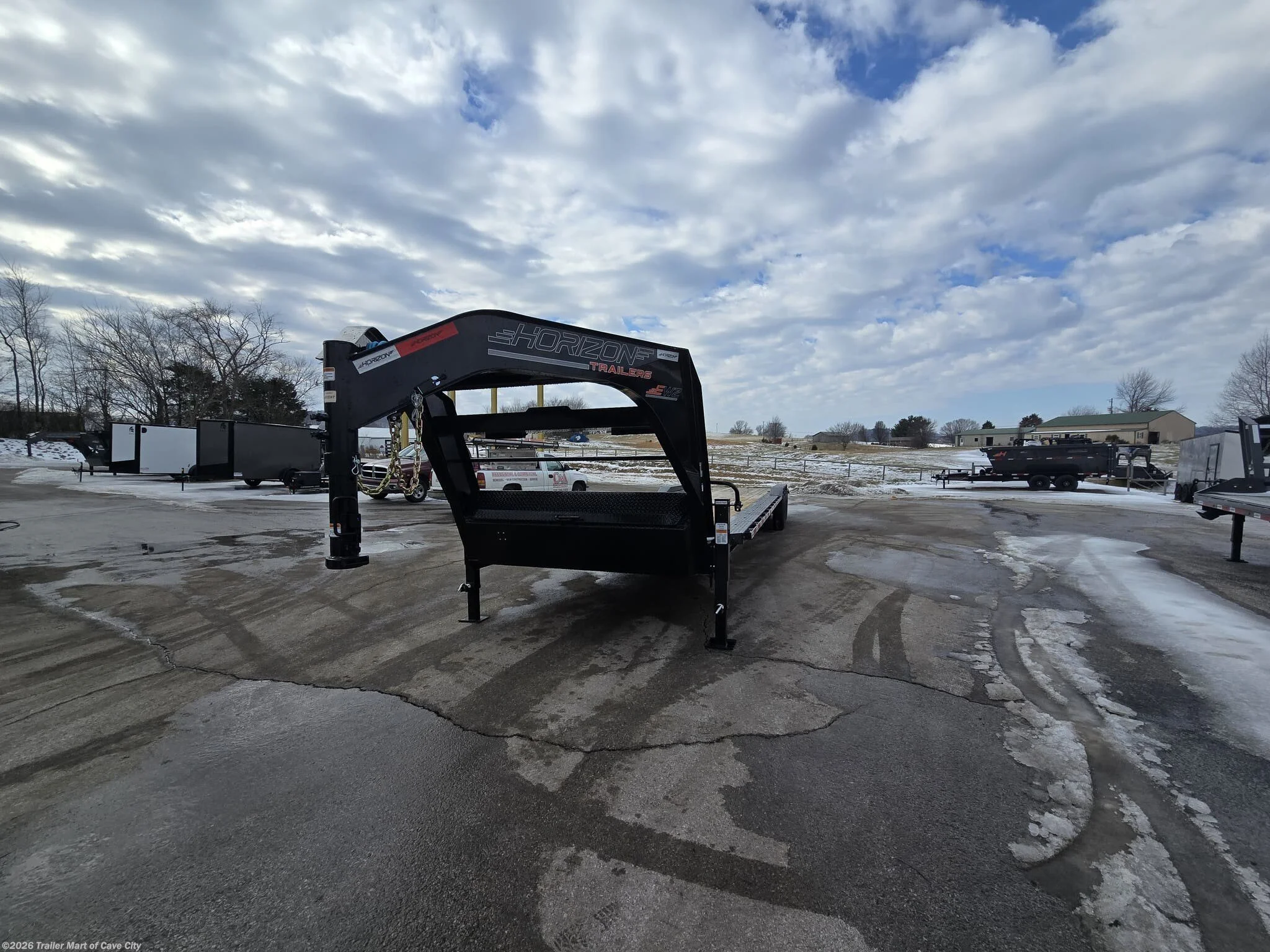

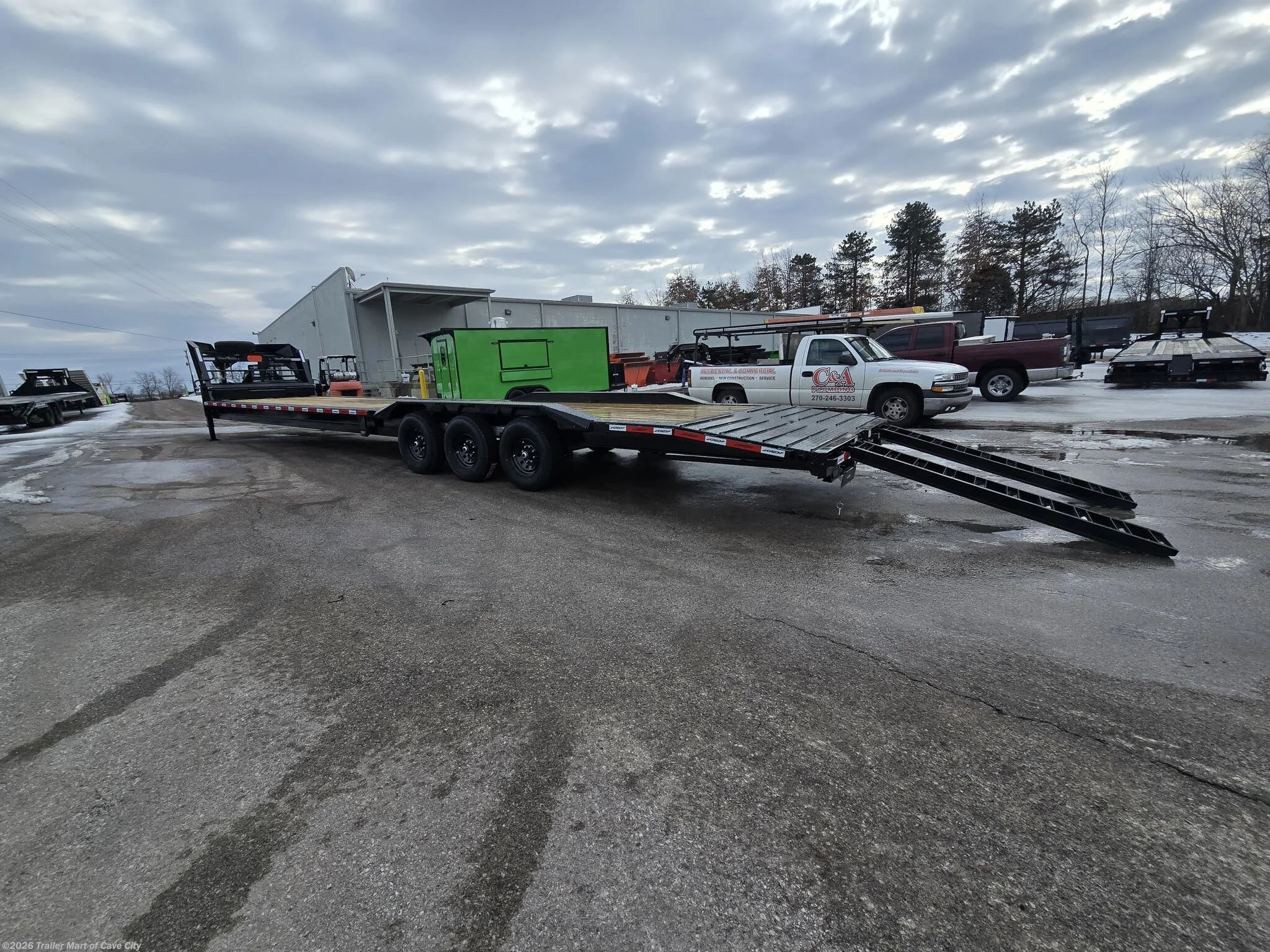

2026 Horizon Trailers EWZ 40'GN Triple Axle Drive Over Trailer

This 40’ Gooseneck Equipment Trailer delivers extended deck length for hauling multiple pieces of equipment, long materials, or vehicles. Built on a rugged 10” engineered I-beam frame with torque tube reinforcement (30’ and up), this trailer is designed for strength, stability, and long-term durability.

Featuring drive-over fenders, a 2’ dovetail, heavy-duty slide-in ramps, and multiple tie-down options, this trailer is ready to work.

Specifications

Condition: New
Exterior Color: Black
GVWR: 15,700 lb
Dry Weight: 6,390 lb
Payload Capacity: 9,310 lb
Hitch Type: Gooseneck

Dimensions

• Length: 40’

• Deck Width: 102”

• Deck Height: 30”

• Width Between Fenders: 83”

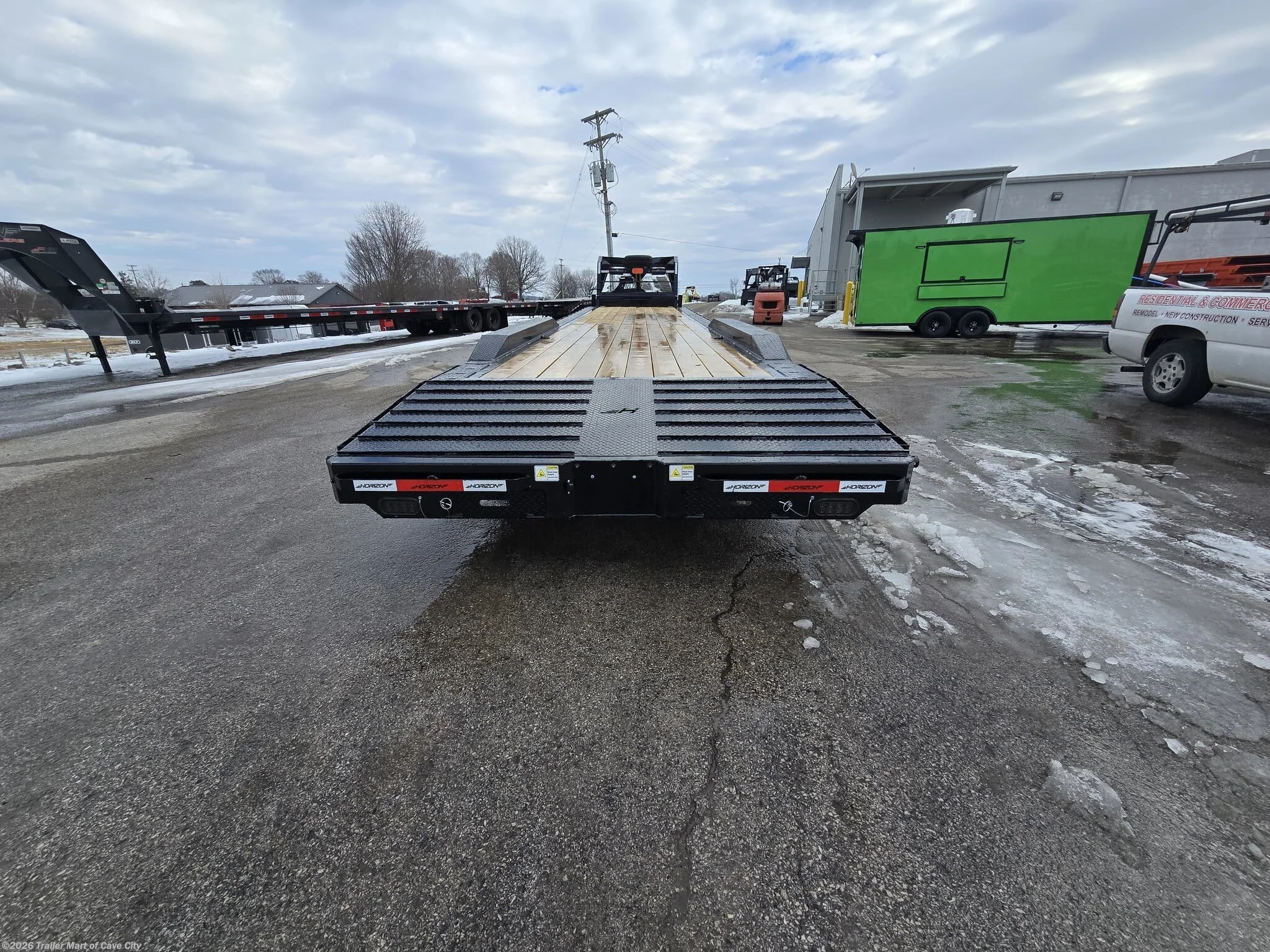

• Rear Dovetail: 2’

Tongue & Coupler

• 10” Engineered I-Beam Tongue

• 98” Length (from behind riser)

• 70” Height (from underneath neck)

• Adjustable 2-5/16” Gooseneck Coupler (30,000 lb rated)

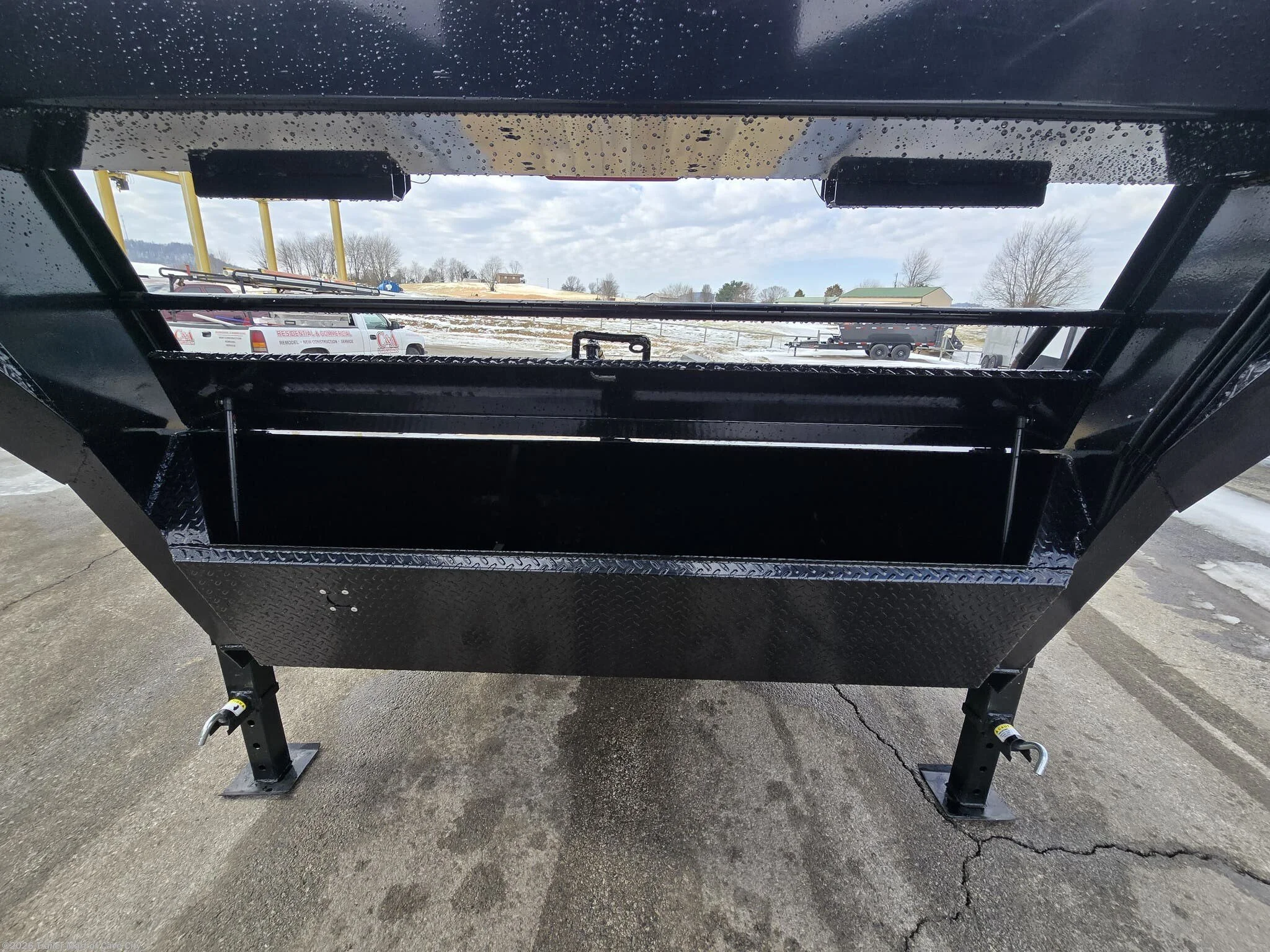

• Storage Box Behind Neck (Winch Ready)

• Weld-On Spare Tire Mount

Jacks & Safety

• (2) Side Wind Spring-Loaded Drop Jack Legs (12,000 lb each)

• Mega Lockable Toolbox

• 3/8” Grade 70 Safety Chains with Clevis Hooks (2)

• Brightway Group Electric Breakaway Kit

Frame & Construction

• 10” I-Beam Main Frame (15 lb/ft)

• 4” x 4” Angle Iron Bridge

• 4-1/2” Torque Tube (30’ and up)

• Steel Grit Blasted & Powder Coated Finish

Deck & Tie-Down Features

• Pine Lumber Flooring

• 3/16” Diamond Plate Deck Frame

• 3” Channel Crossmembers – 16” Spacing

• 2 D-Rings Between Fenders

• (2) Flush-Mount Galvanized Swivel D-Rings (Front)

• Tie-Down Slots Along Sides for Latch-On Fittings

• 2” x 3/8” Rub Rail

• Stake Pockets (1-5/8” x 3-5/8”) – 24” Spacing

• 2” x 10ga Pipe Spools – 24” Spacing

• 3/16” Diamond Plate Drive-Over Fenders

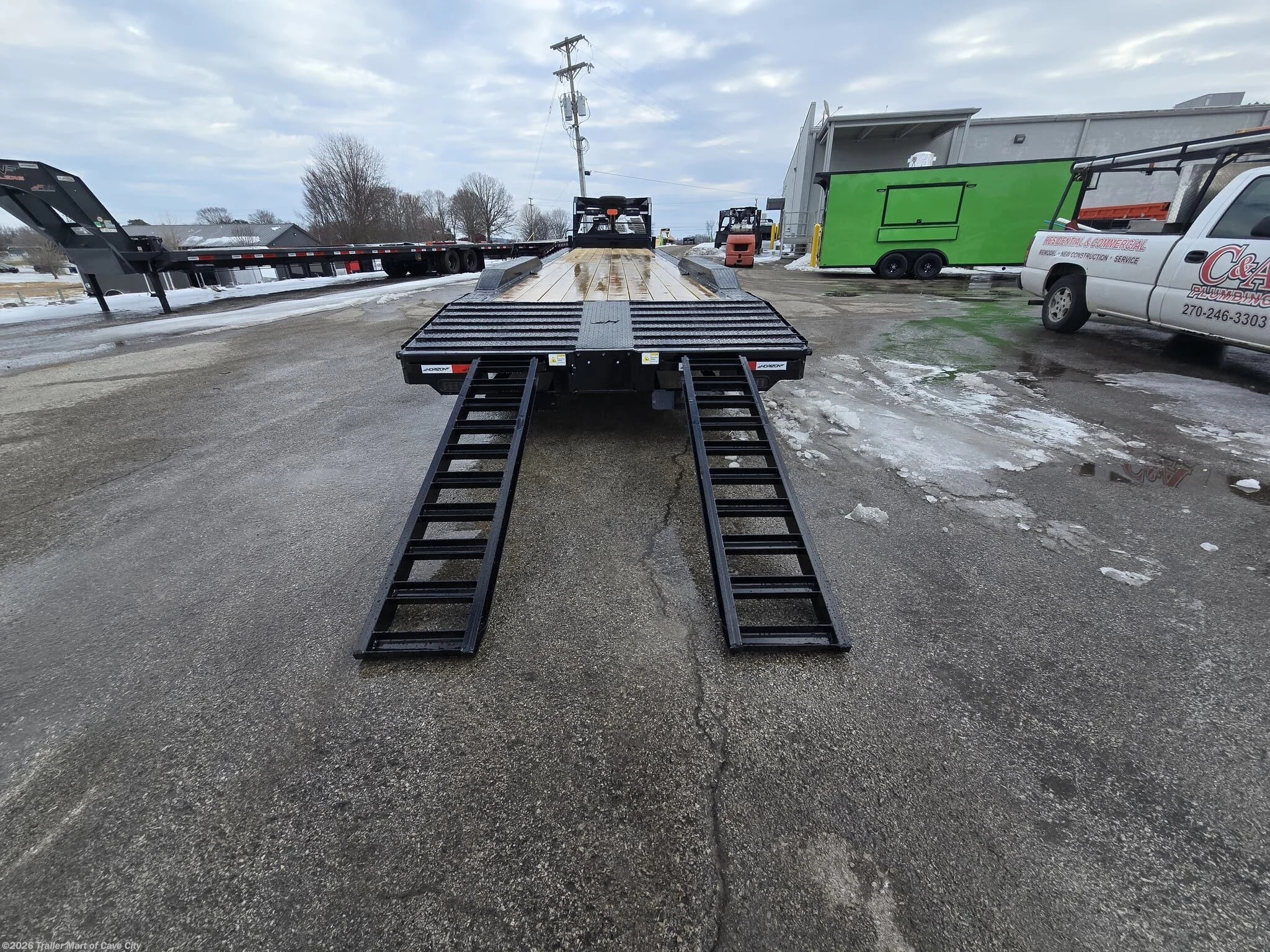

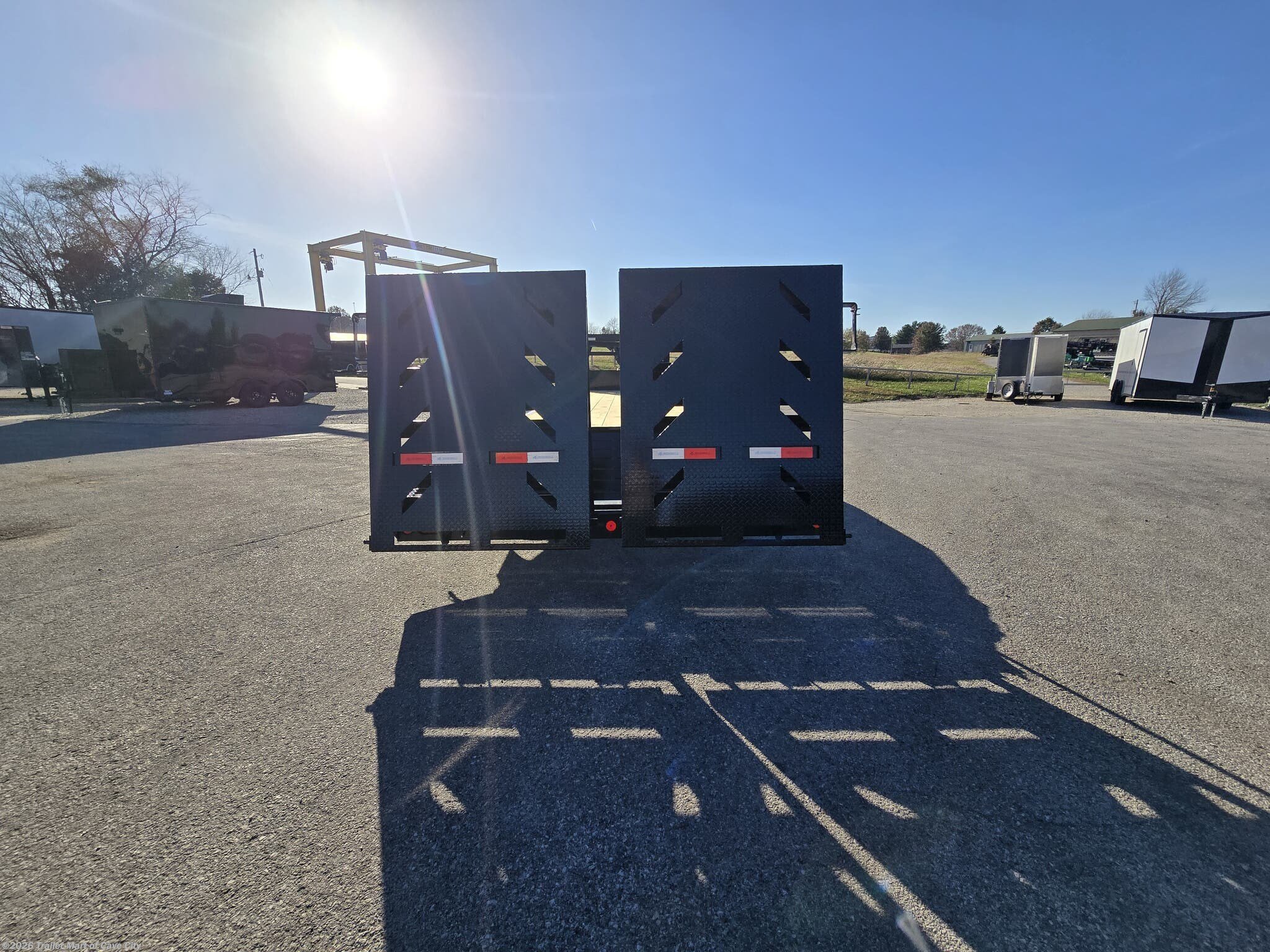

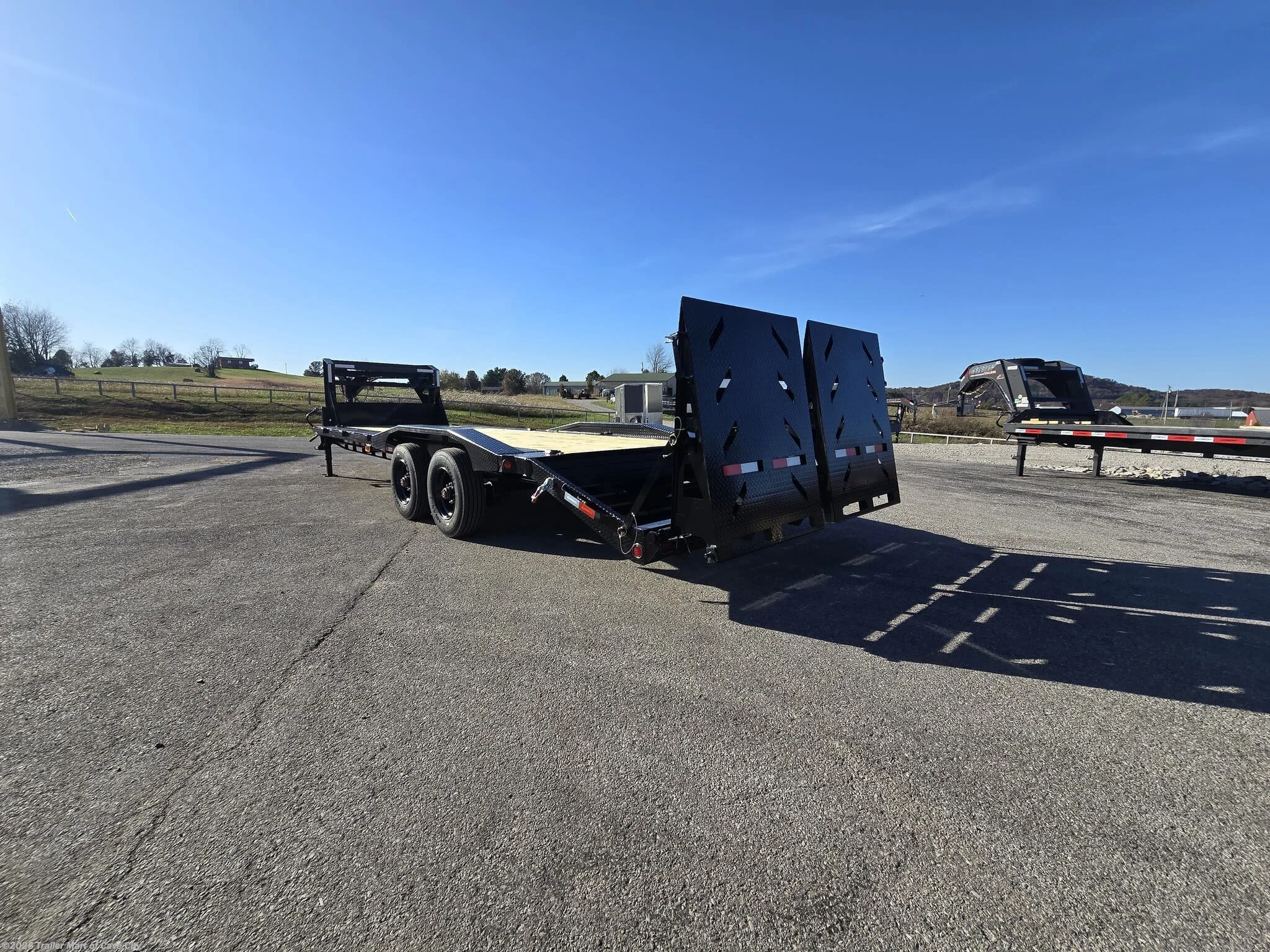

• Ramp Pockets with 5’6” Heavy-Duty Slide-In 4” Channel Ramps
  (7,000 lb wheel rating each over 12” contact area)

Running Gear

Axles & Suspension

• (3) 7K Electric Brake Auto-Adjust EZ Lube Spring Axles

• Spring Suspension

• 8 on 6.5” Bolt Pattern

• 5-Year Spring Axle Warranty

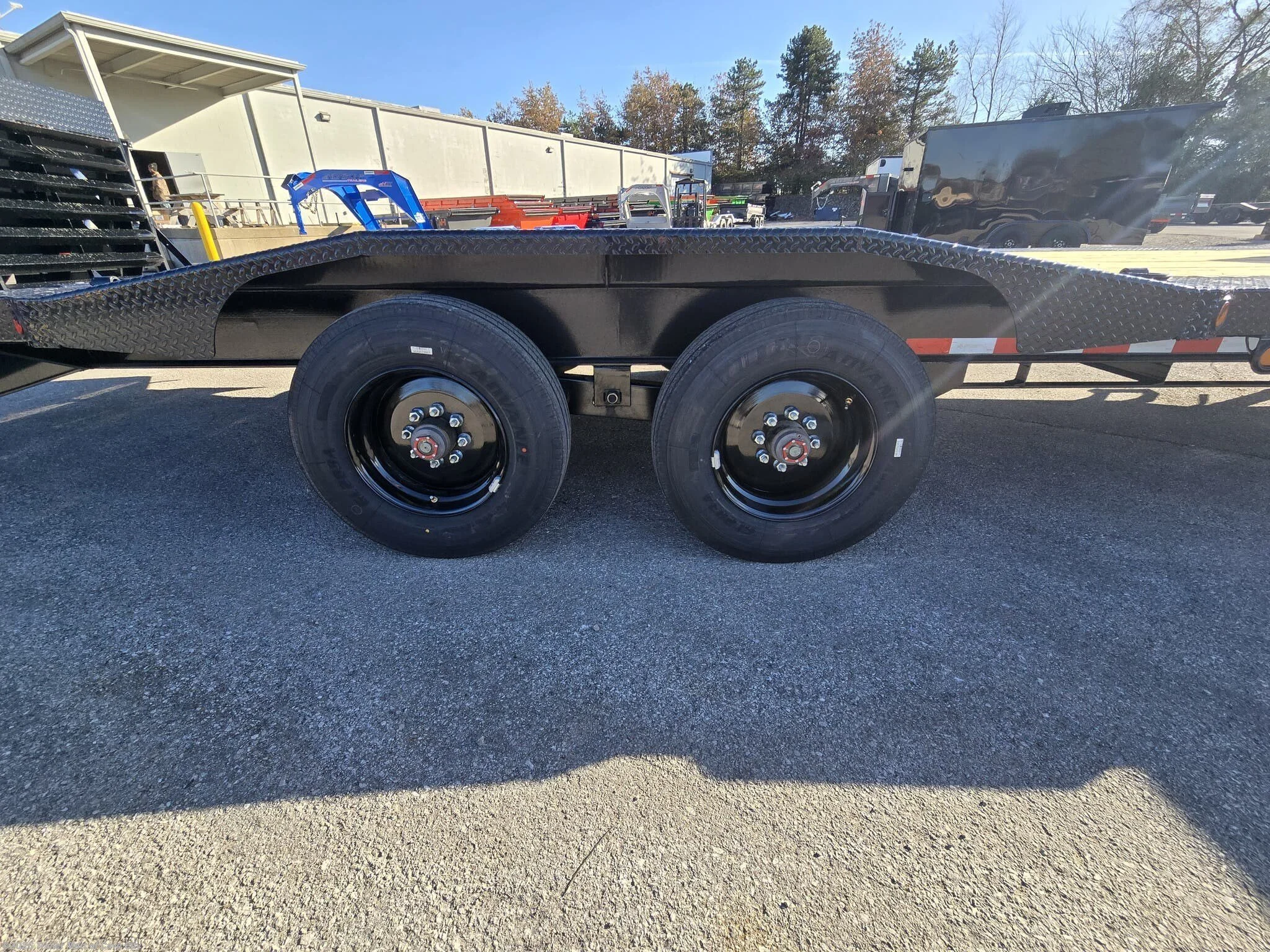

Tires & Wheels

• ST235/85R16 Radial Tires

• 10 Ply

• 3,520 lb Rating Each

• 16” Black Mod Wheels

Electrical & Lighting

• Brightway Group Electric Breakaway Kit

• All-Weather 7-Way RV Wiring Harness

• Double Insulated Frame Wiring

• DOT Approved TecNiq LED Lights

• 3M DOT Compliant Reflective Tape

Warranty

• 5-Year Spring Axle Warranty

• 3-Year Frame Warranty

• 1-Year Parts Warranty
